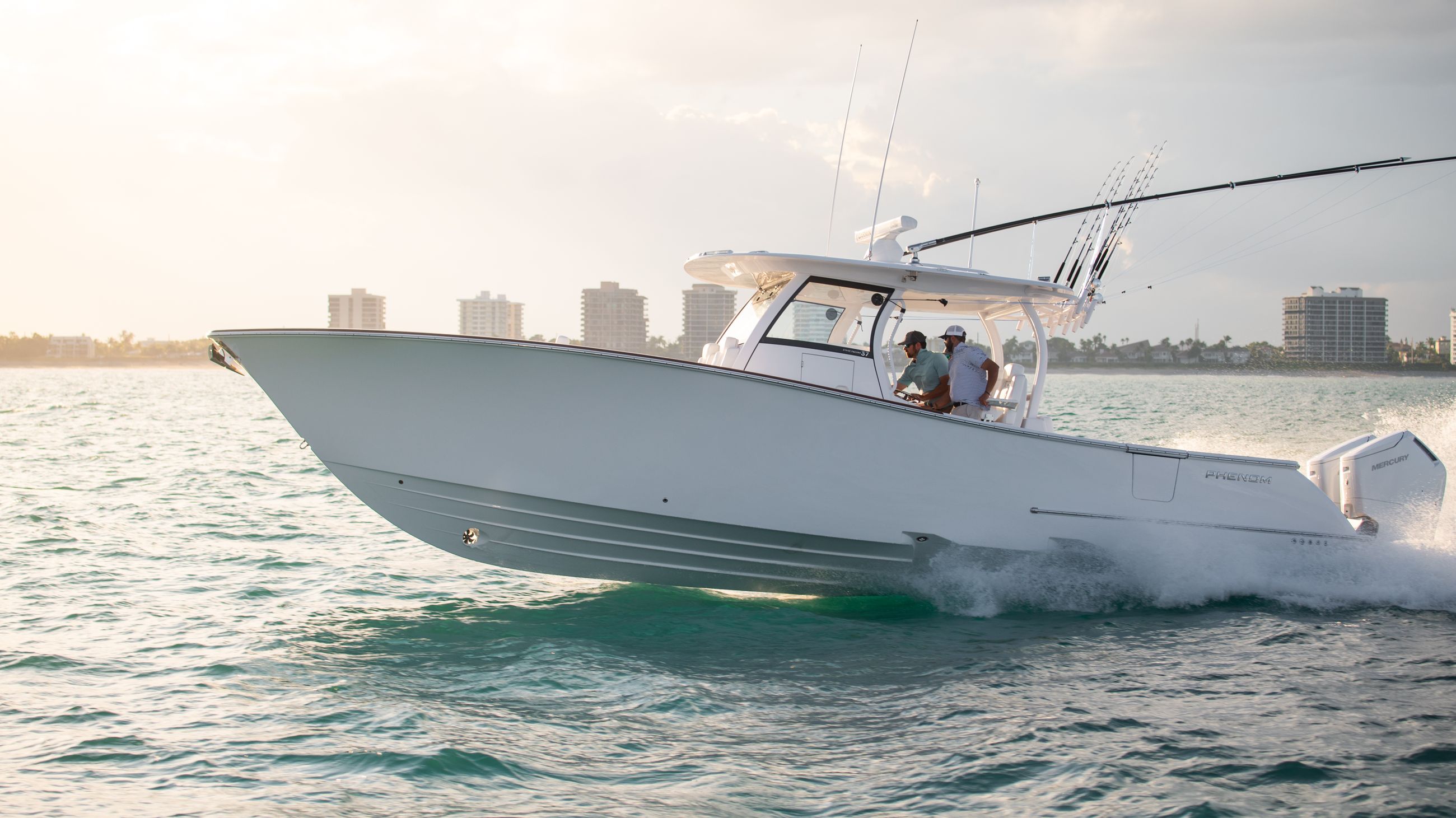

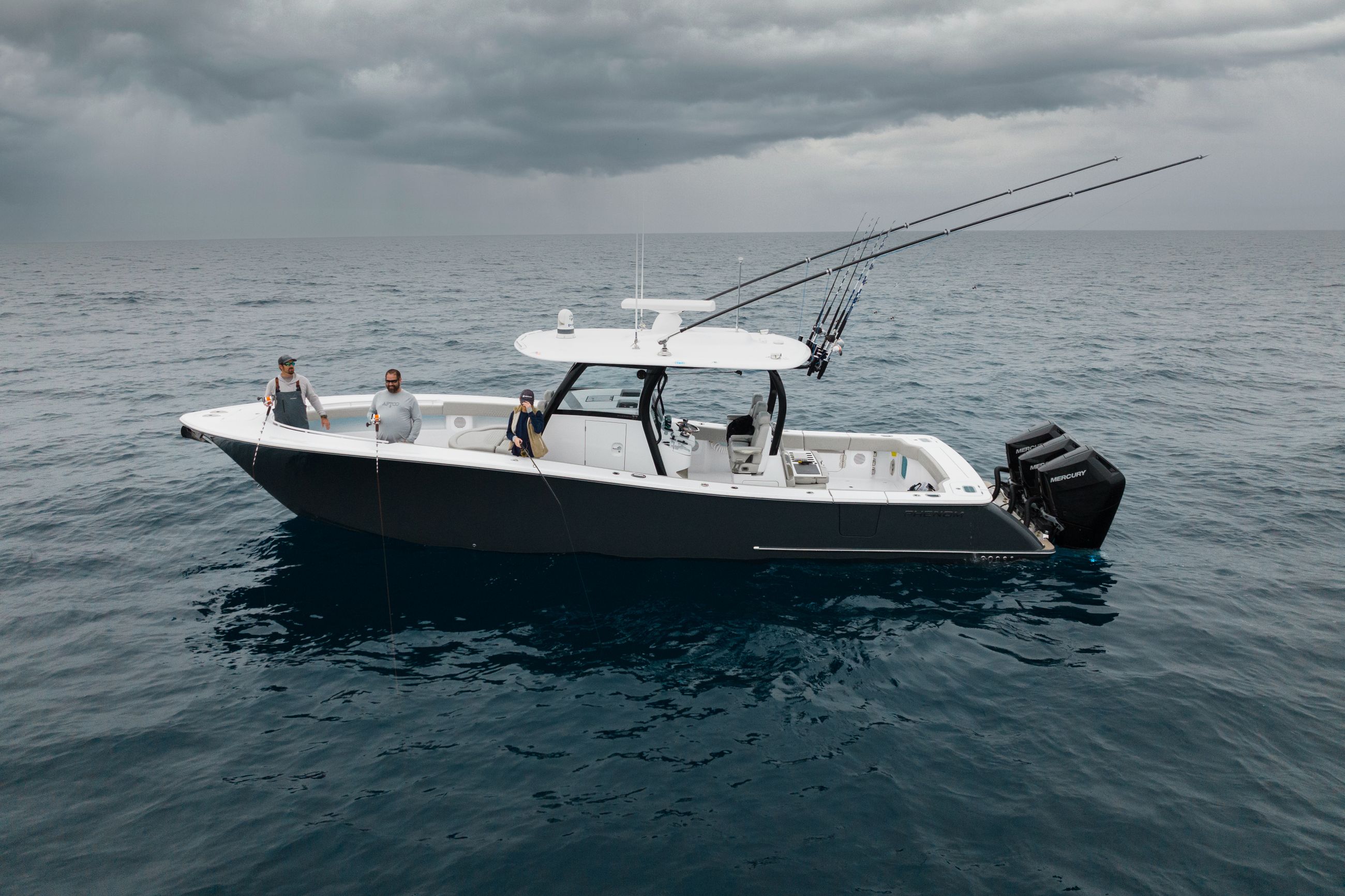

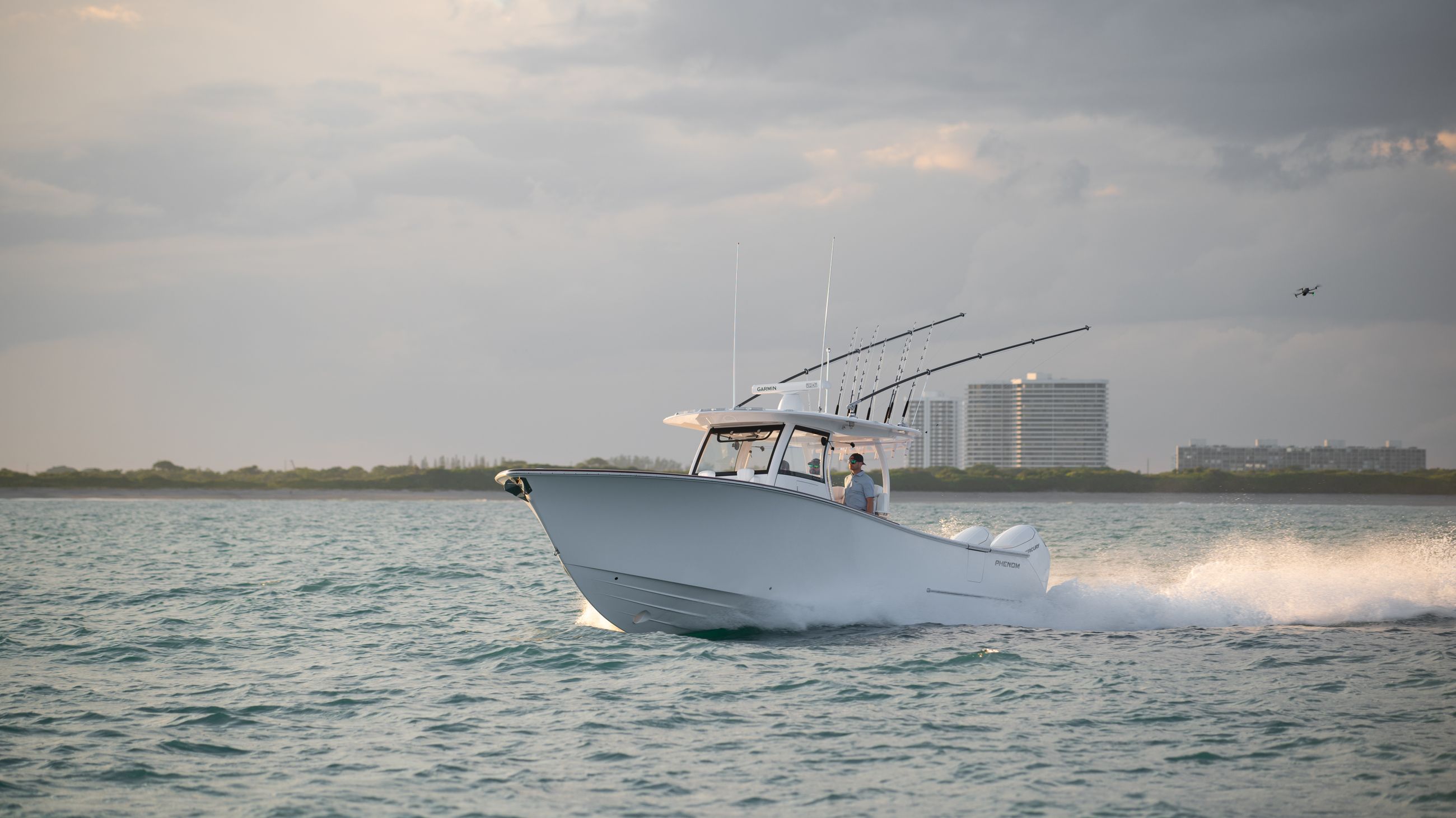

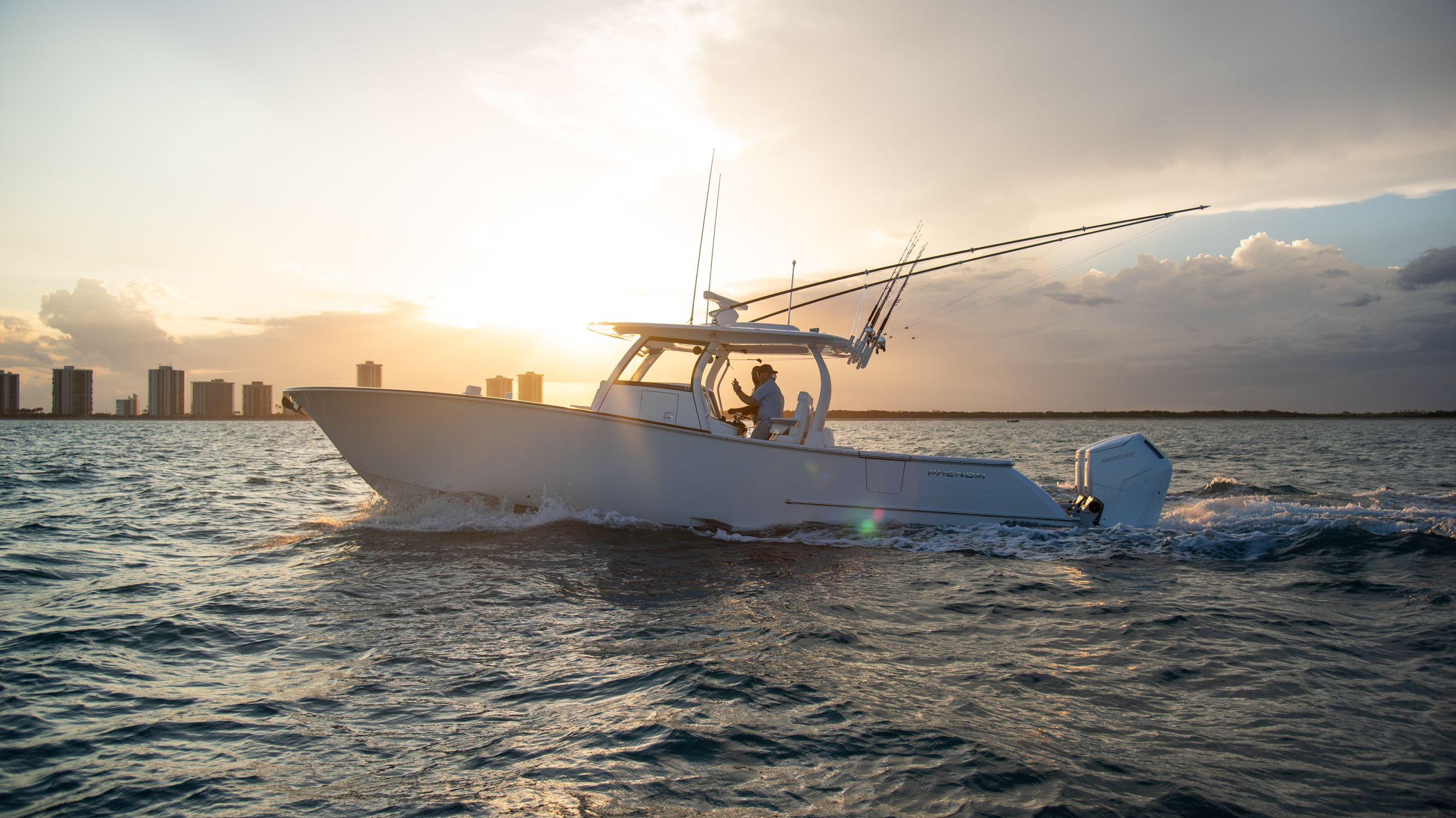

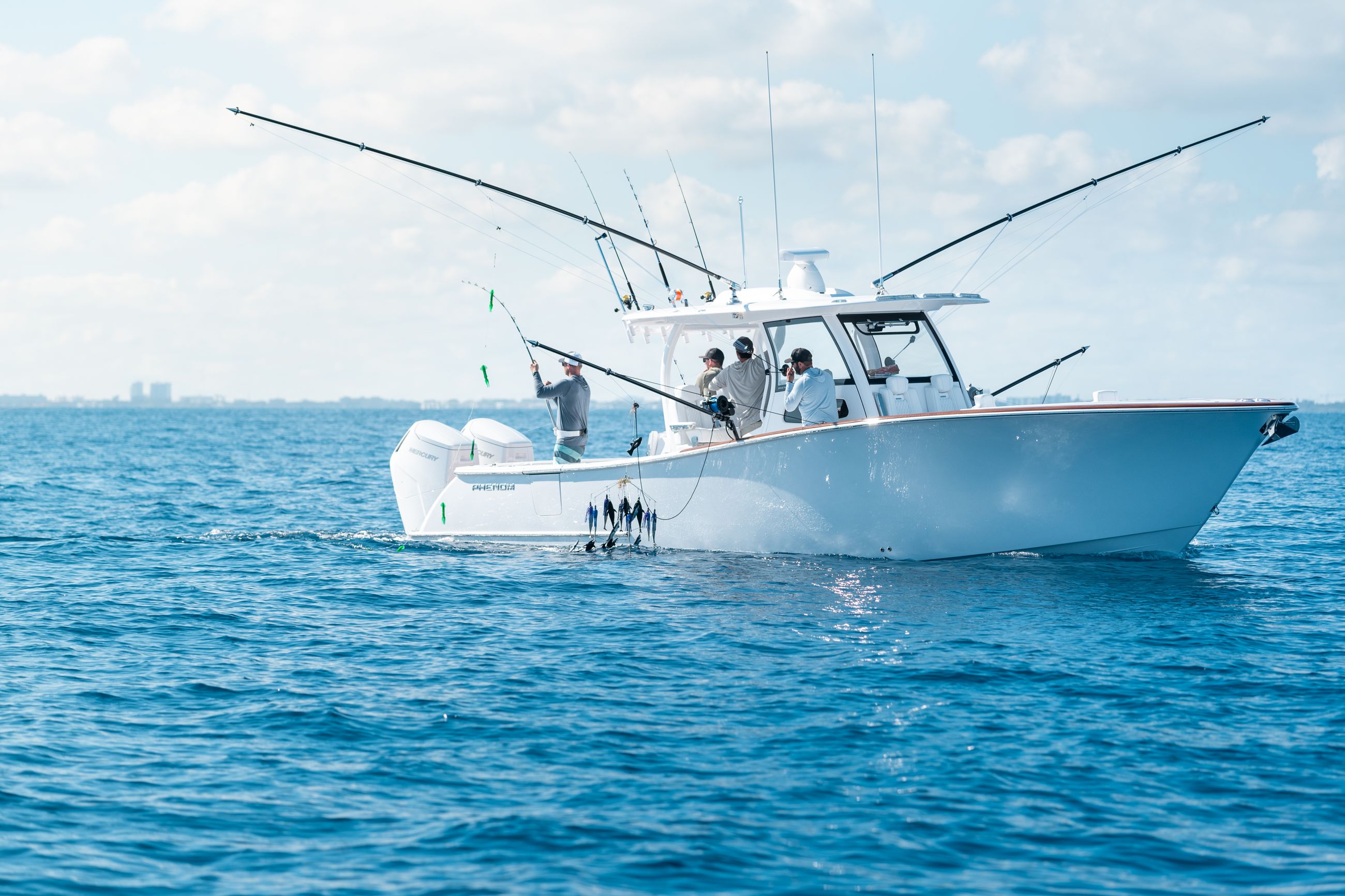

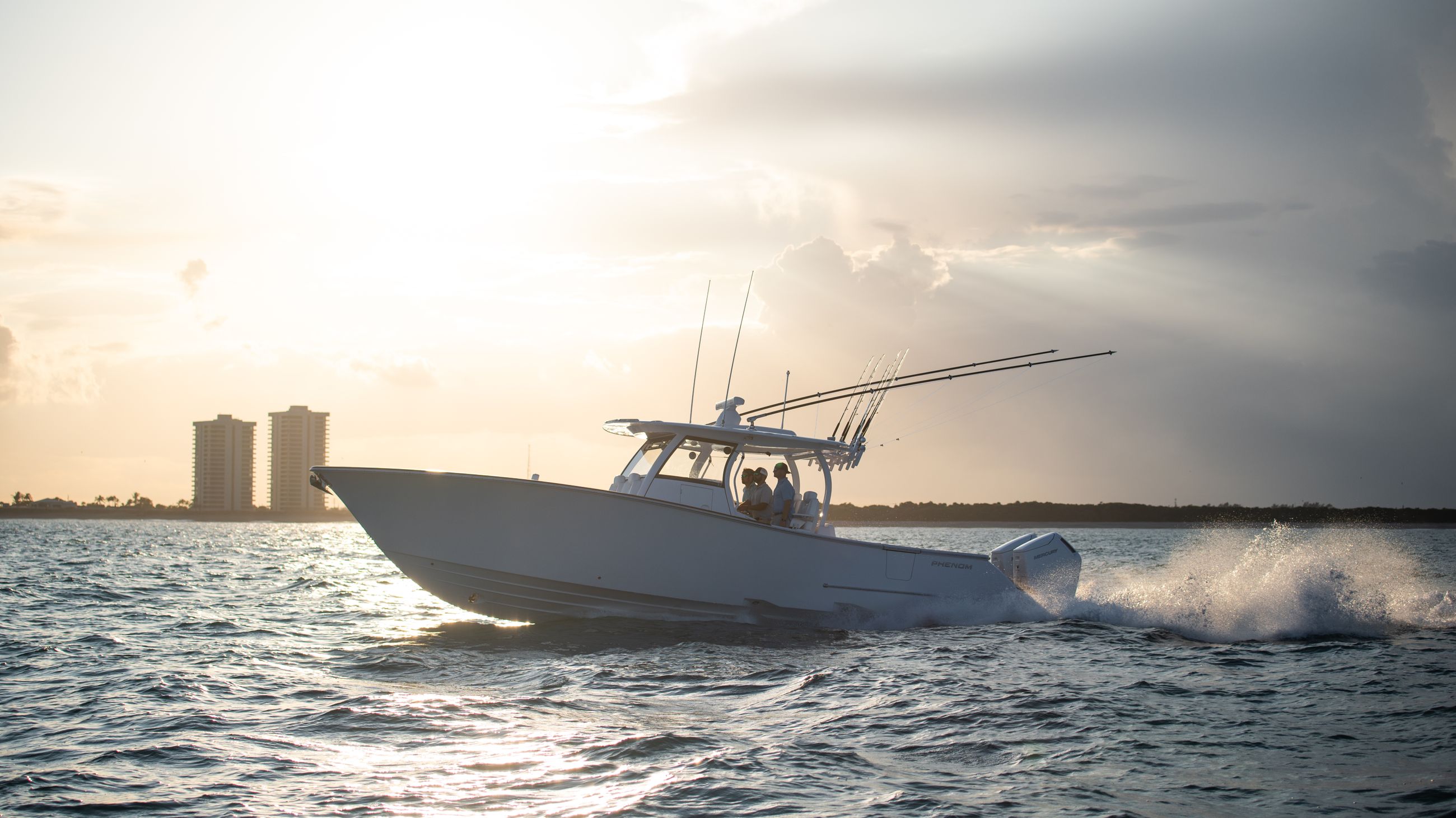

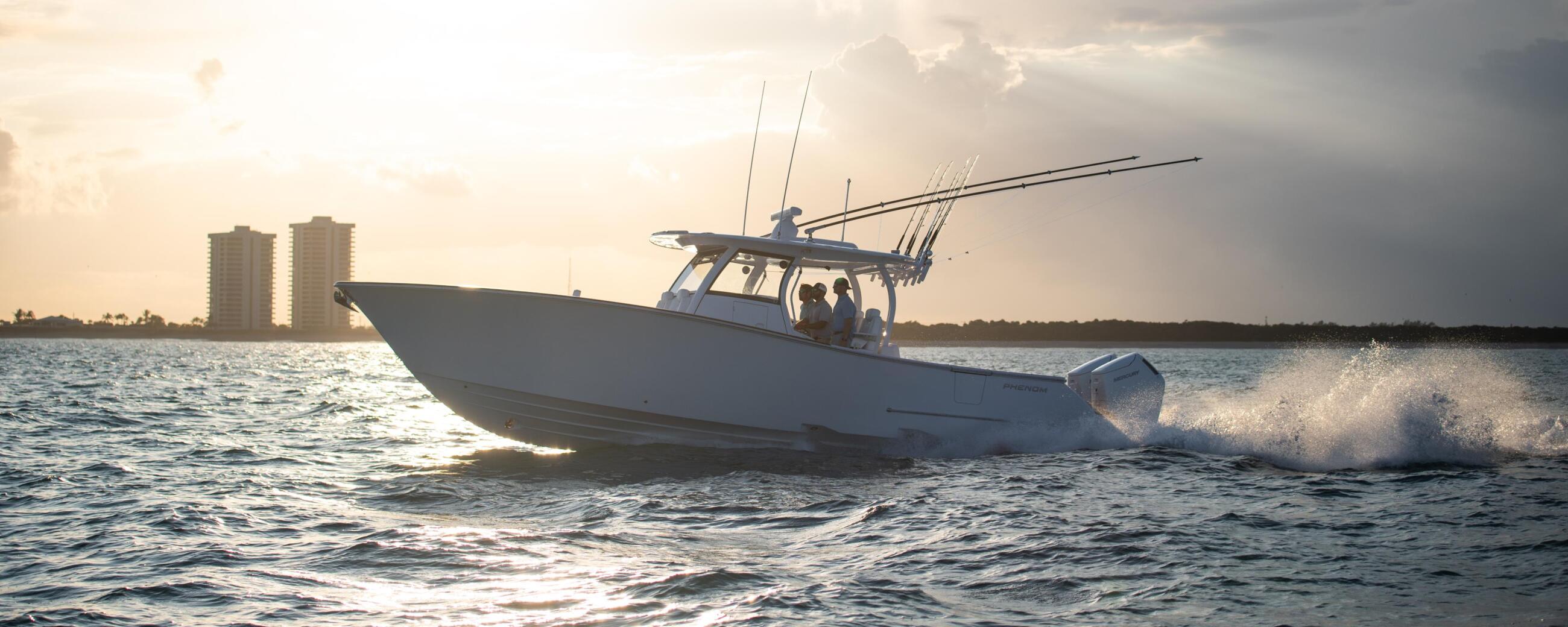

Phenom 37 Overview

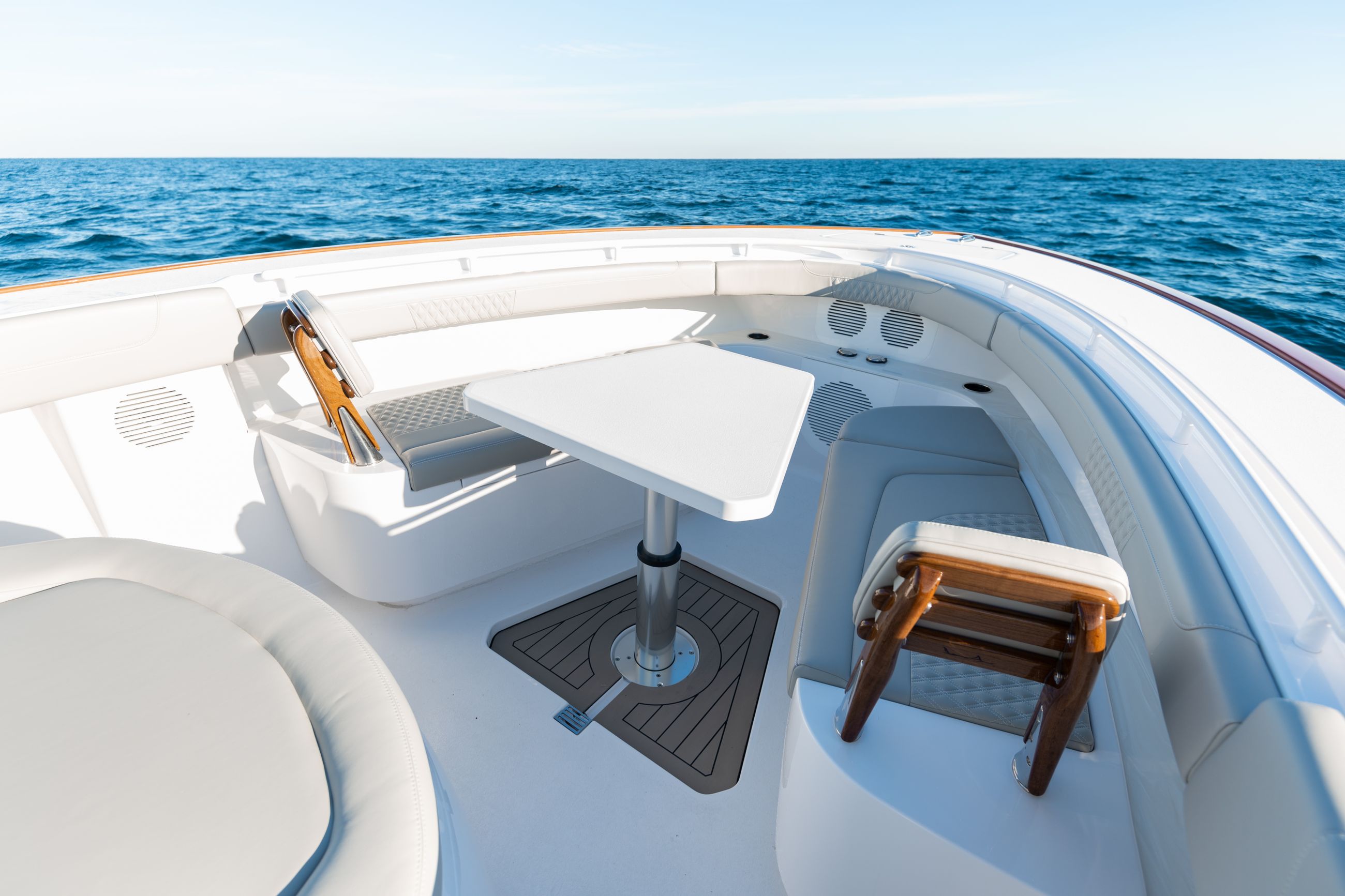

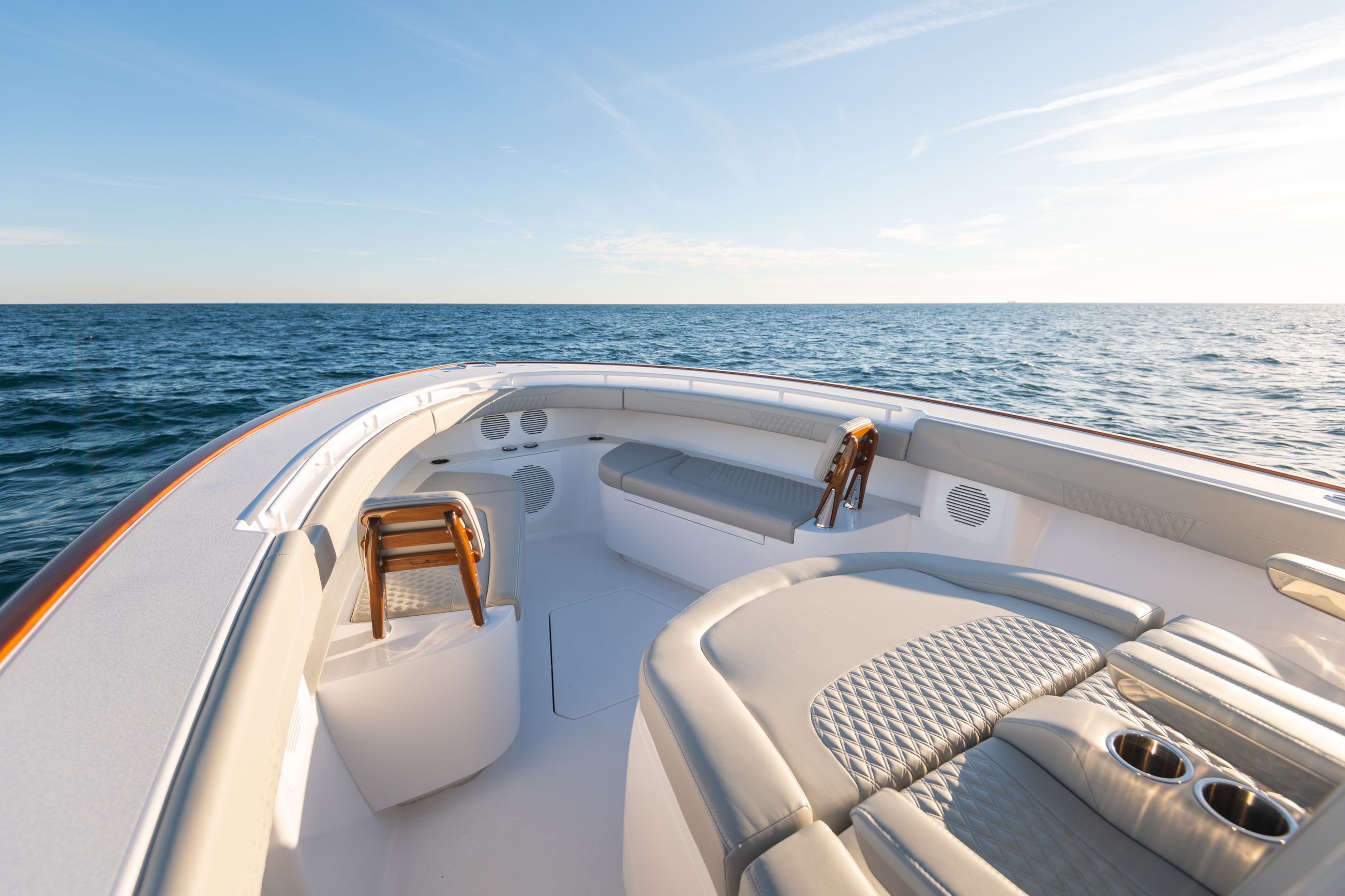

The Phenom 37 was designed to be a true offshore fishing machine. From day 1, the boat was designed to be a semi-custom performance center console. In the standard configuration, it features an Open Bow Layout and this gives this bow an incredible fishing deck. This boat also features our patent-pending automatic pressurized livewell system. The fishing pedigree of the Phenom 37 shows in every corner. Every aspect of it has been meticulously thought out and elevated to the next level.

Automatic Pressurized Aquarium Livewells

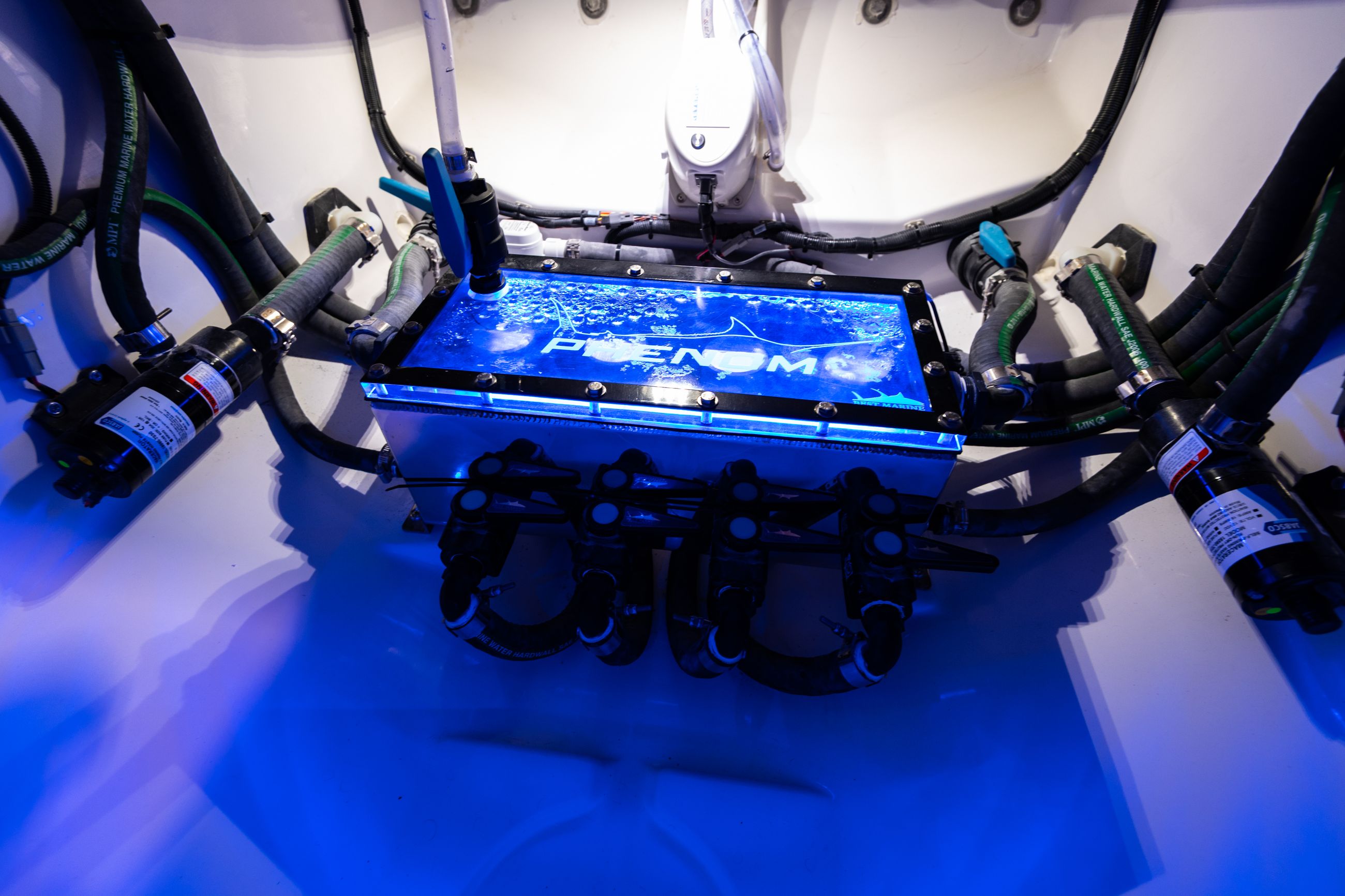

One of the most impressive innovations on this boat is our proprietary automatic pressurized aquarium livewells. Each tank has a capacity of 30 gallon or 113 liters and two pumps. All 4 pumps sit inside of a custom sea chest in the bilge and are fed by two High Speed Raw Water Pick Ups. They feature a large seamless front glass and a hybrid fiberglass lid with the Phenom logo. In the manual mode, the livewells operate how you would expect a normal pressurized livewell system to work. Water pours out of the back and is constantly showering your engines and swim platform with raw water. We set out to design a better livewell system and what we’ve come up with resolves all of the common issues you may have encountered.

Automatic Livewell Algorithms

The system is powered by the on-board EmpirBus digital system and our custom algorithms for what we call, Automatic mode. For starters, we’ve equipped each tank with a pressure sensor that feeds the pressurization status of the tank back to the EmpirBus. The system then calculates the power required to keep the tank right at 0.1 PSI at a rate of 10 times a second. Making the necessary adjustments to maintain that perfect equilibrium of pressure and over pressure. Too much pressure is what causes the water to overflow and too little pressure cause the bait to get slushed around which is the leading cause of descaling, red nose and dead baits.

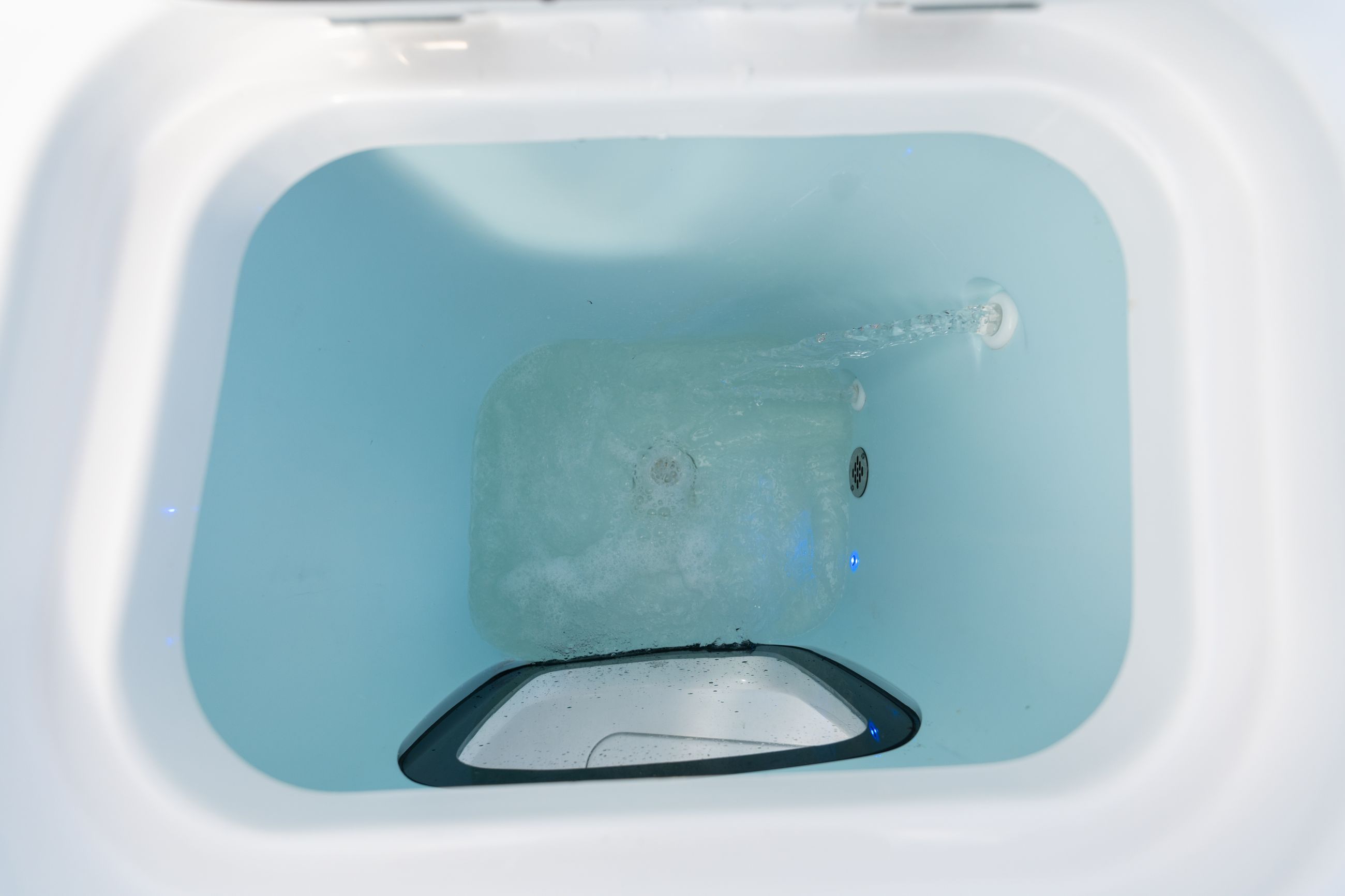

Livewell Fill Design

Another unique feature of these tanks is the location of the fills. The tank is designed to circulate the water constantly to eliminate ammonia and waste as quickly as possible. There are two fills located vertically that causes the water to create a swirling motion towards the drain. This ensures evenly clean water in the bait tank from top to bottom.

Built-In Redundancy

If you recall, there are 4 pumps in this system. Each livewell has a main pump and a backup pump. If the EmpirBus system detects a fault in the main pump, it will display an error message on the screen alerting you of the failure. The operator can then open the total access compartment to gain access to the valves. You must first close the valve on the main pump and open the valve on the backup pump. Agree to the prompt on the screen and resume normal operation of the livewell on the backup pump. This redundancy is critical offshore or in a tournament scenario to ensure you don’t lose your bait to a pump failure.

Versatility of Use

Lastly, we know that not every trip requires pressurized livewells so we also designed a short standpipe for partial fills, ideal for keeping shrimp, crabs or lobsters. As well as the built-in plug to utilize the tanks as a cooler.

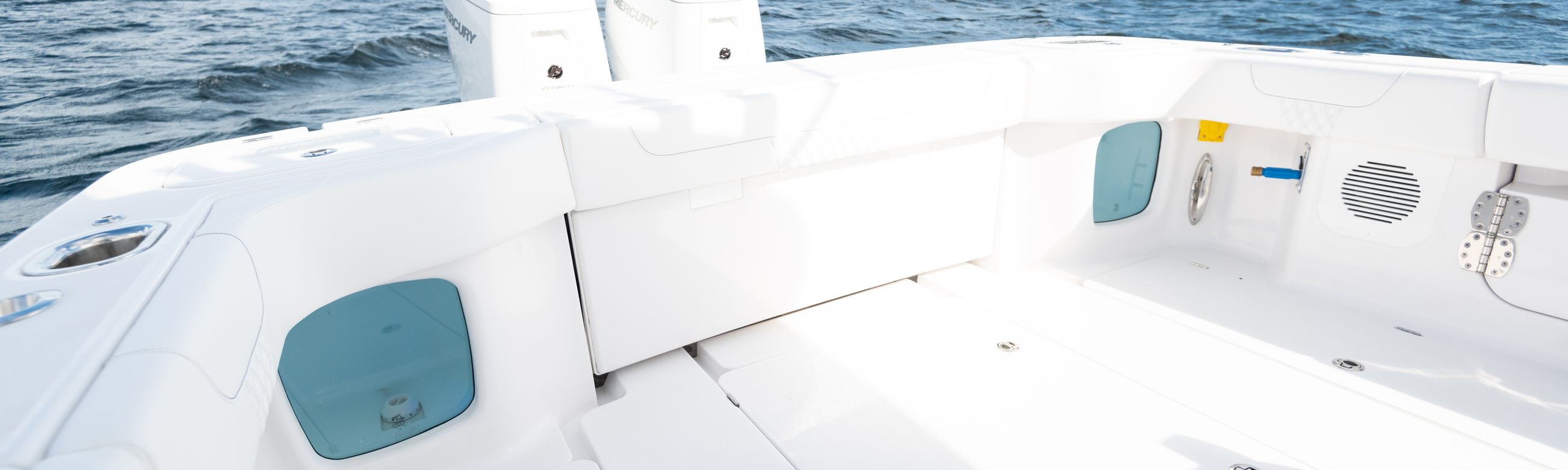

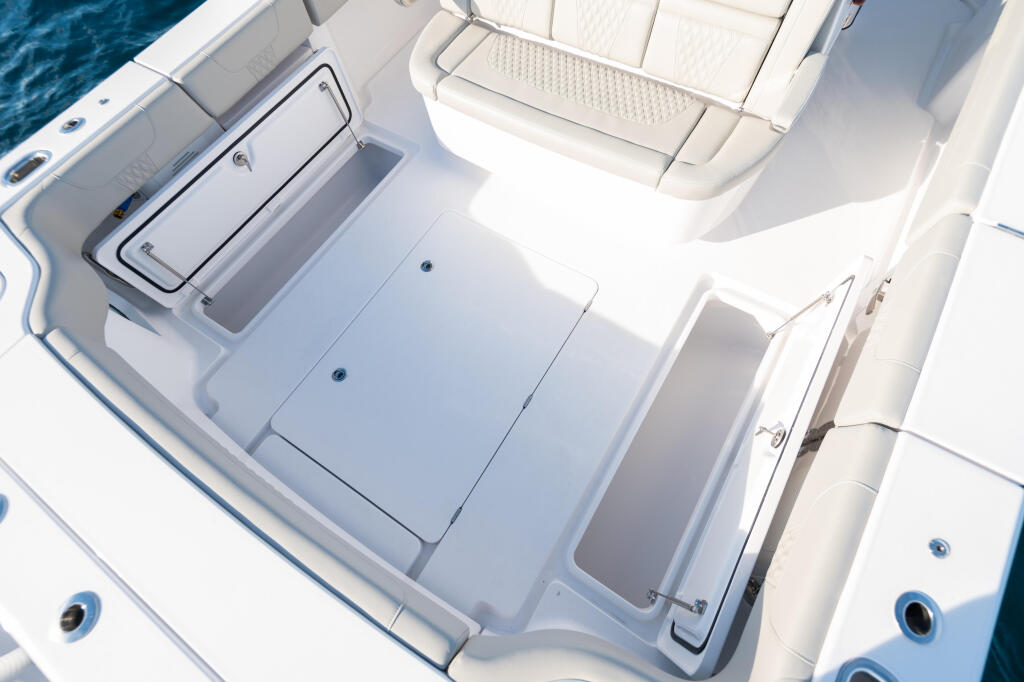

Stern 290-Quart Macerated In-Deck Fish Boxes

There are (2) 290-Quart Macerated In-Deck Fish Boxes at the rear of the boat. Notice the detail on the underside of the lid for extra insulation. The inner part of the box is built into the stringer of the boat and has over 4 inches of insulation all the way around.

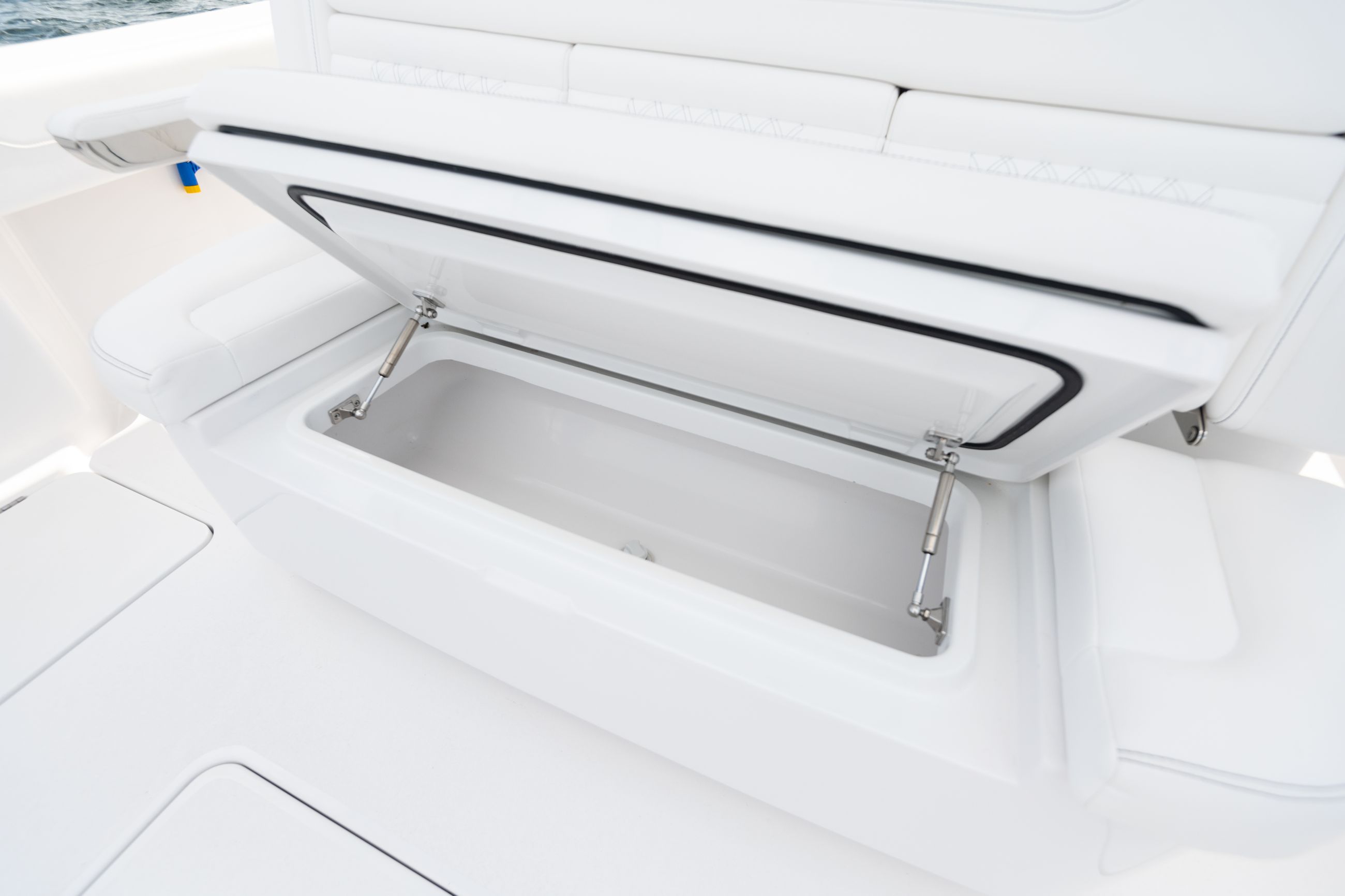

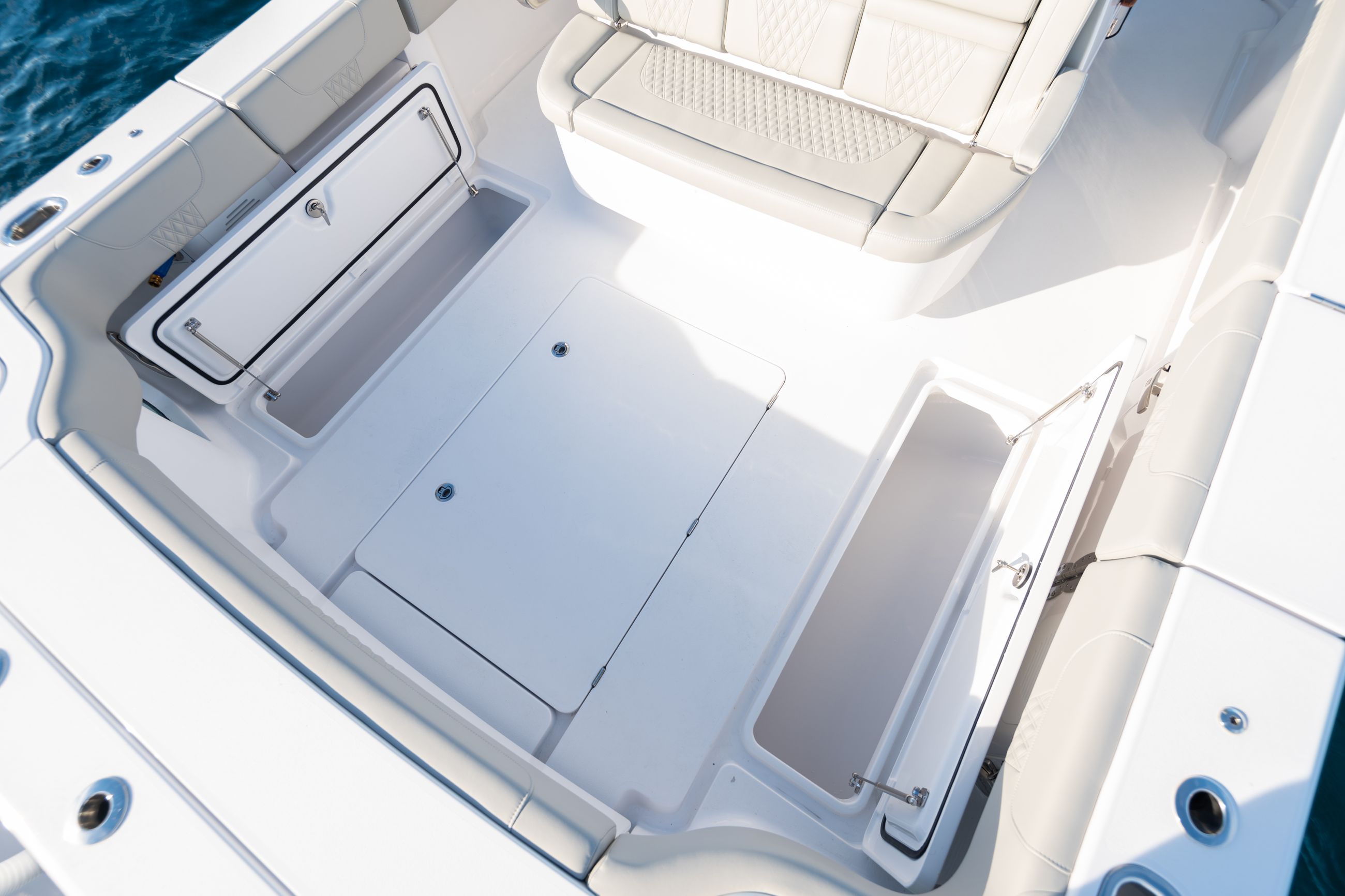

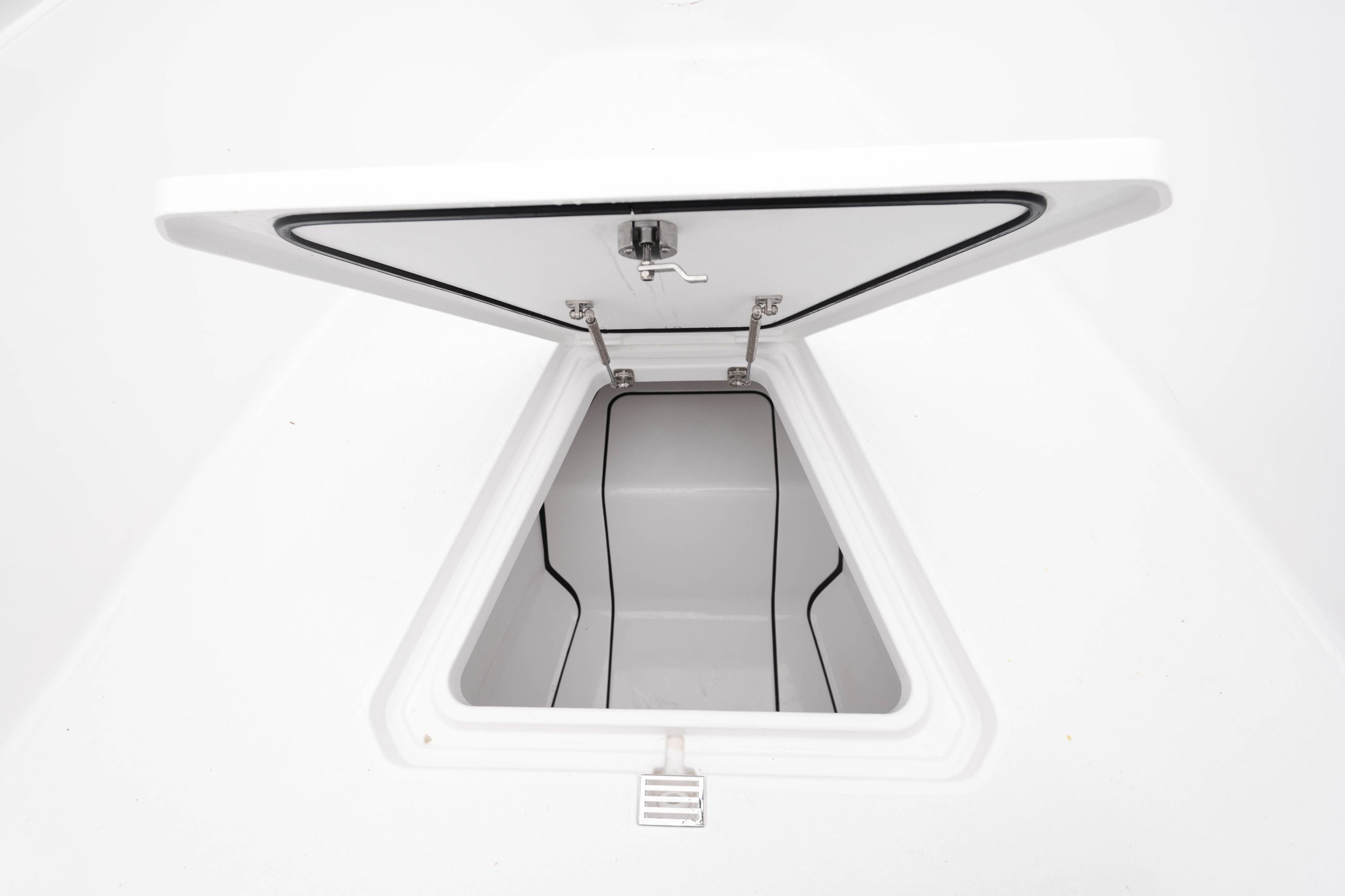

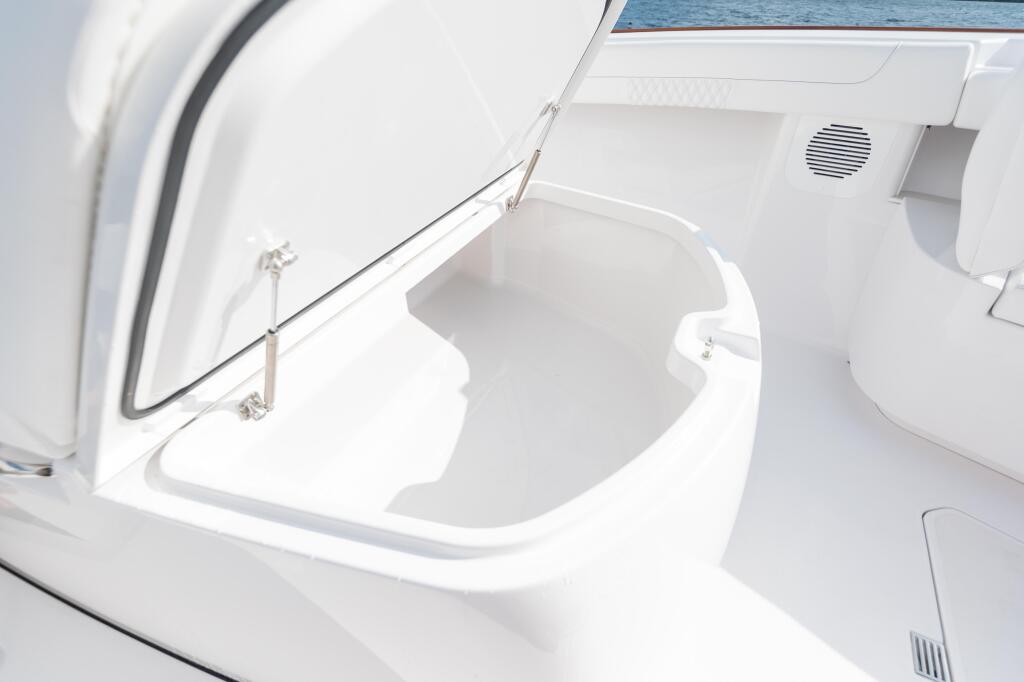

Mid-ship 220-Quart In-Deck Storage Boxes

Mid-ship, there are (2) 220-Quart In-Deck Storage Boxes. The extra-large lids make it a breeze to load items in.

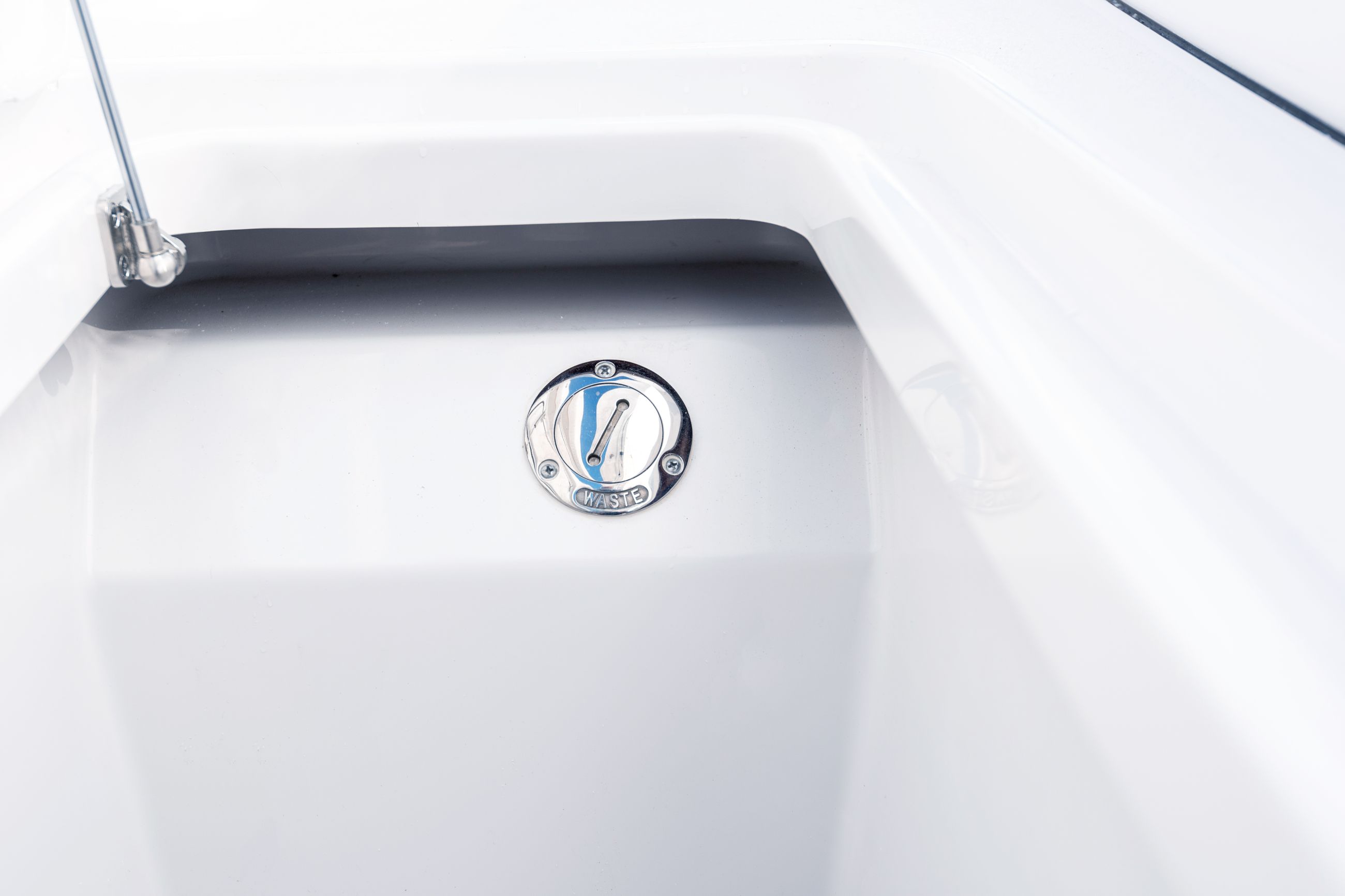

Toilet Pump-Out Fitting

On the port side box, you will find the fitting for the overboard toilet pump-out on the designed landing inside of the box.

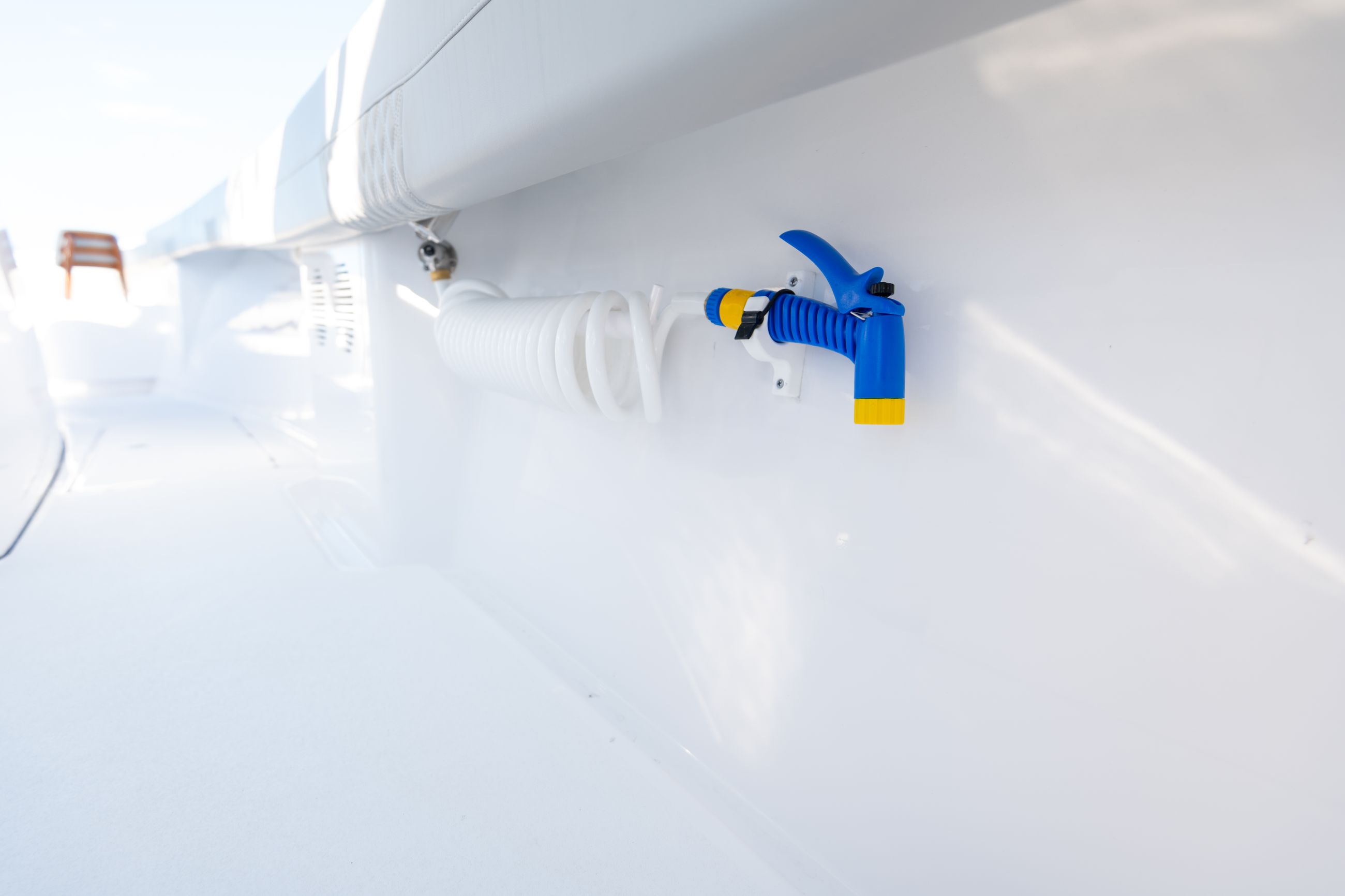

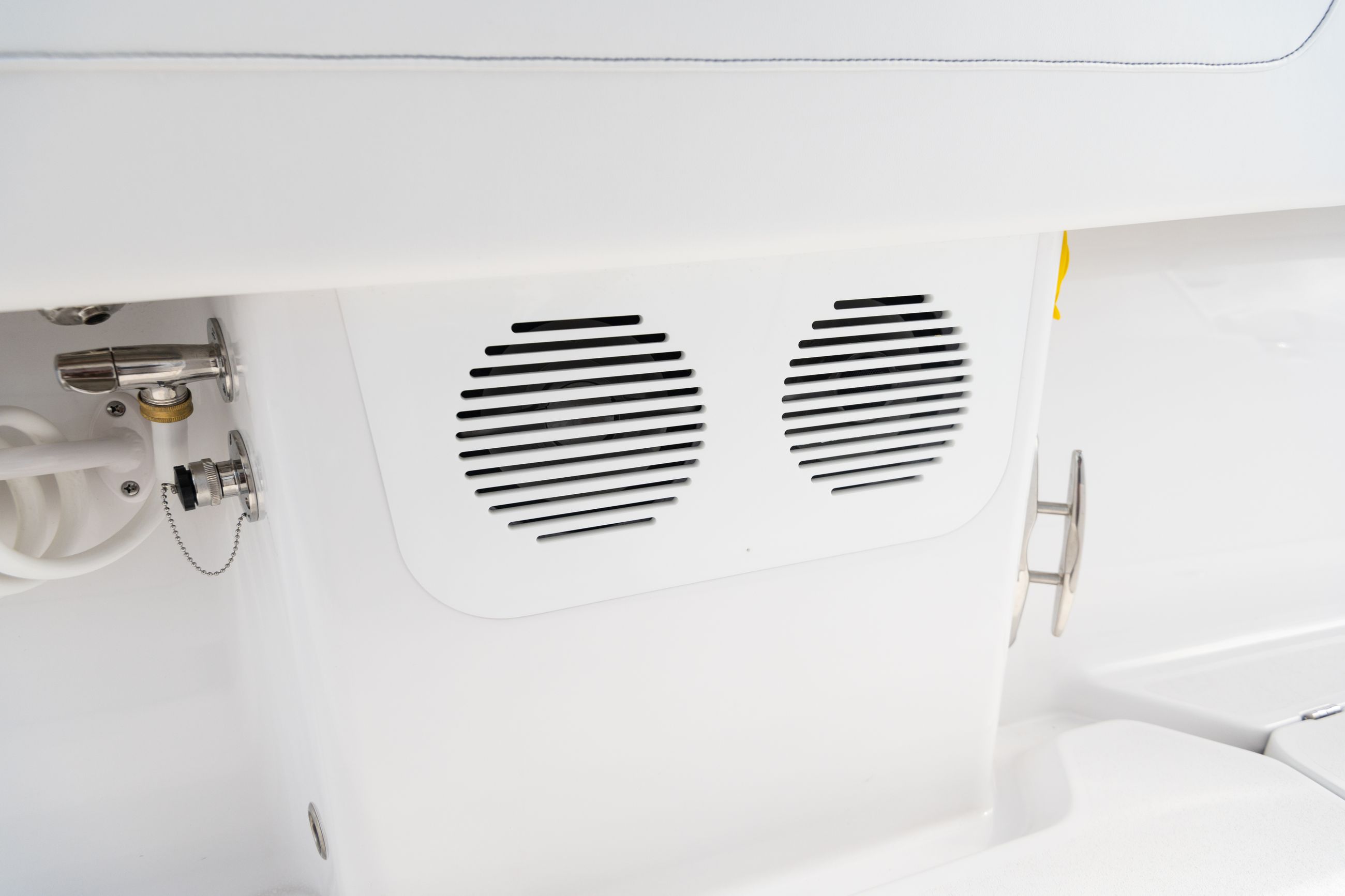

Raw & Freshwater Spigots

Located under the deck ring, we have the raw water hook up with spigot on the port side and the same thing for freshwater on the starboard side. This boat can hold up to 50 gallons of freshwater or 190 liters.

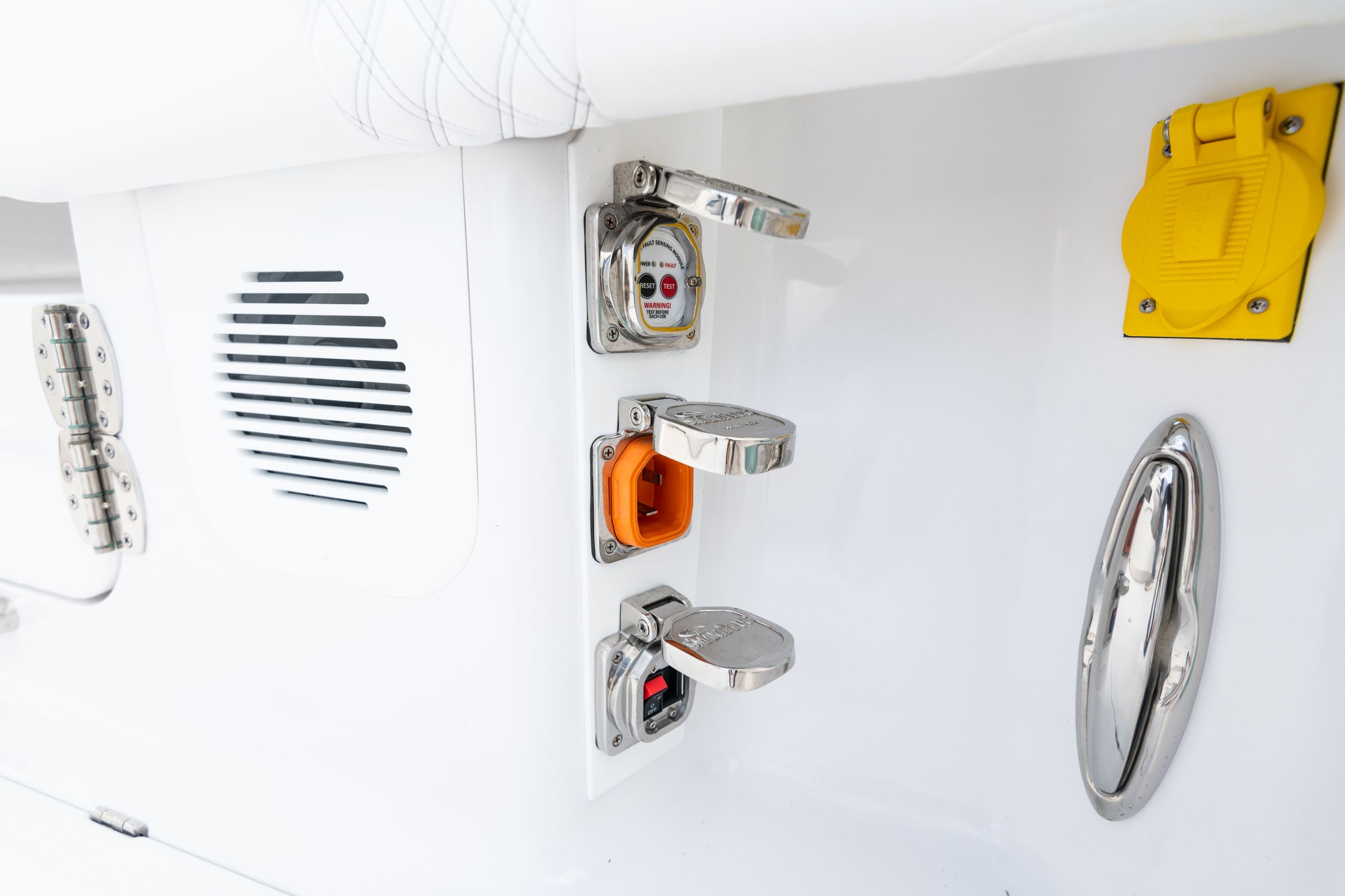

Hubbell Receptacles for Electric Reels

As far as receptacles go, we’ve equipped this boat with 4 electric reel outlets. The rear Hubbell receptacles can be found under the deck ring behind the side entry doors and on the front side of the mid-ship plenums.

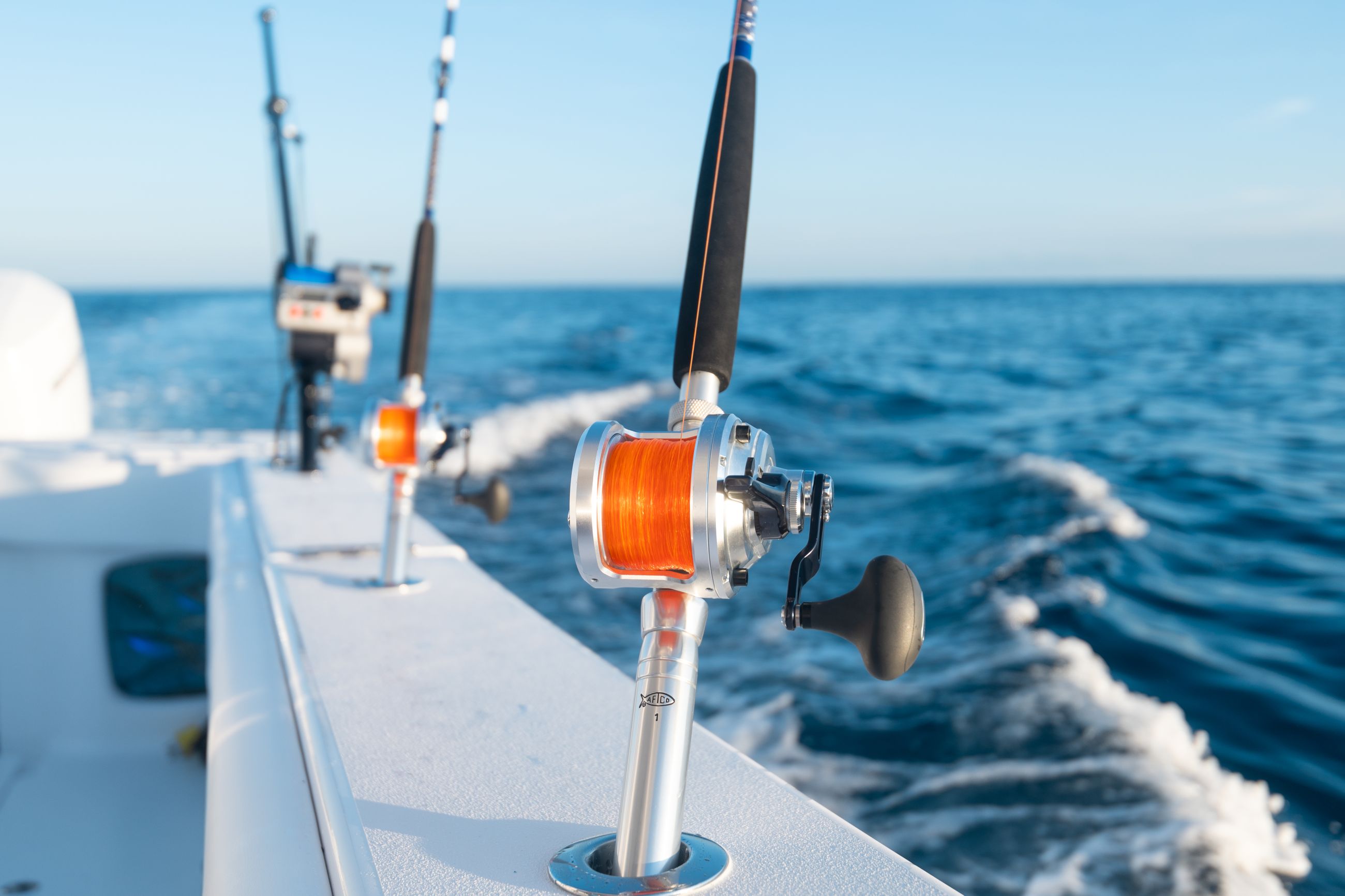

Gemlux Screwless Rod Holders

Along the top of the deck ring, we have 6 Gemlux screwless rod holders. 3 on each side.

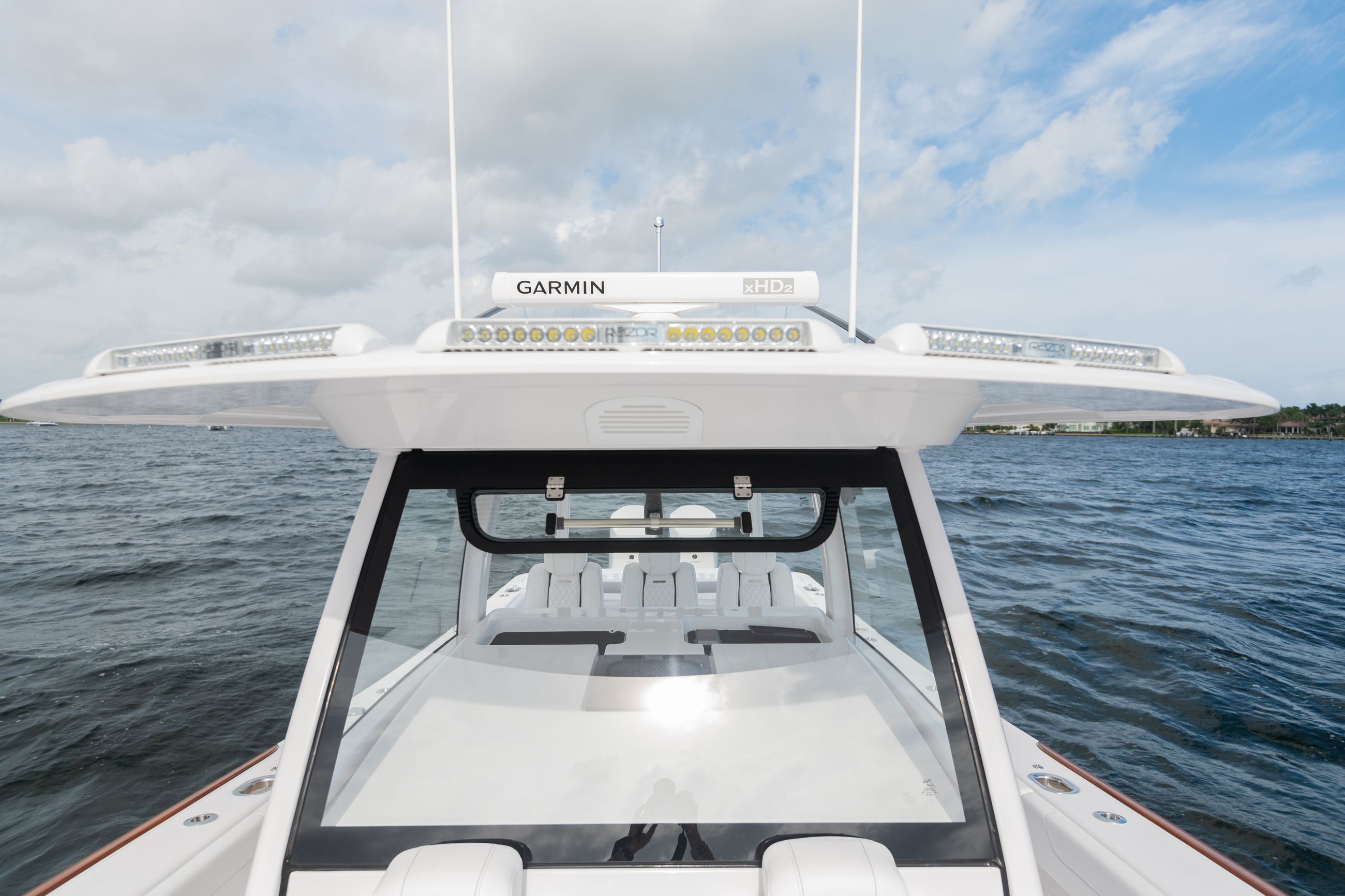

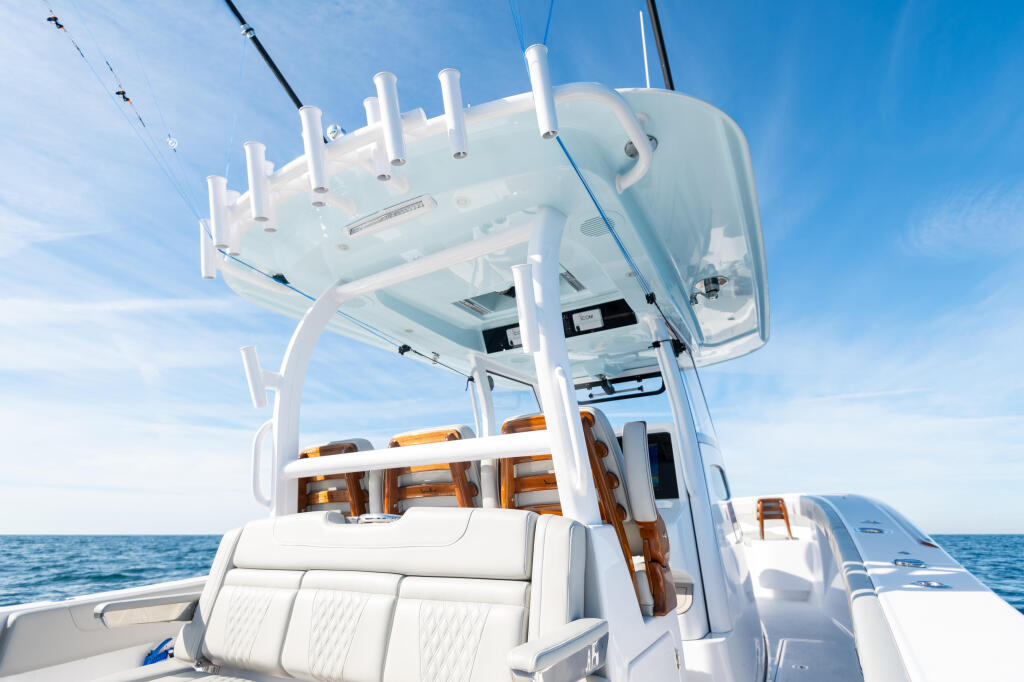

Fiberglass Hard-Top with D-Tubing Structure

Starting with the top itself. It is an over-sized fiberglass top with 6 attachment points. This design gives the top an extremely rigid structure in extreme conditions without any flex. This top was also designed with the weight of a tower in mind in case you go that route.

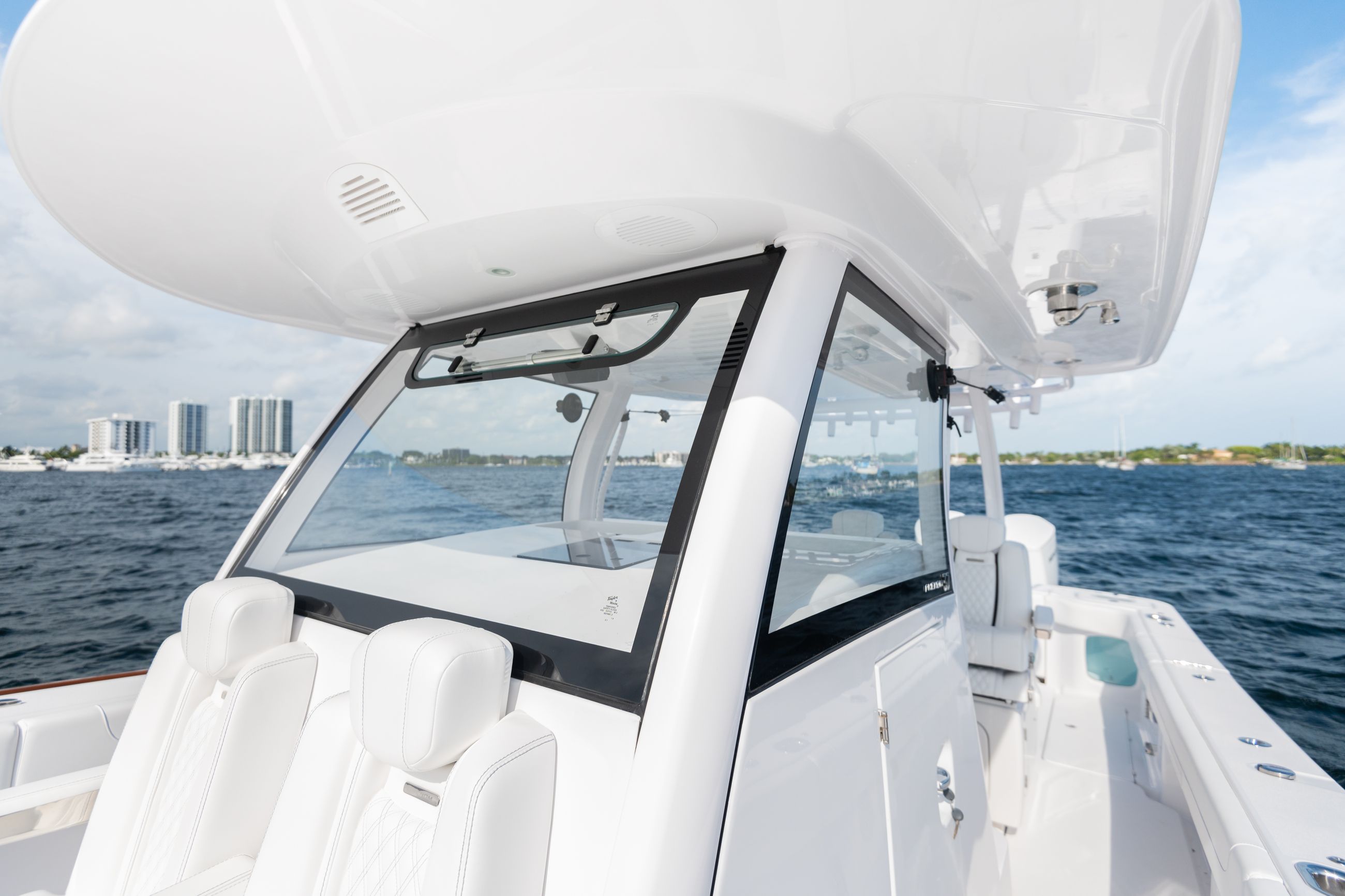

Integrated Tempered Glass Windshield

For protection, an integrated tempered glass windshield with an actuated vent for ventilation will give everyone behind the helm protection from the elements.

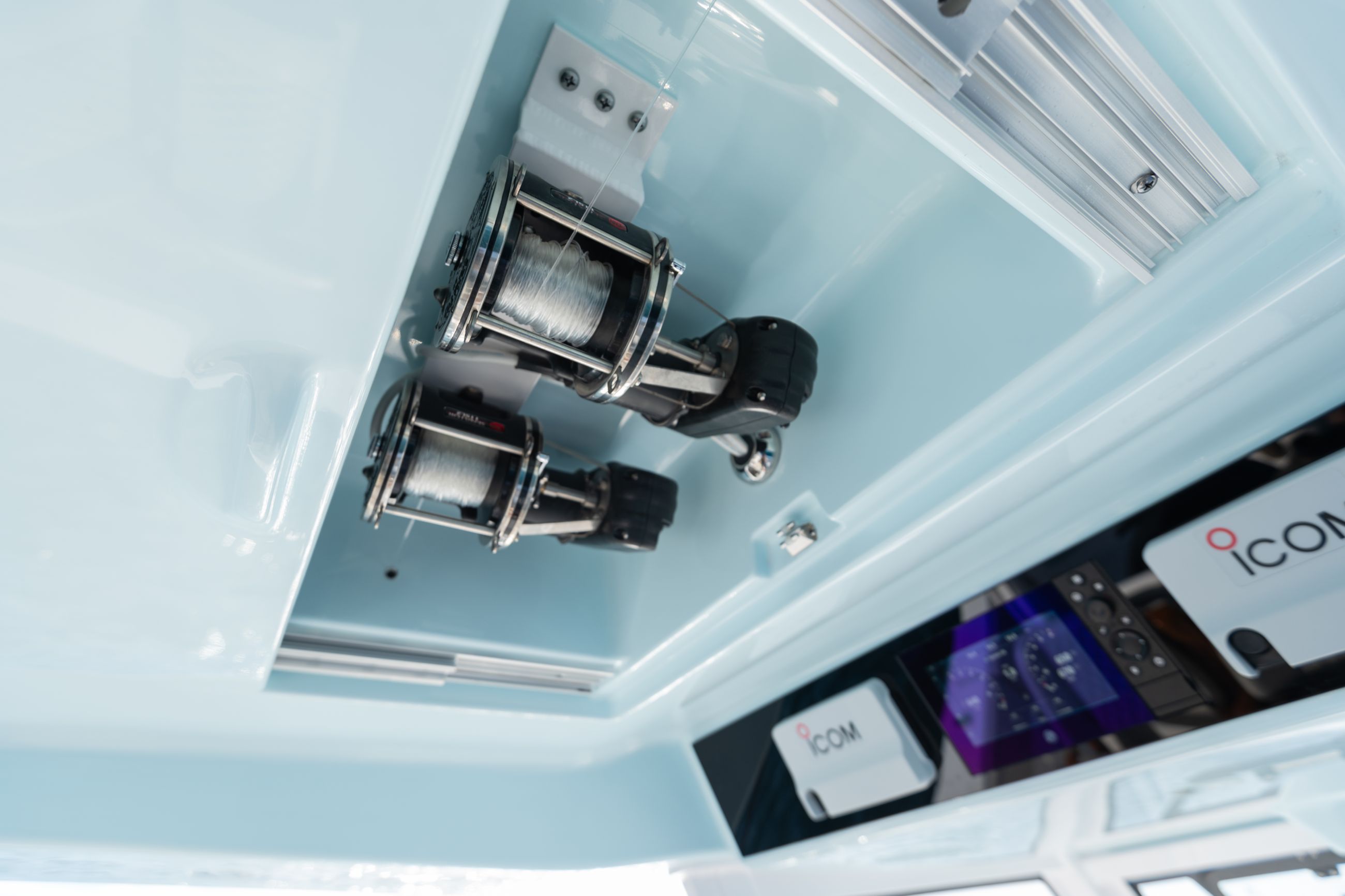

Integrated Electric Teaser Reels

In the center section, we have a designed in spot for integrated teaser reels. As a standard, we have a pair of electric teaser reels. The line for those runs through the hard-top structure and out through designated spots on the top. When not in use, a lid closes to hide them away and regain a beautiful clean look.

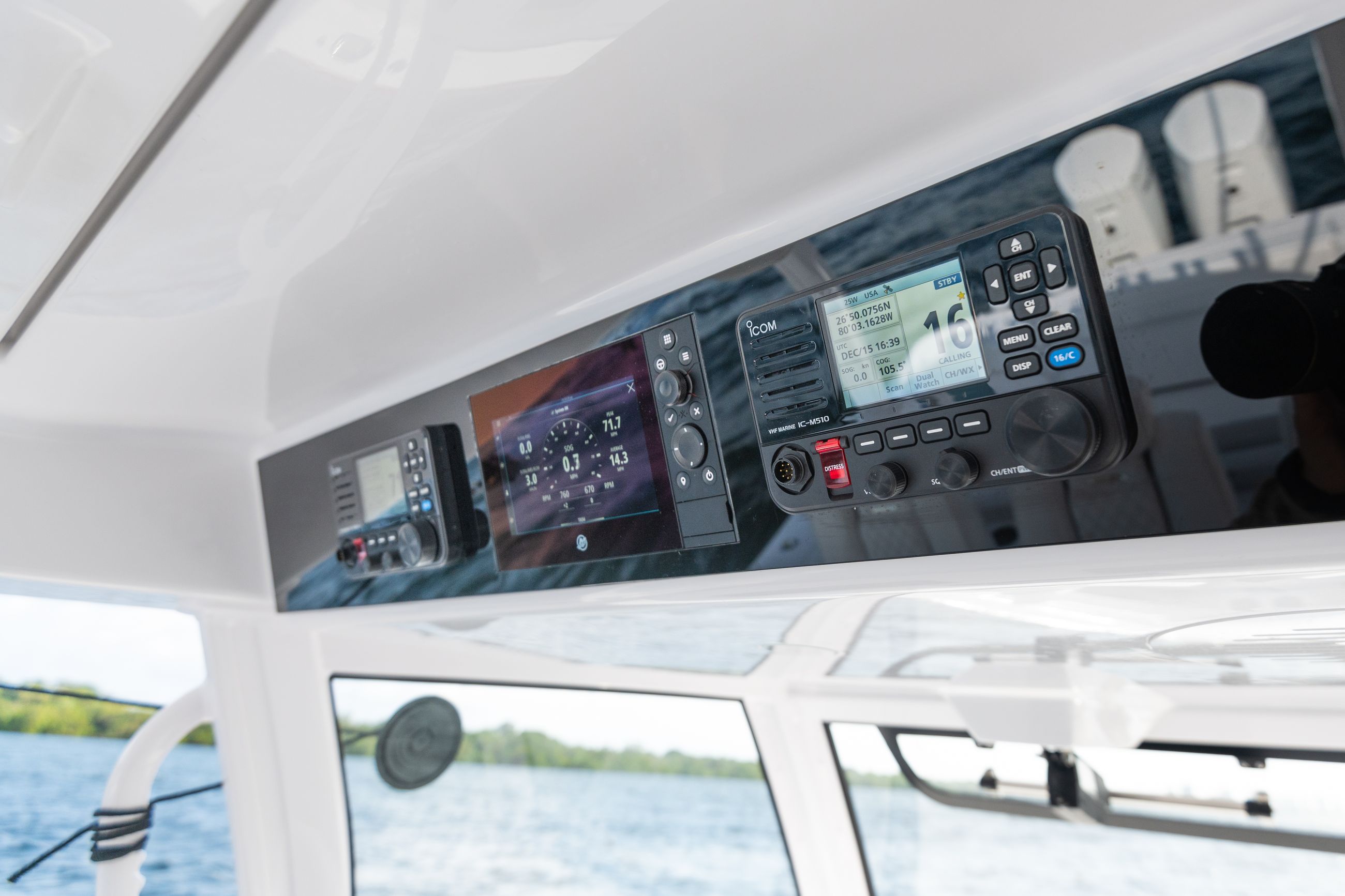

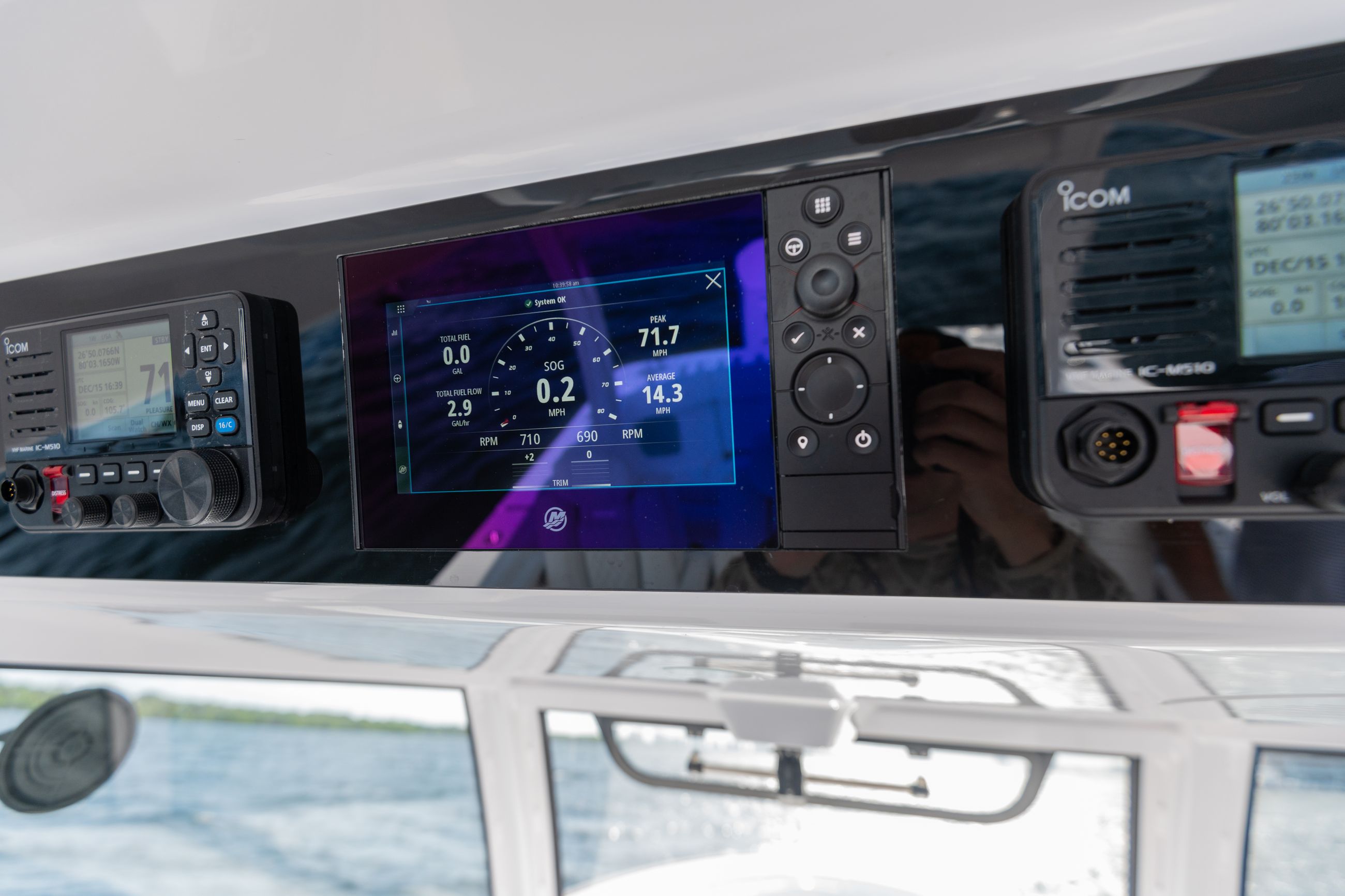

(2) ICOM M510 VHF Radios

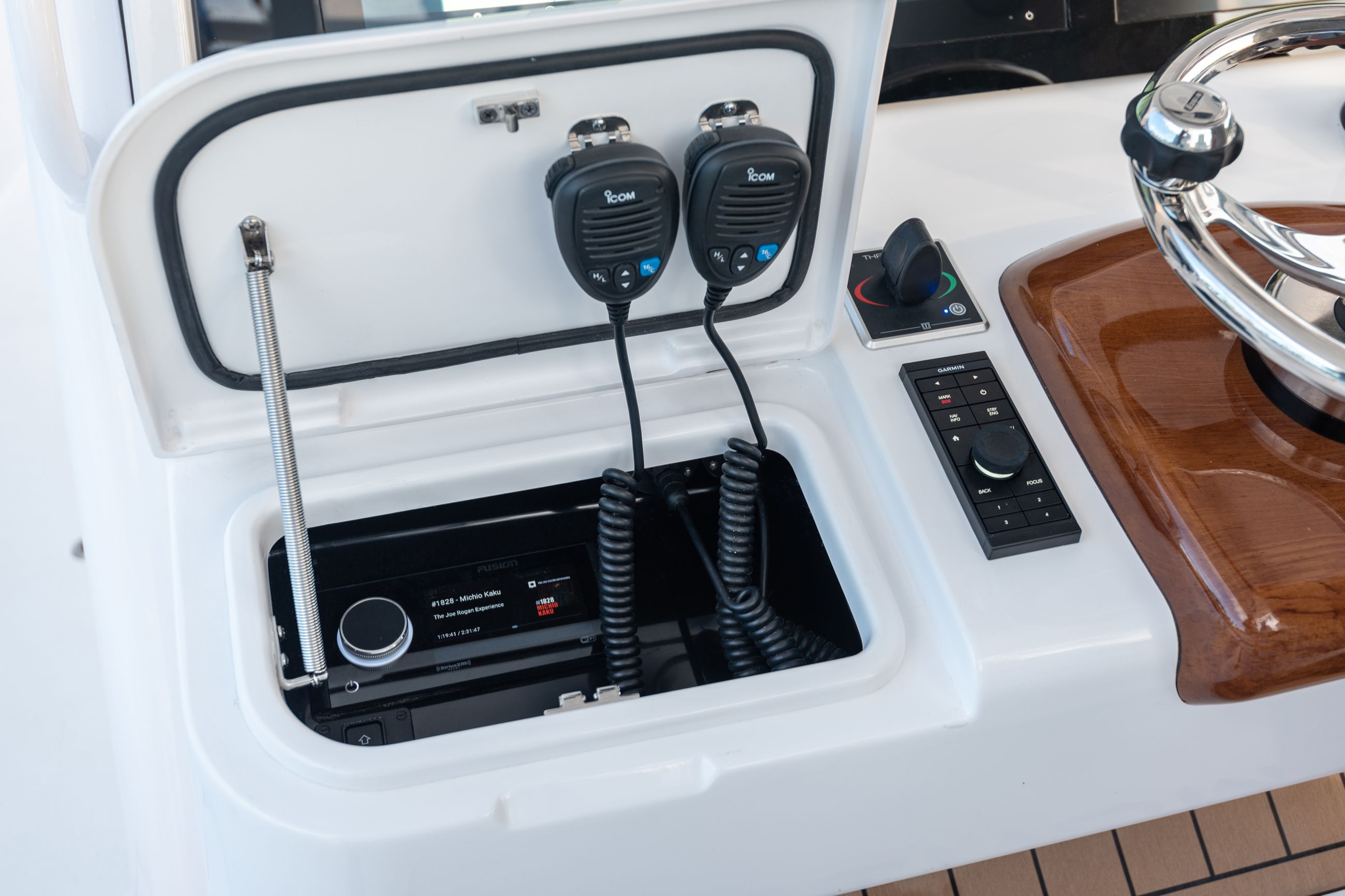

Also at the top, you will find two ICOM M510 VHF radios. The mics are located inside of the glove compartment to the left of the helm to keep them out of the way. Having two radios will allow you to monitor two channels at the same time, a great feature for tournament fishing.

Mercury VesselView 7 Display

At the center, is the main engine gauge. The Mercury VesselView 7 displays all of the critical engine data including rpm, speed, fuel flow and efficiency, temperature, trim and more.

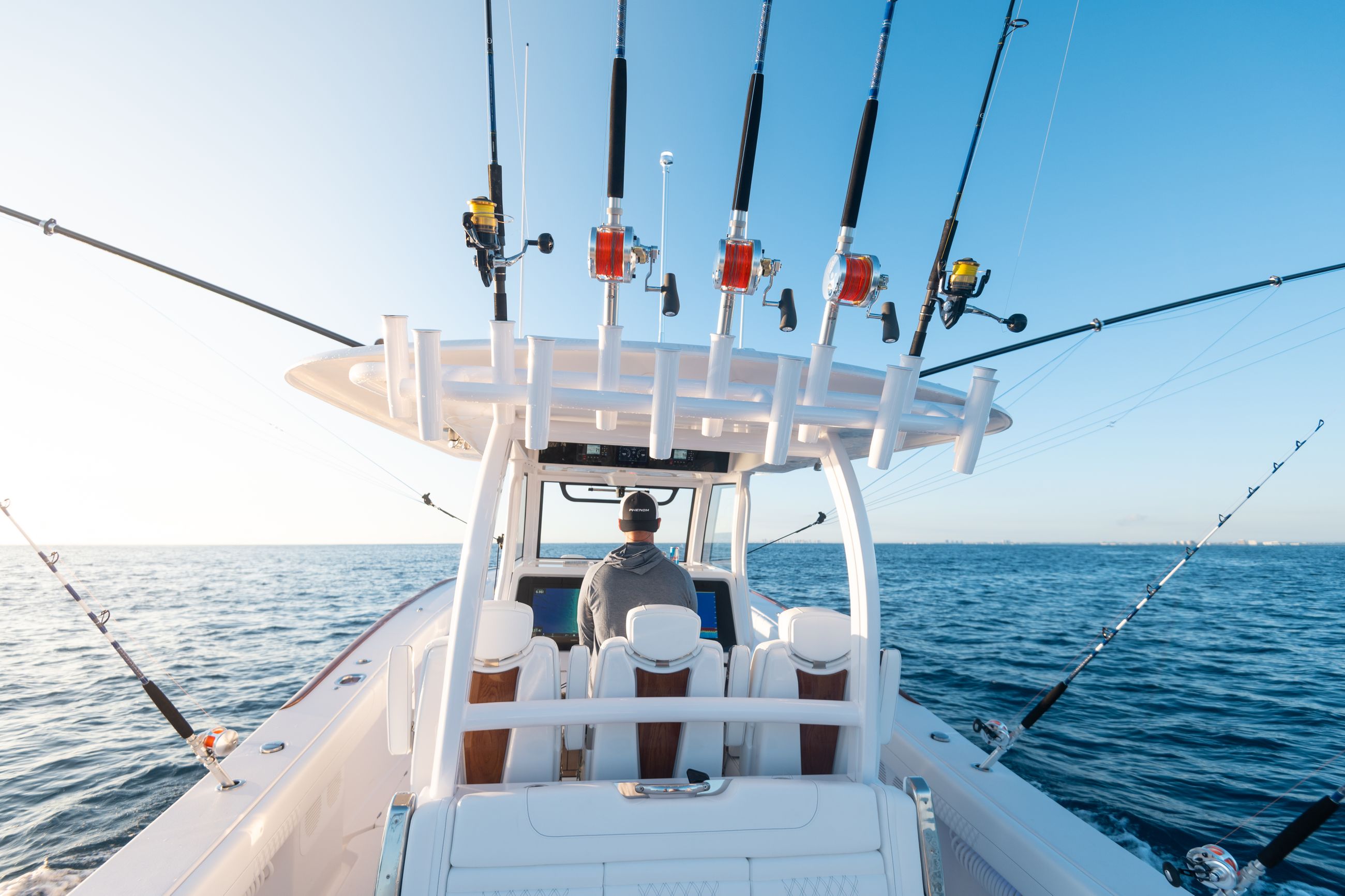

Hard-Top Rocket Launchers

Across the rear of the top, we have a double row of rocket launchers for a total of 13 rods. This can be personalized to a single row of 7.

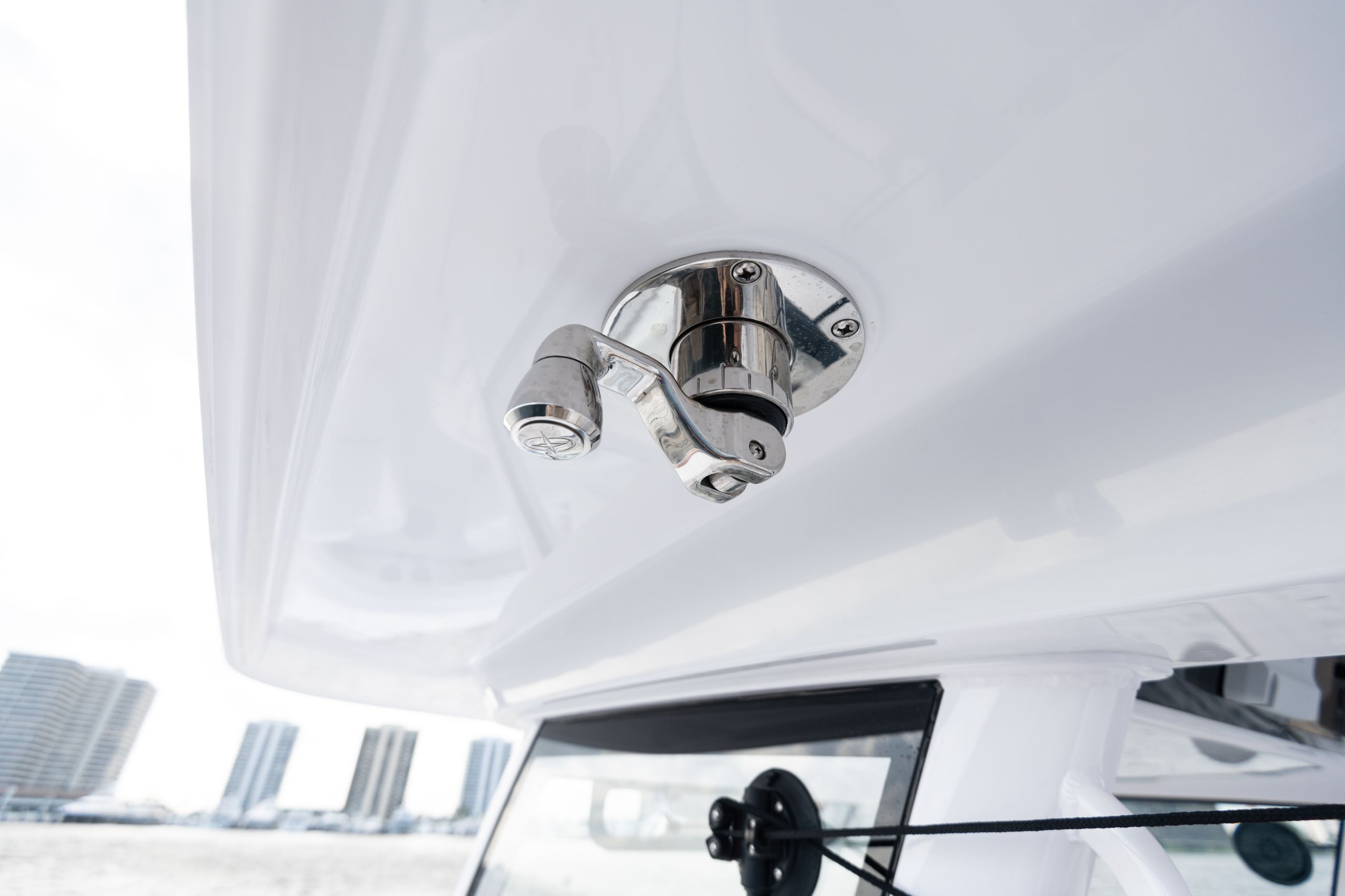

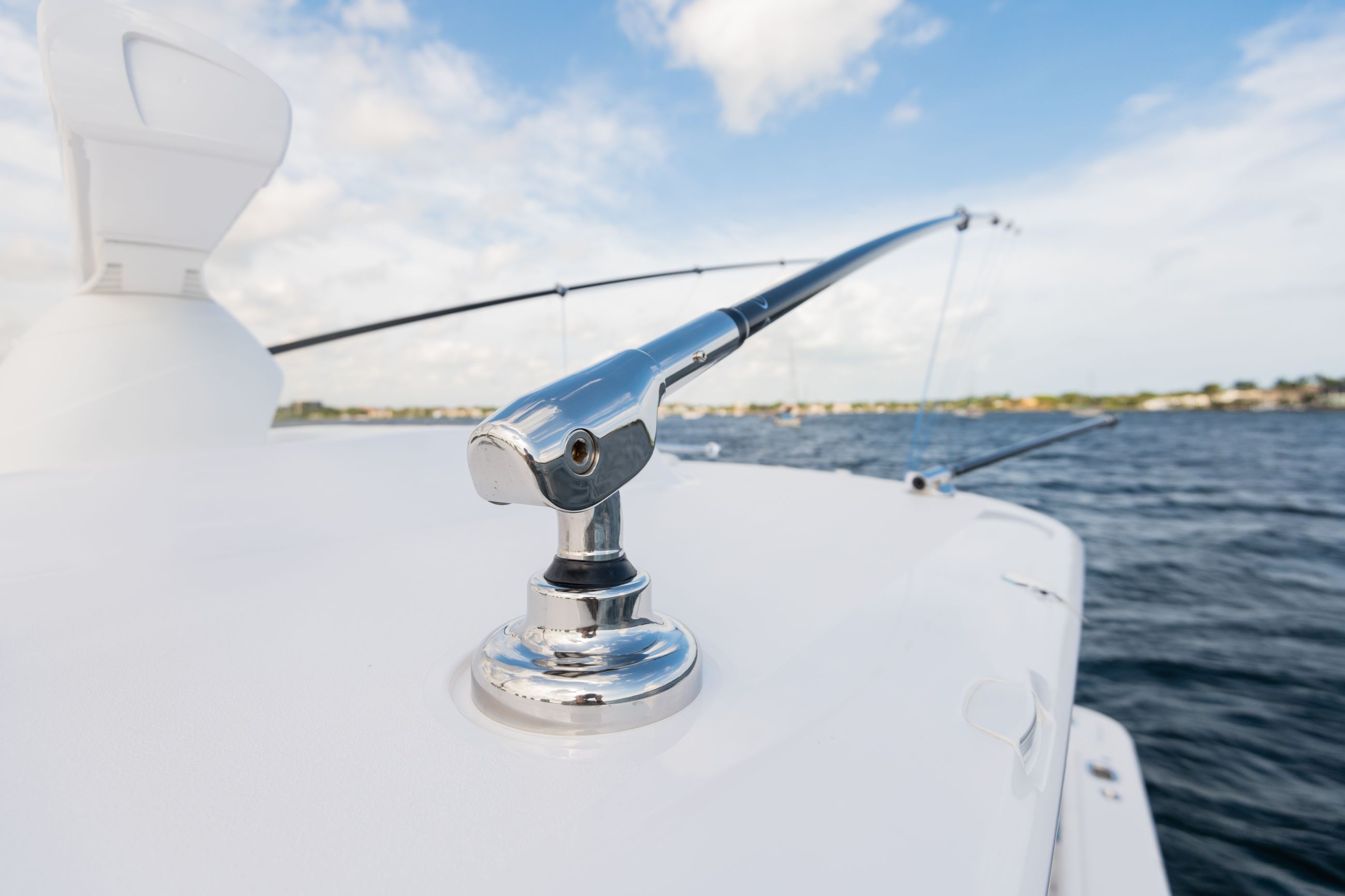

Outrigger Handle

Outrigger Poles

Optional Gemlux Bluewater Outriggers

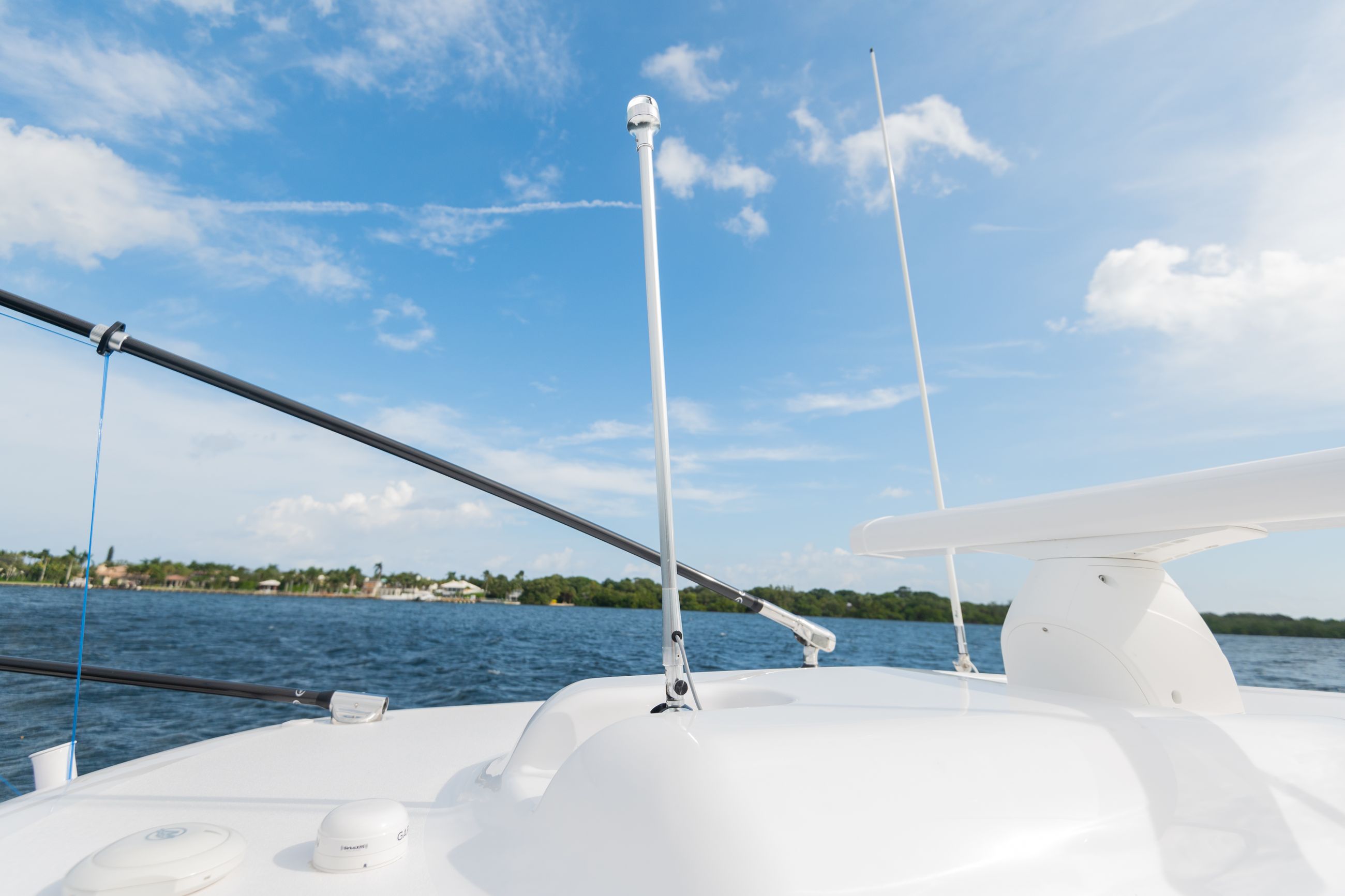

This top has been designed to accept the optional Gemlux Bluewater Outriggers. These outriggers and carbon fiber poles are designed to the highest standard in the fishing industry. They feature a set of collapsible 22-foot poles with triple rigging and a reinforced base ready to pull dredges.

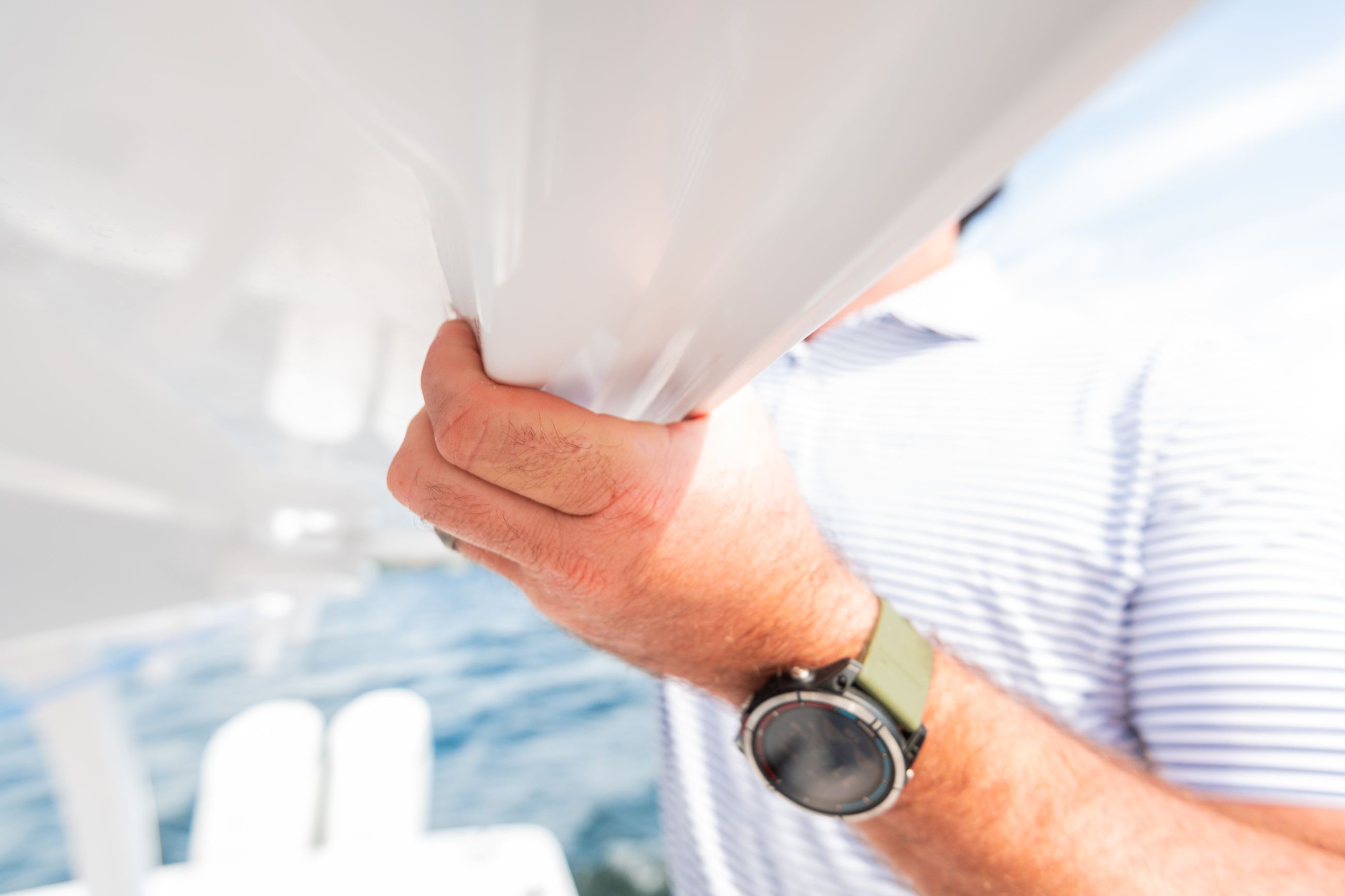

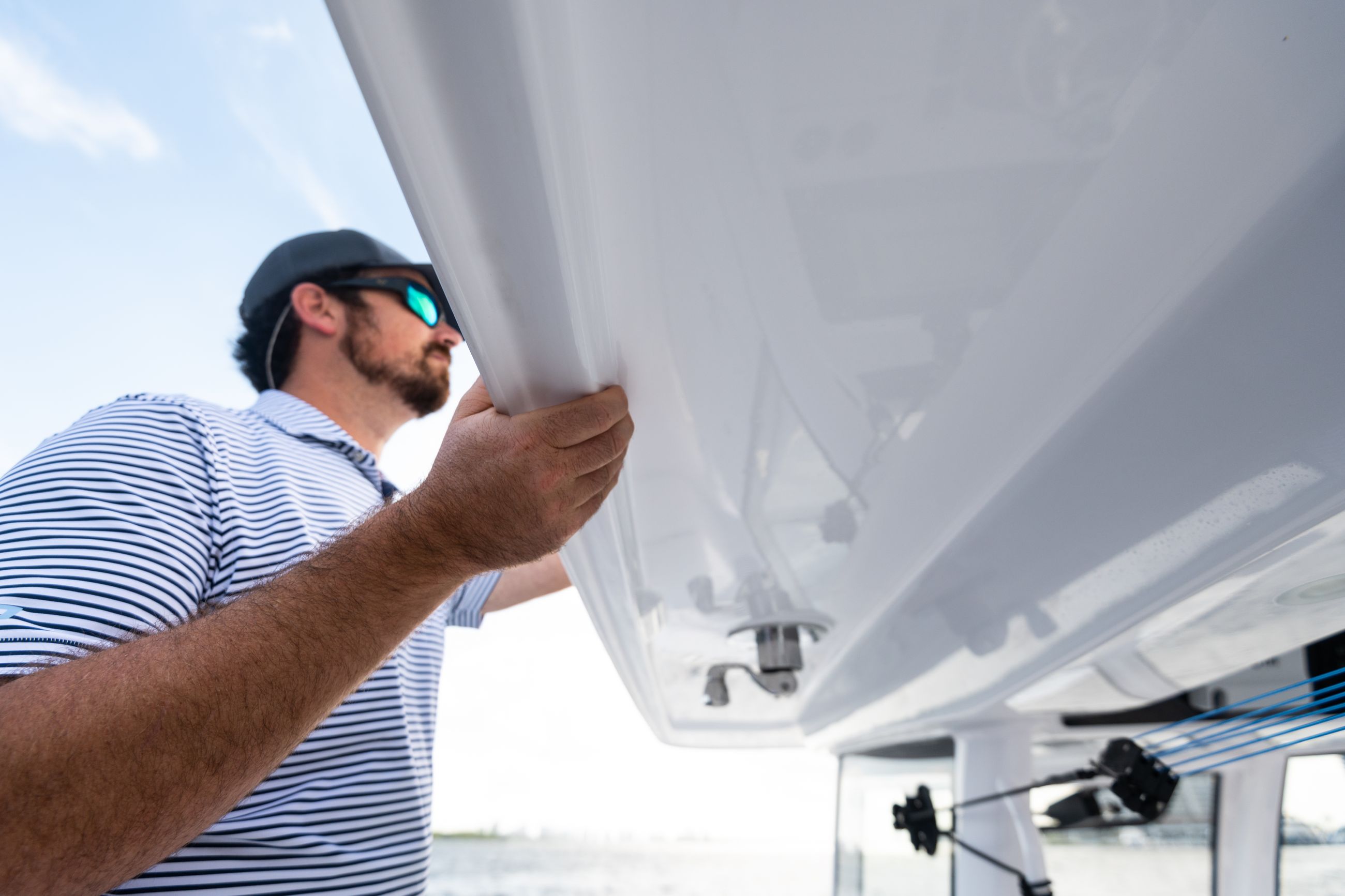

Designed-In Grab Edge

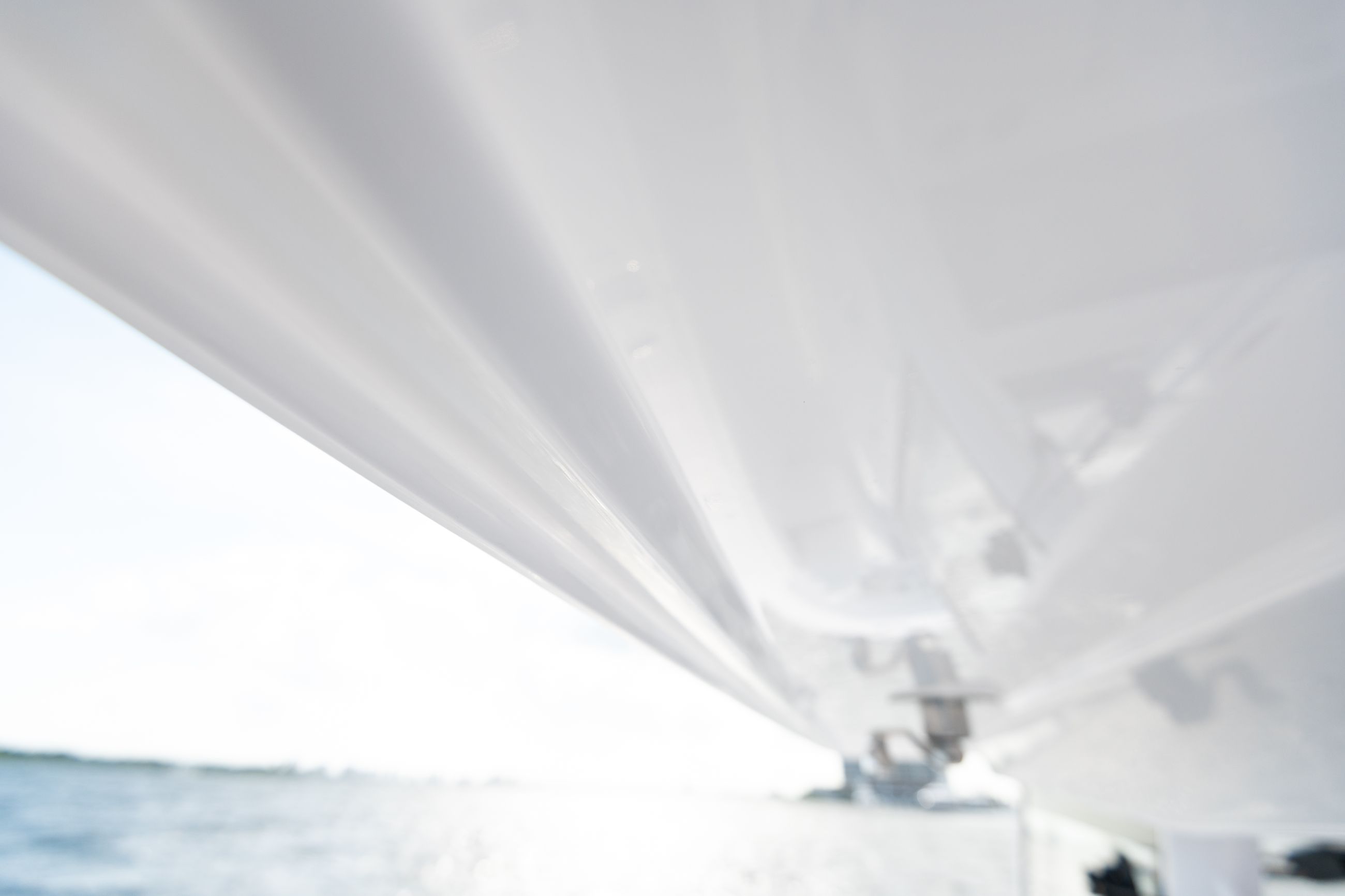

Along the edge of the hard-top, we have a designed-in a grab edge. If you are walking down the gunwale, this safety feature will come in handy. Doesn’t matter where you are, there’s always a spot for you to safely grab.

Hard-Top Grab Edge Detail

Edge In-Use

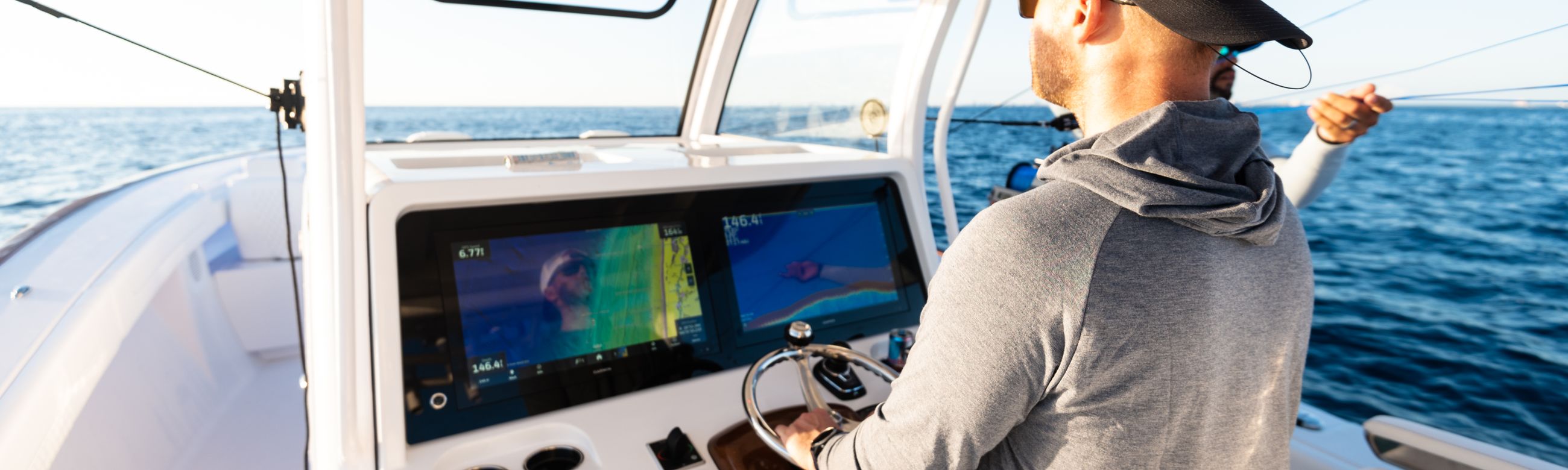

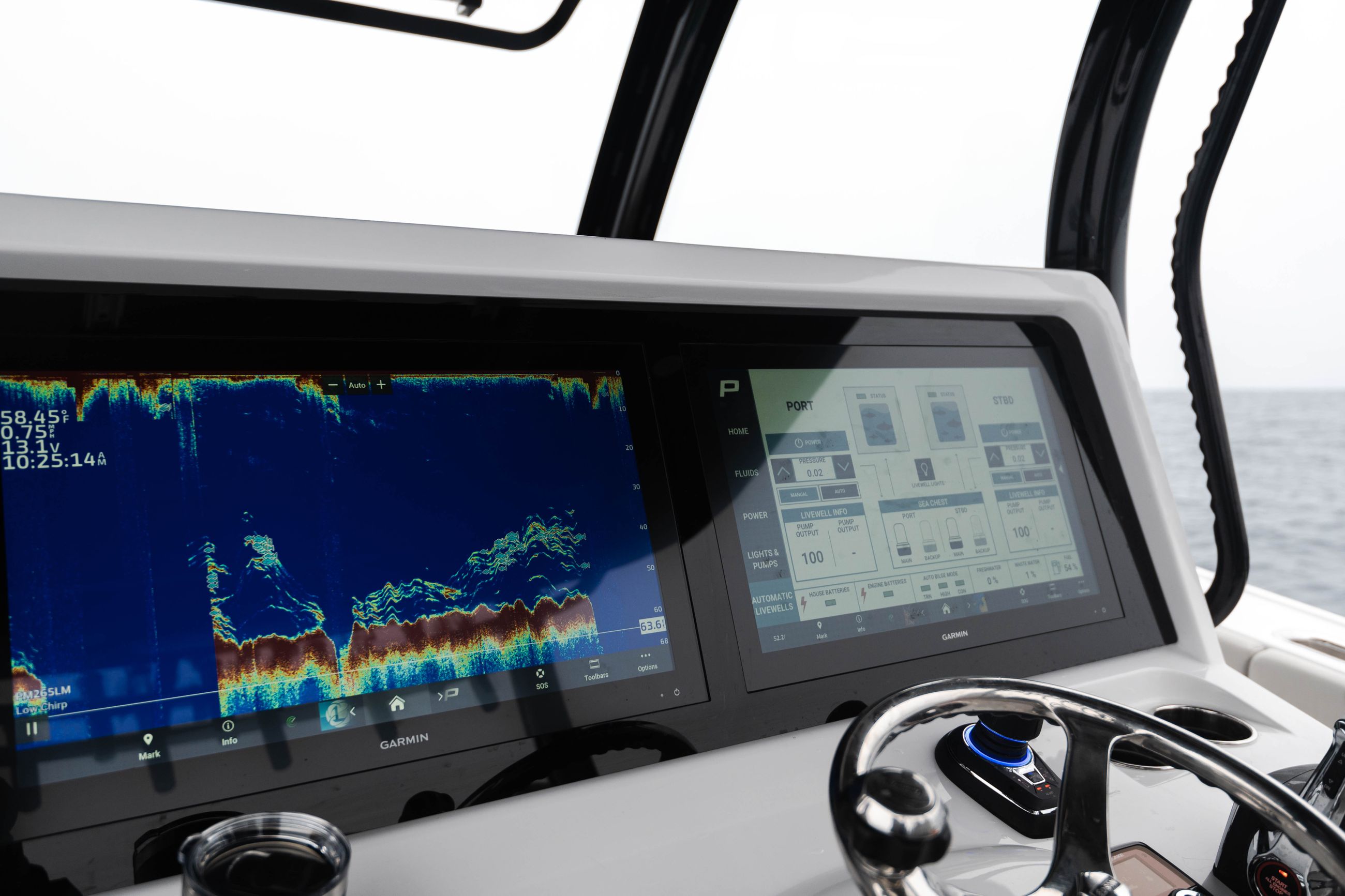

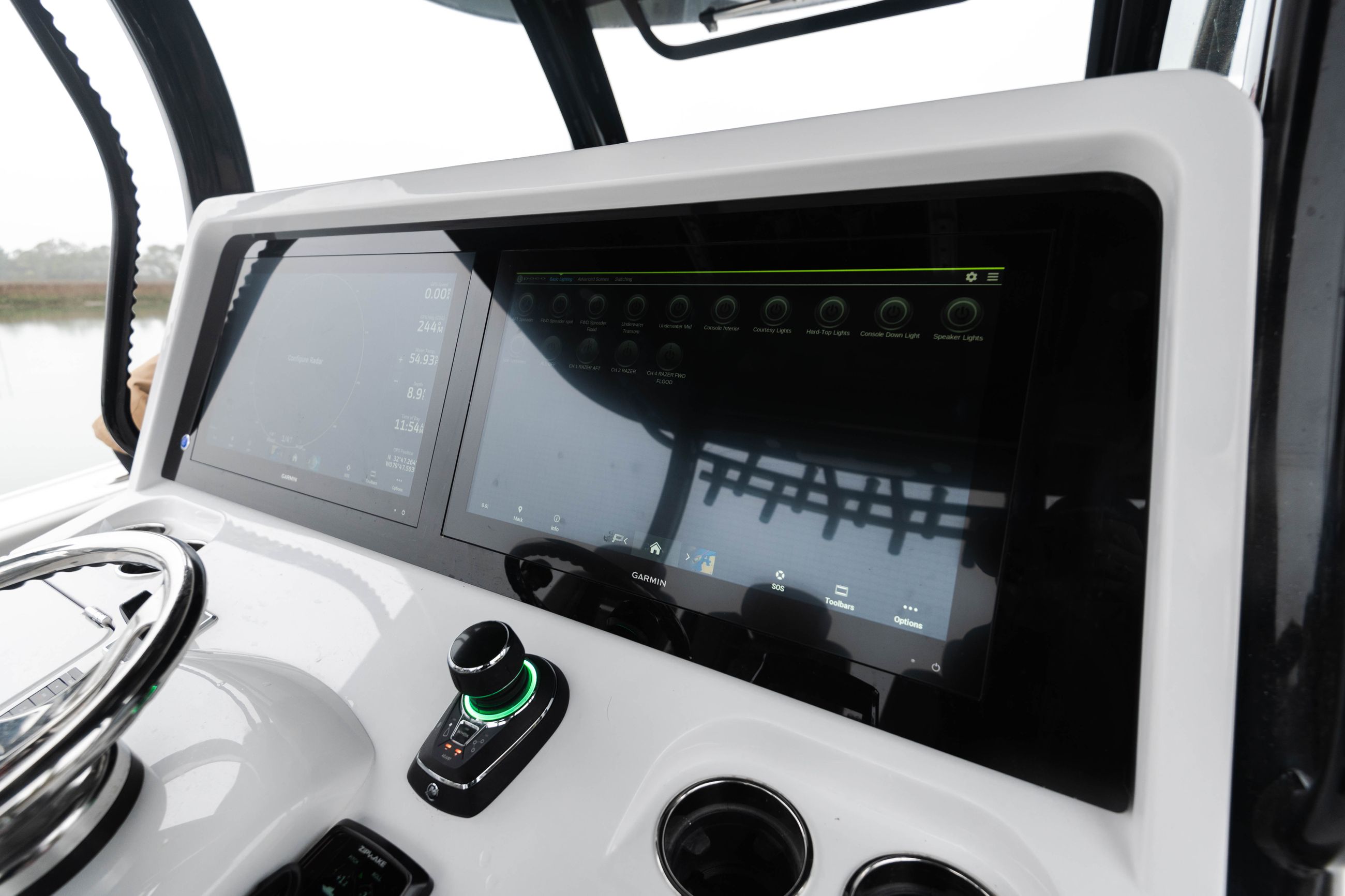

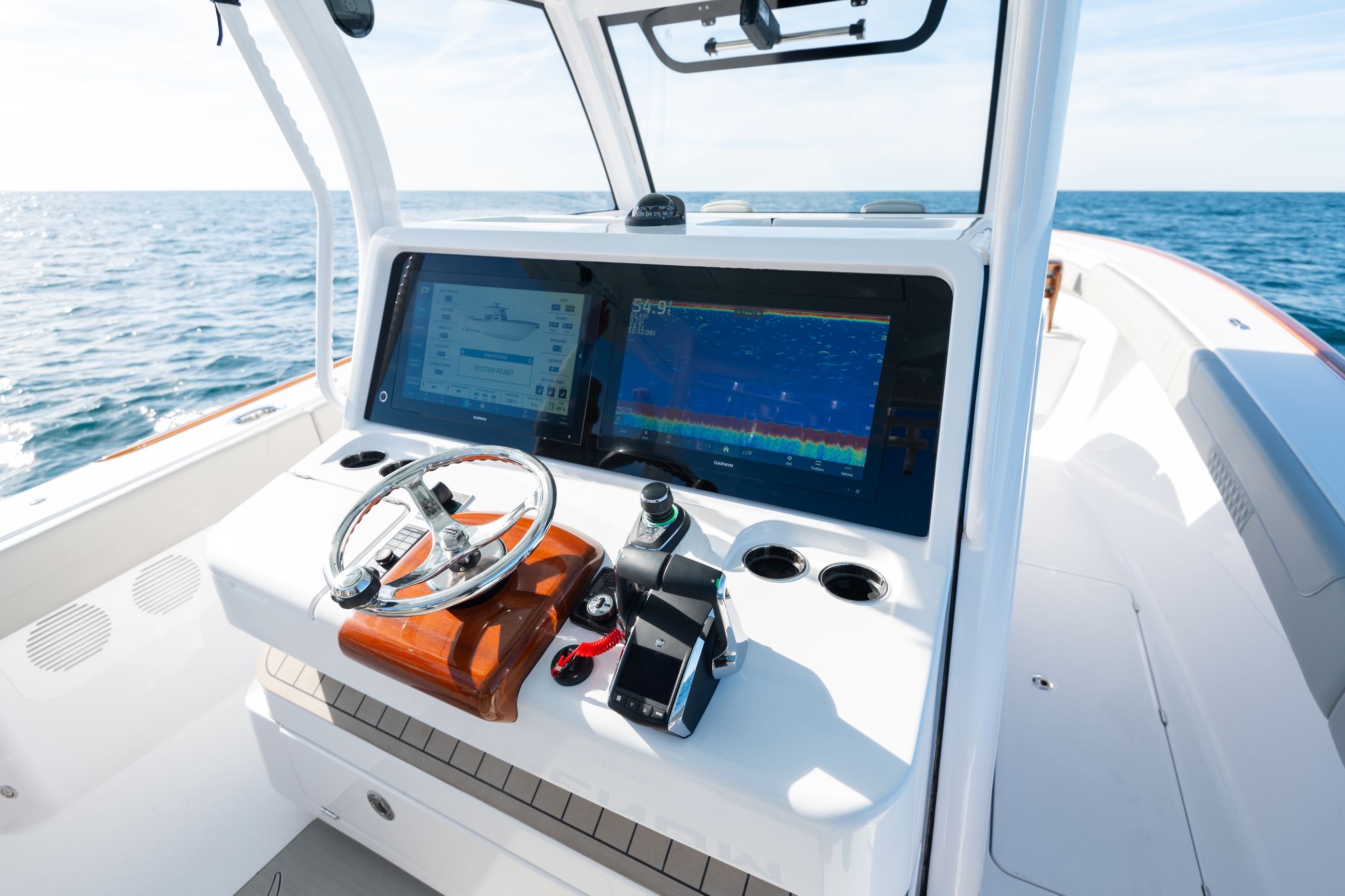

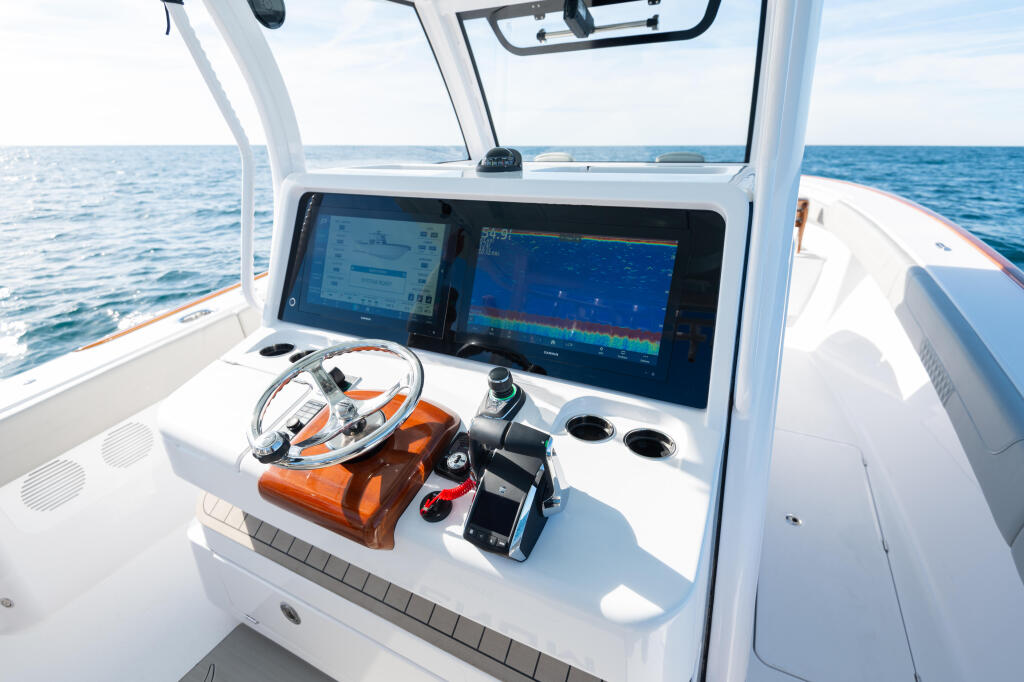

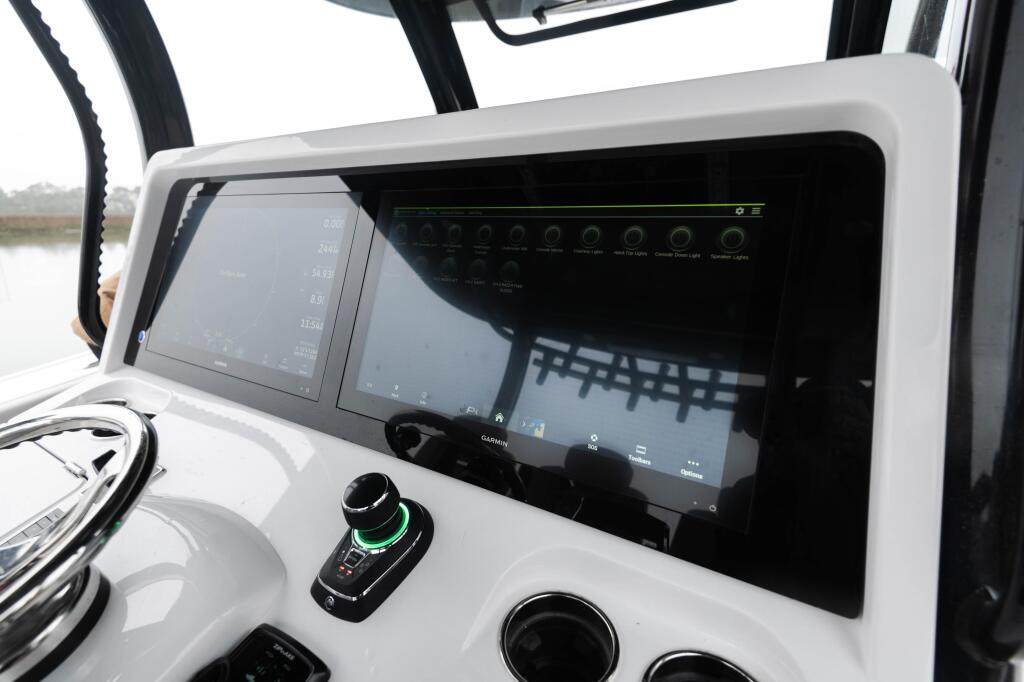

Twin Garmin 8622 22-inch MFD

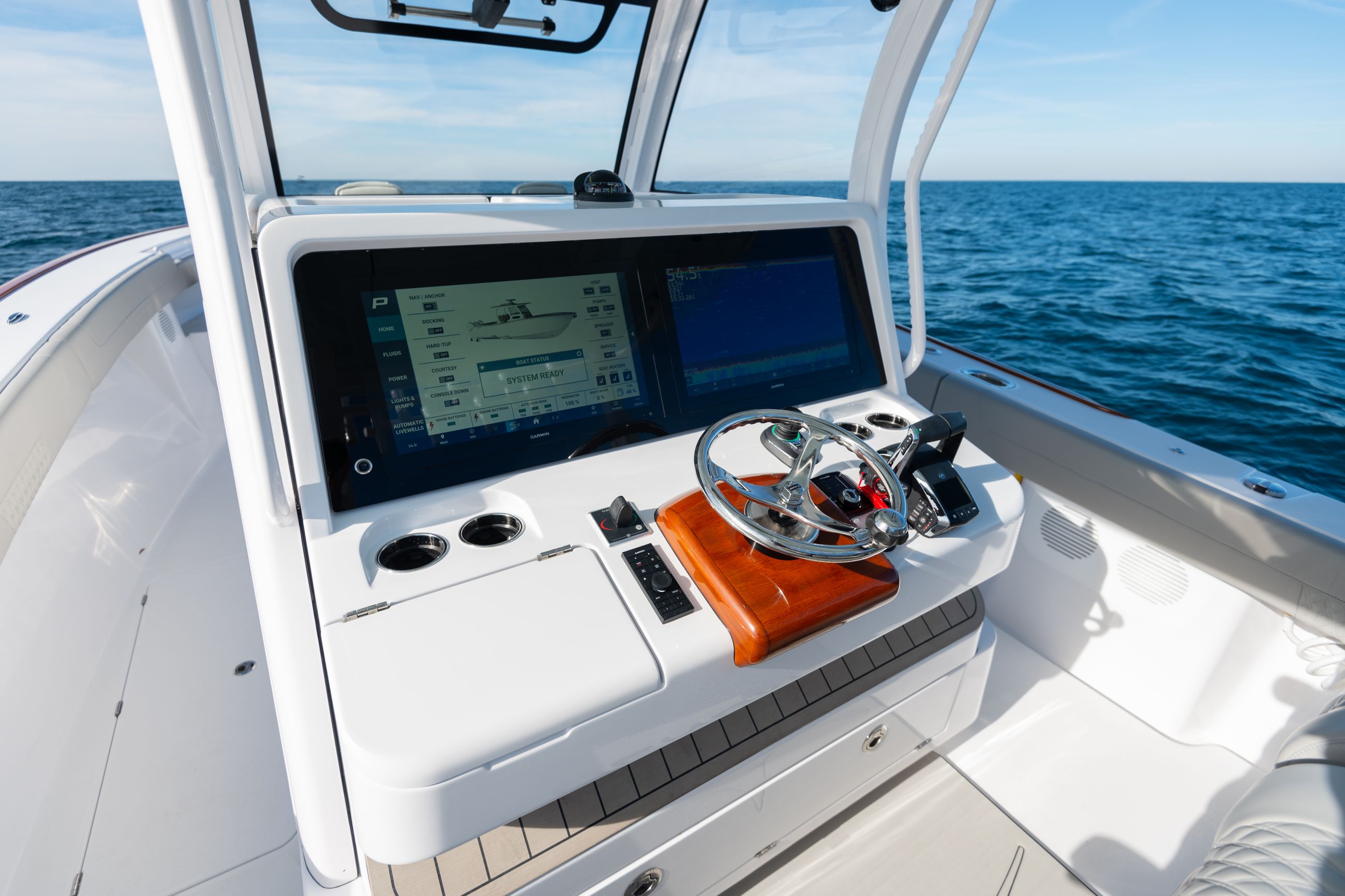

At the helm, a pair of the Garmin 8622 22-inch screens. From this command center you will be able to monitor all of the systems on board and even reset any of the breakers through the built-in breaker manager in the EmpirBus.

The Phenom App

We’ve created an all-encompassing Phenom app that includes a custom designed “Home” screen to give you a full boat status at a glance. This screen will also give you access to the most commonly used functions. There are other screens for fluid levels, battery monitoring, lights and pumps and the automatic livewell system.

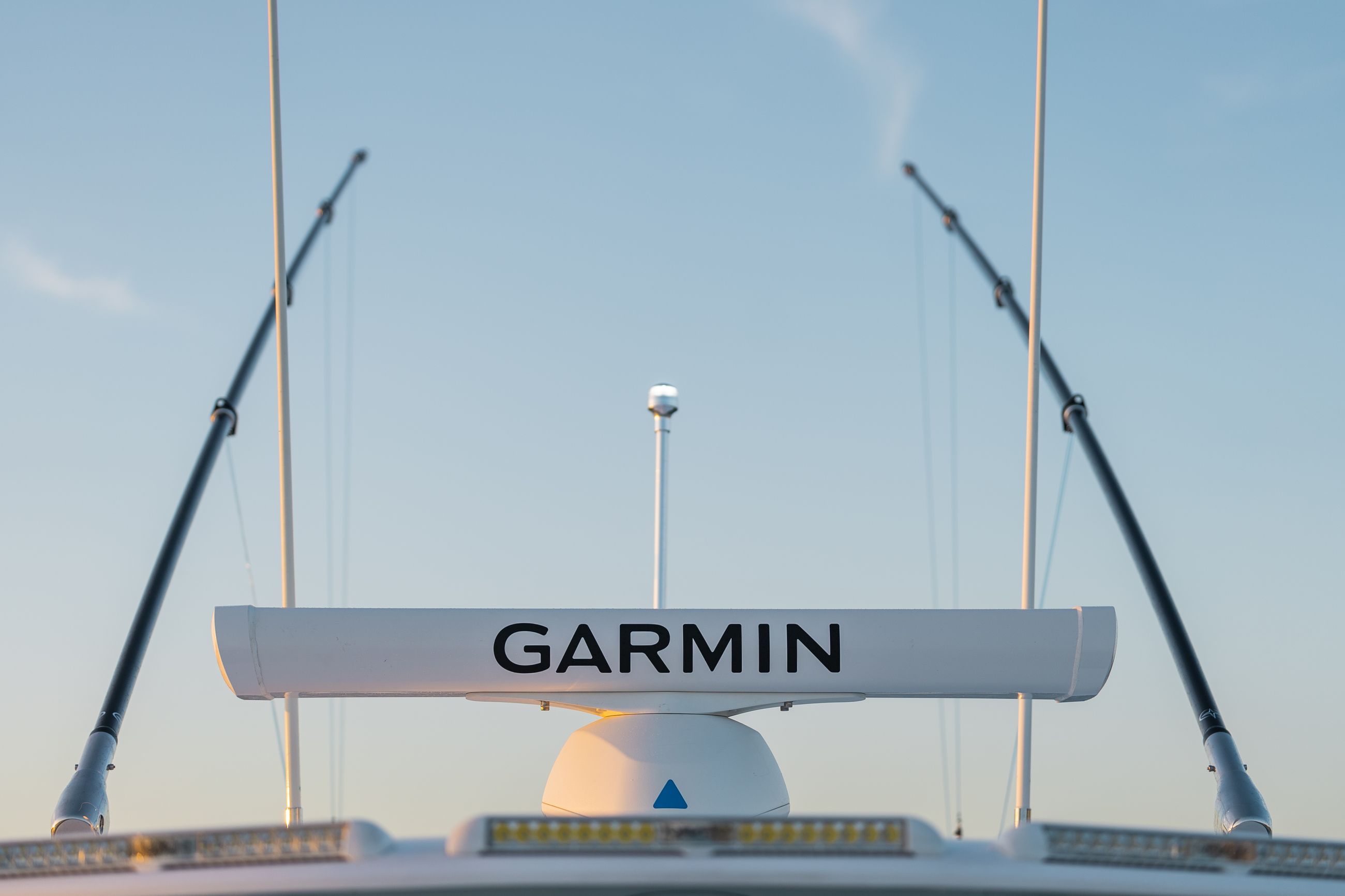

Garmin Fantom 124 Radar

For monitoring what’s ahead, an integrated Garmin Fantom 124 radar that puts out 120 watts of power and has built in MotionScope for tracking targets.

Airmar PM275LHW wide-beam CHIRP Transducer

The keel of the boat has a pocket Airmar PM275LHW wide-beam CHIRP Transducer with 1kw of power. For access, we’ve designed in a removable section inside of the console.

For tight maneuvering and precise spot locking capabilities, the Phenom 37 is equipped standard with two pieces of equipment.

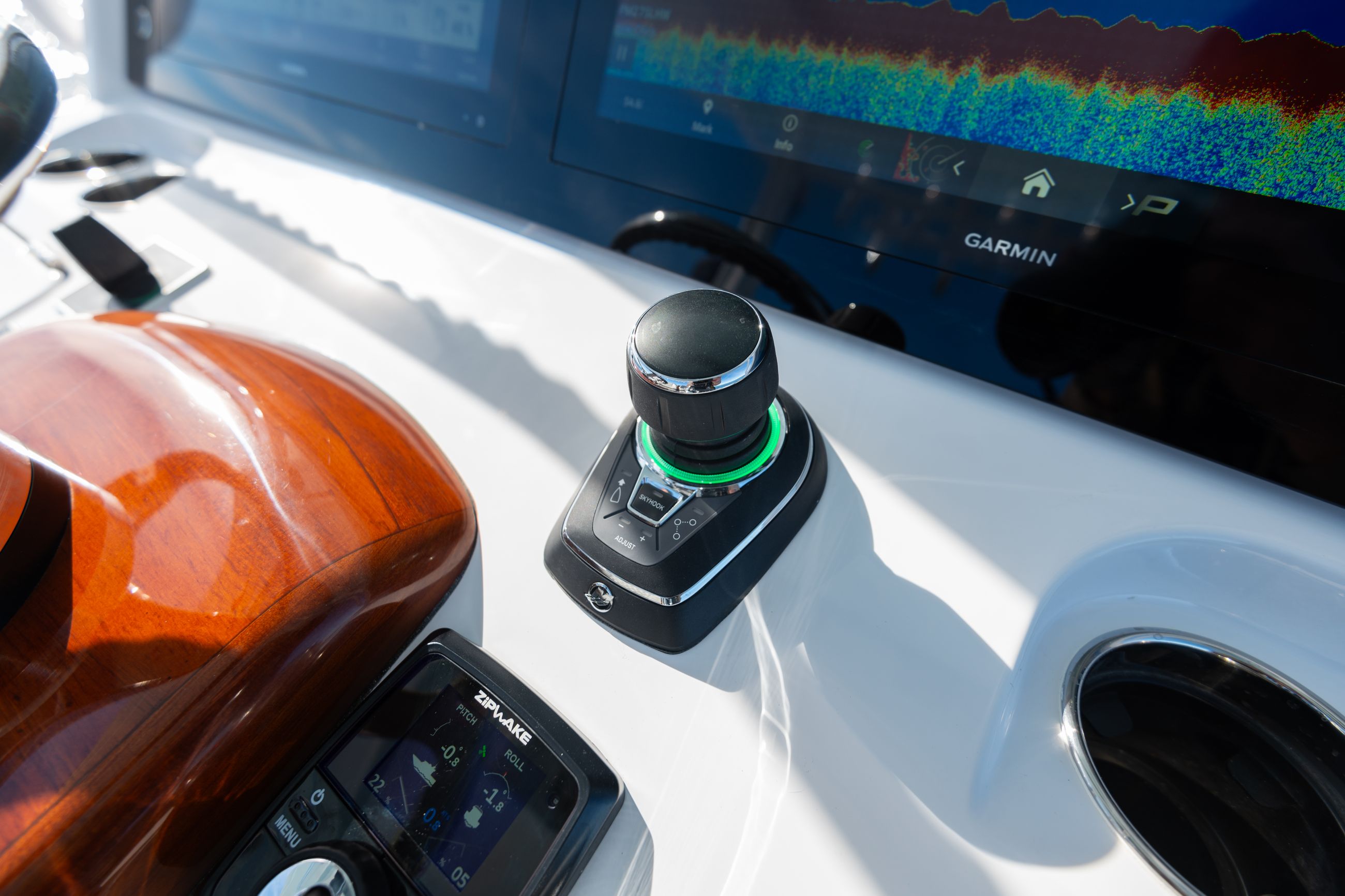

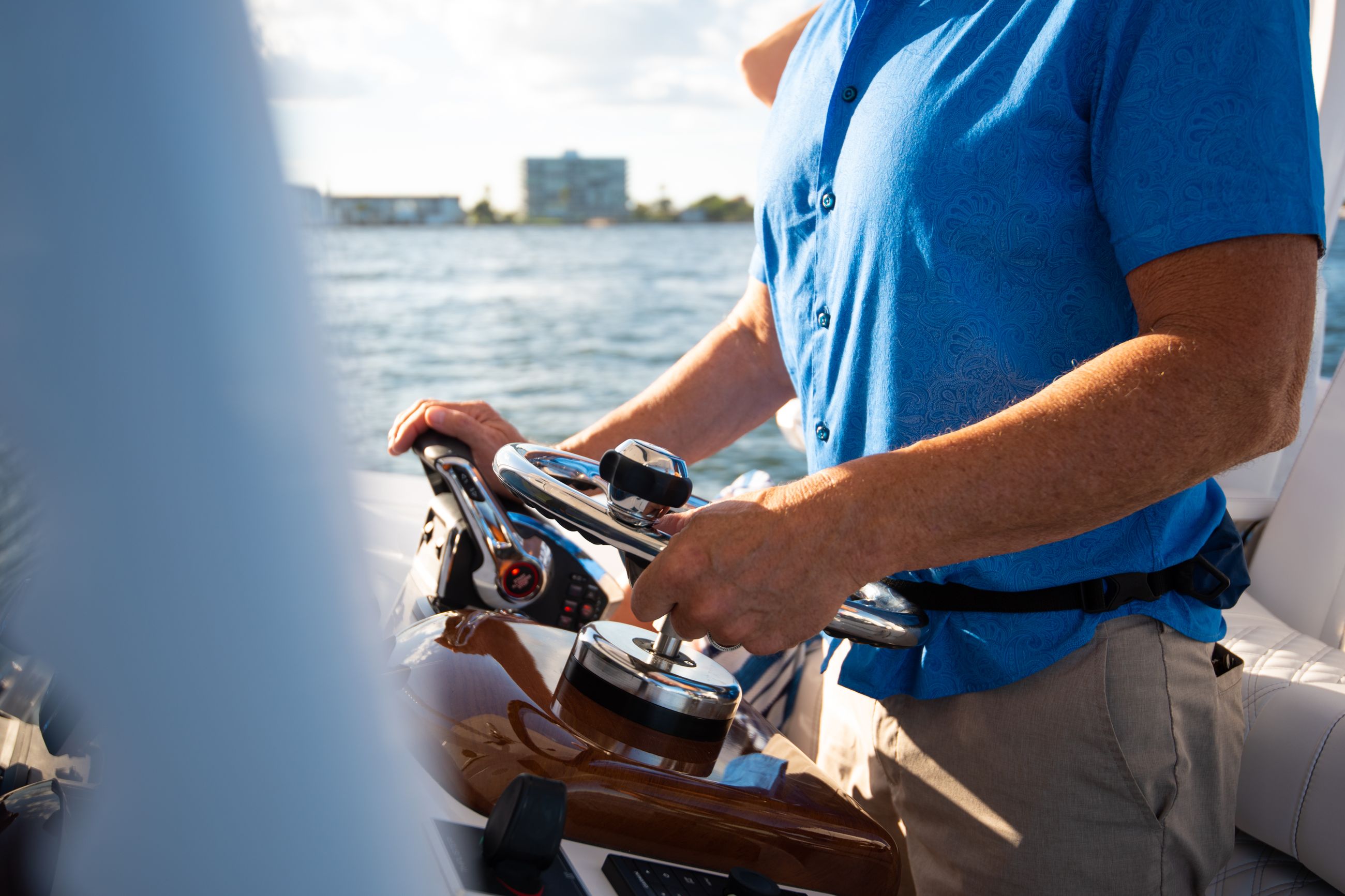

Mercury Joystick Piloting System

The first is the Mercury Joystick Piloting System which will allow you to maneuver the boat diagonally, move sideways or even spin the boat.

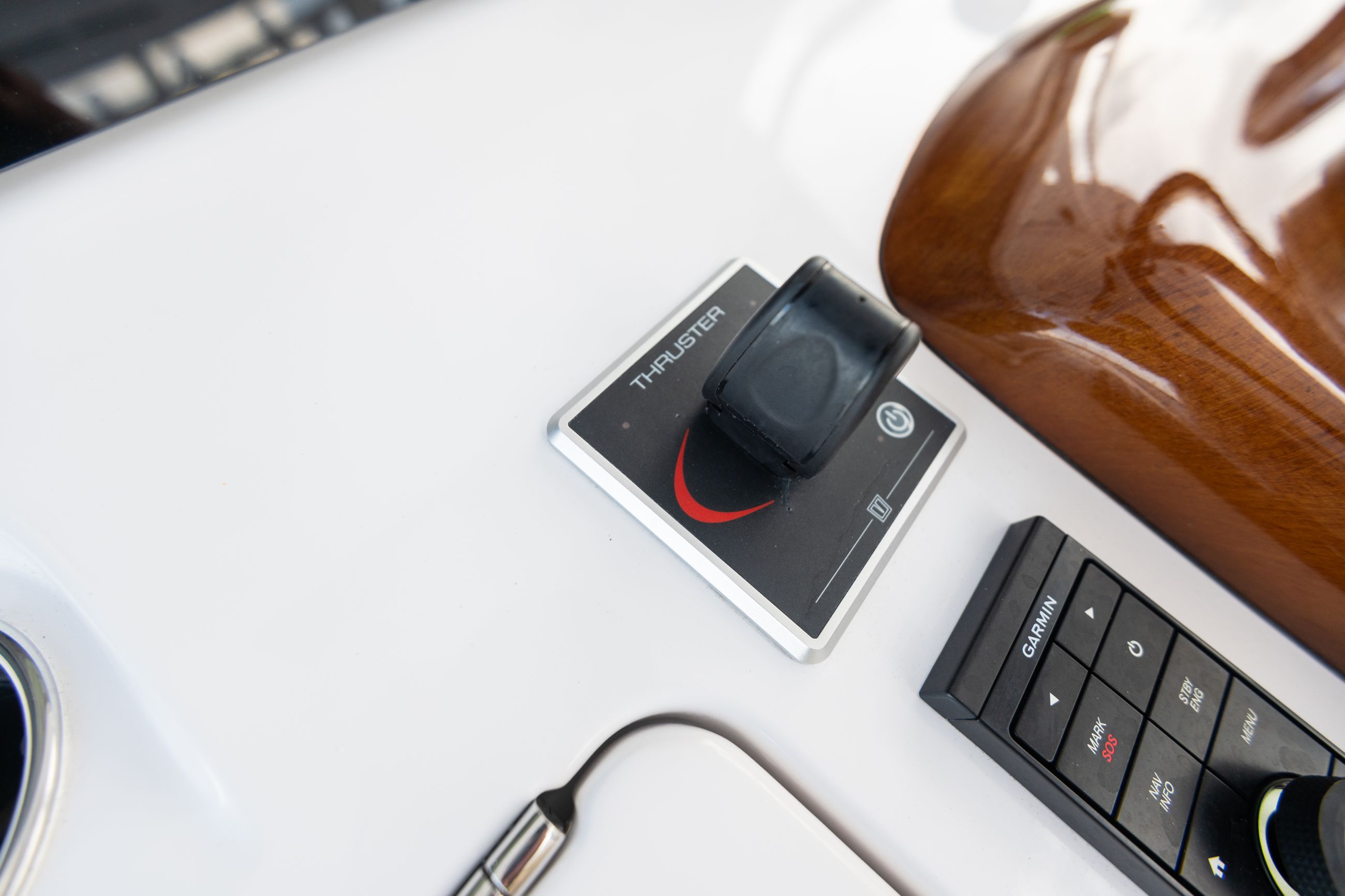

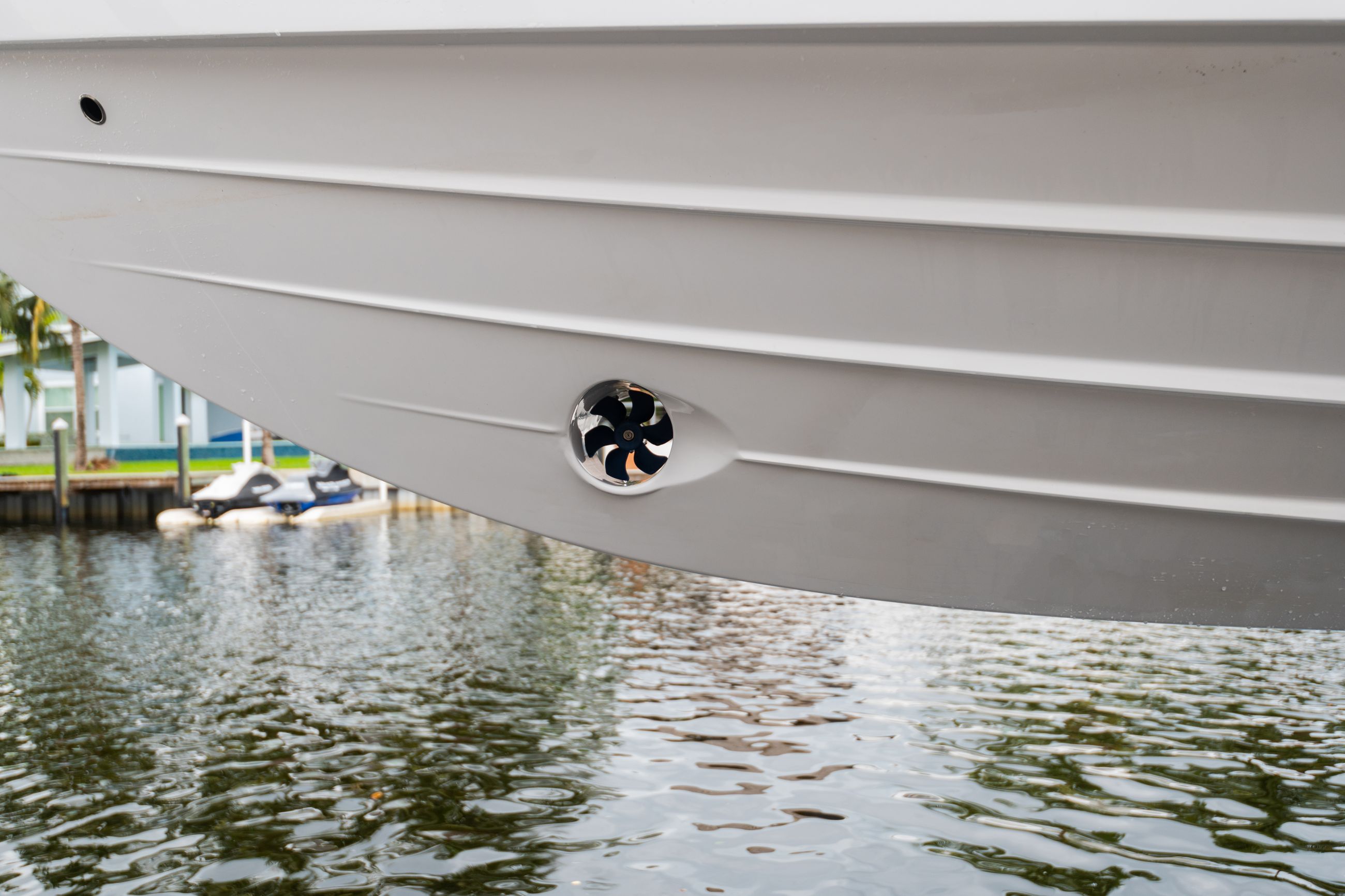

Vetus Bow Pro 571 Bow Thruster

The second is the Vetus Bow Pro 571 bow thruster which is designed to work in conjunction with the joystick to give you superior maneuverability. These two systems combined will give you confidence to dock and maneuver in any situation. We’ve also taken care of designing in access to the bow thruster for any maintenance or repairs.

Bow Thruster Motor

Bow Thruster Access

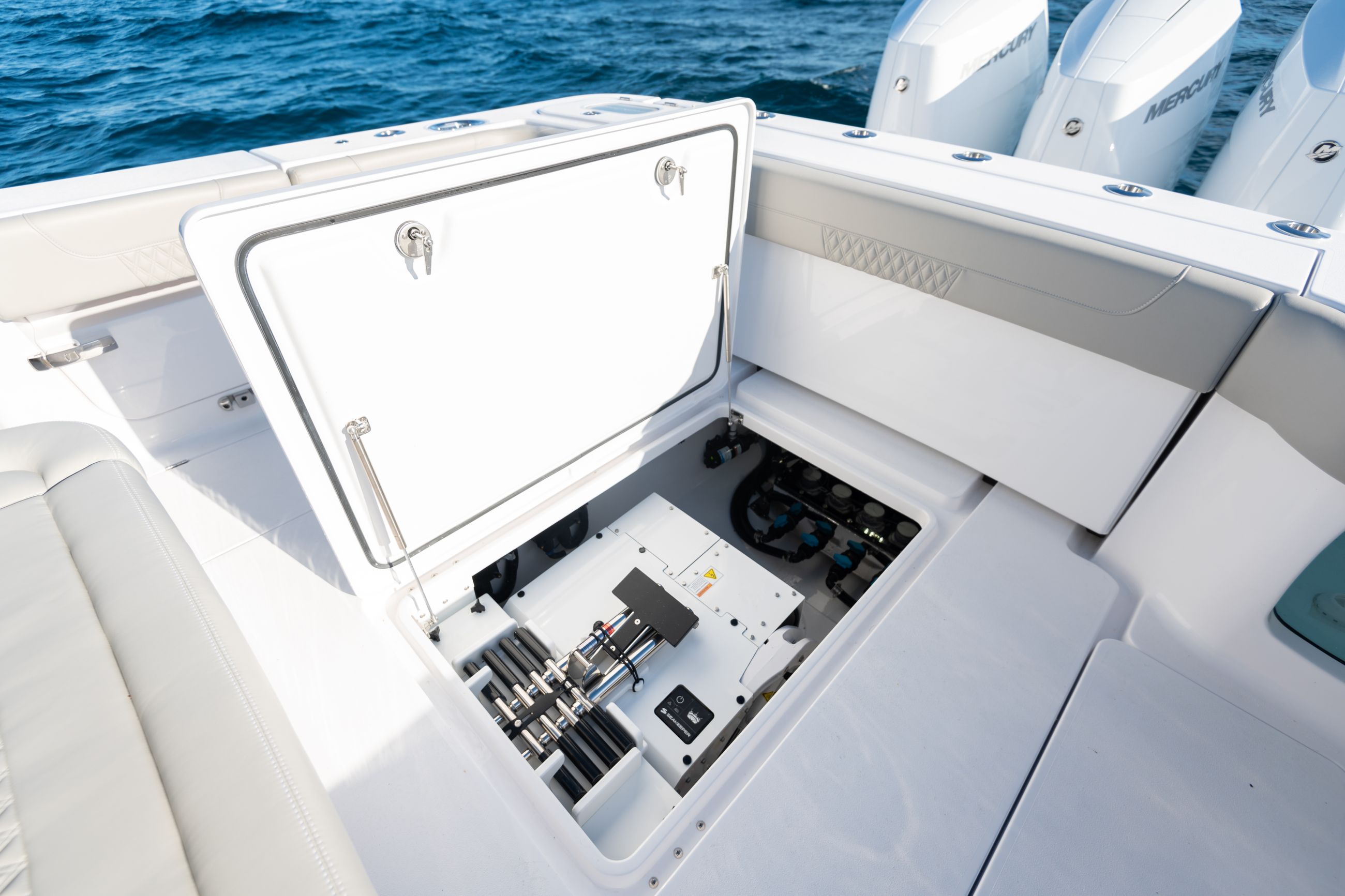

Seakeeper 3 Gyroscopic Stabilizer

Very few systems on the market fundamentally change the experience of offshore fishing the way a Seakeeper system does. Standard on the Phenom 37 is a Seakeeper 3 that was designed into a cradle pod in the stringer. The Seakeeper gyro eliminates up to 95% of roll on the boat and is a must have for offshore fishing. The large access compartment allows for the best access for maintenance and repairs.

Garmin OnDeck™ Boat Monitoring System

No modern performance center console would be complete without an onboard telematics system and for that we’ve equipped the Garmin OnDeck™ Boat Monitoring System. This system will allow you to monitor your Phenom 37 from anywhere in the world from your phone.

Optional FLIR M332 Thermal Camera

Topping off the list of options is a FLIR M332 thermal camera that will allow you to navigate in complete darkness safely. This model includes a gyro to stabilize the picture for the crispest image on the screen.

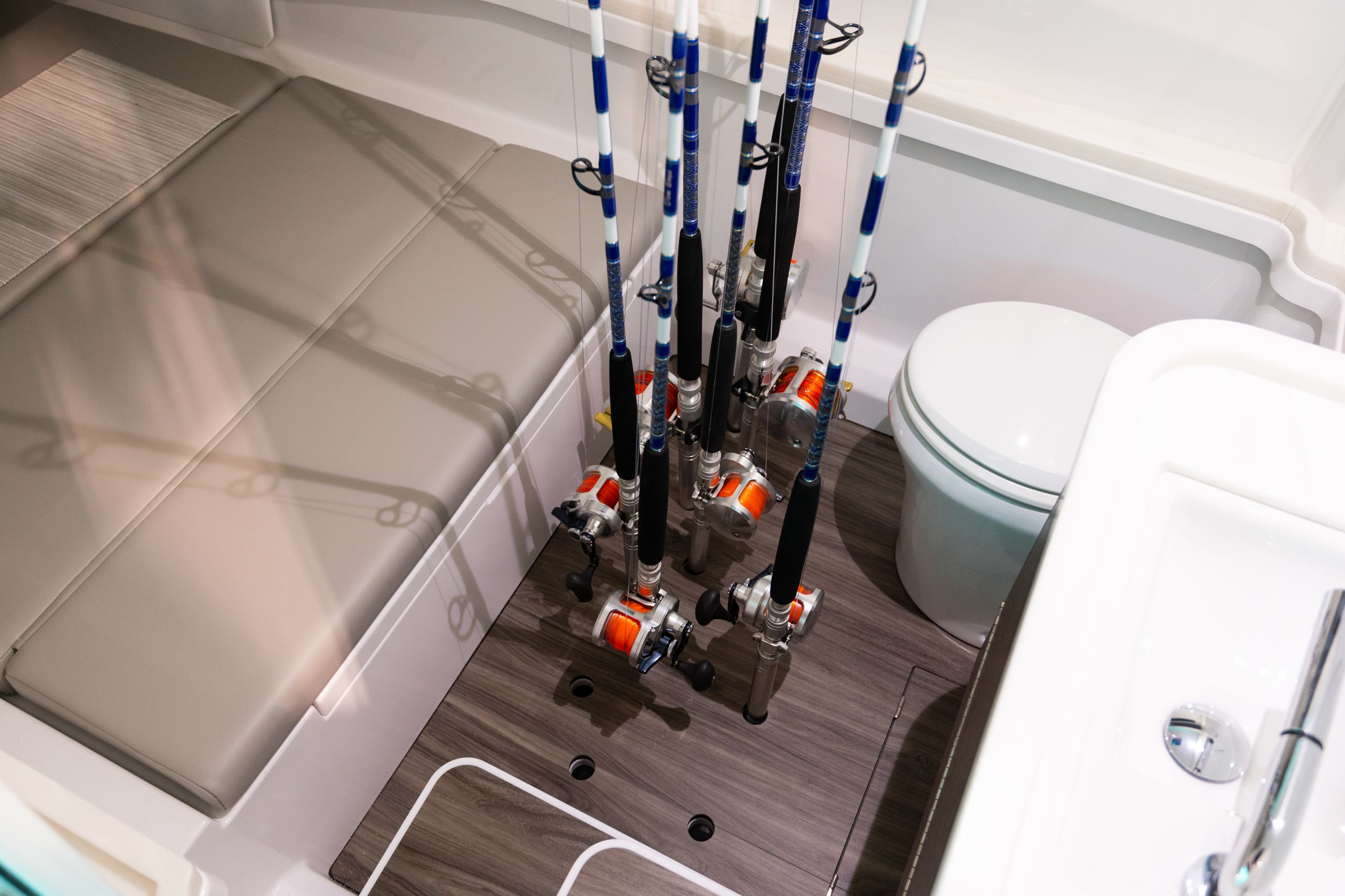

Designed-In Console Rod Storage

Before we wrap up the fishing amenities, there is one more useful option that we’ve designed in and it is inside of the console. As part of your personalizations, we have a separate version of the console floor that allows for the safe storage of up to 10 rods. You can put your rods away for travel or overnight while at the dock.

Harmony is achieved in every direction with attention to detail to the highest degree. The curves and angles of the shearline tell the story of the character and boldness that the Phenom brand embodies. Phenom captures a timeless statement of elegance with an edge to represent the performance and high-precision engineering designed and built into every single one. Every detail of the Phenom 37 has been designed to provide a distinctive and luxurious experience on-the-water. With custom details throughout, you will enjoy a sleek and stylish center console yacht that is one of a kind in design.

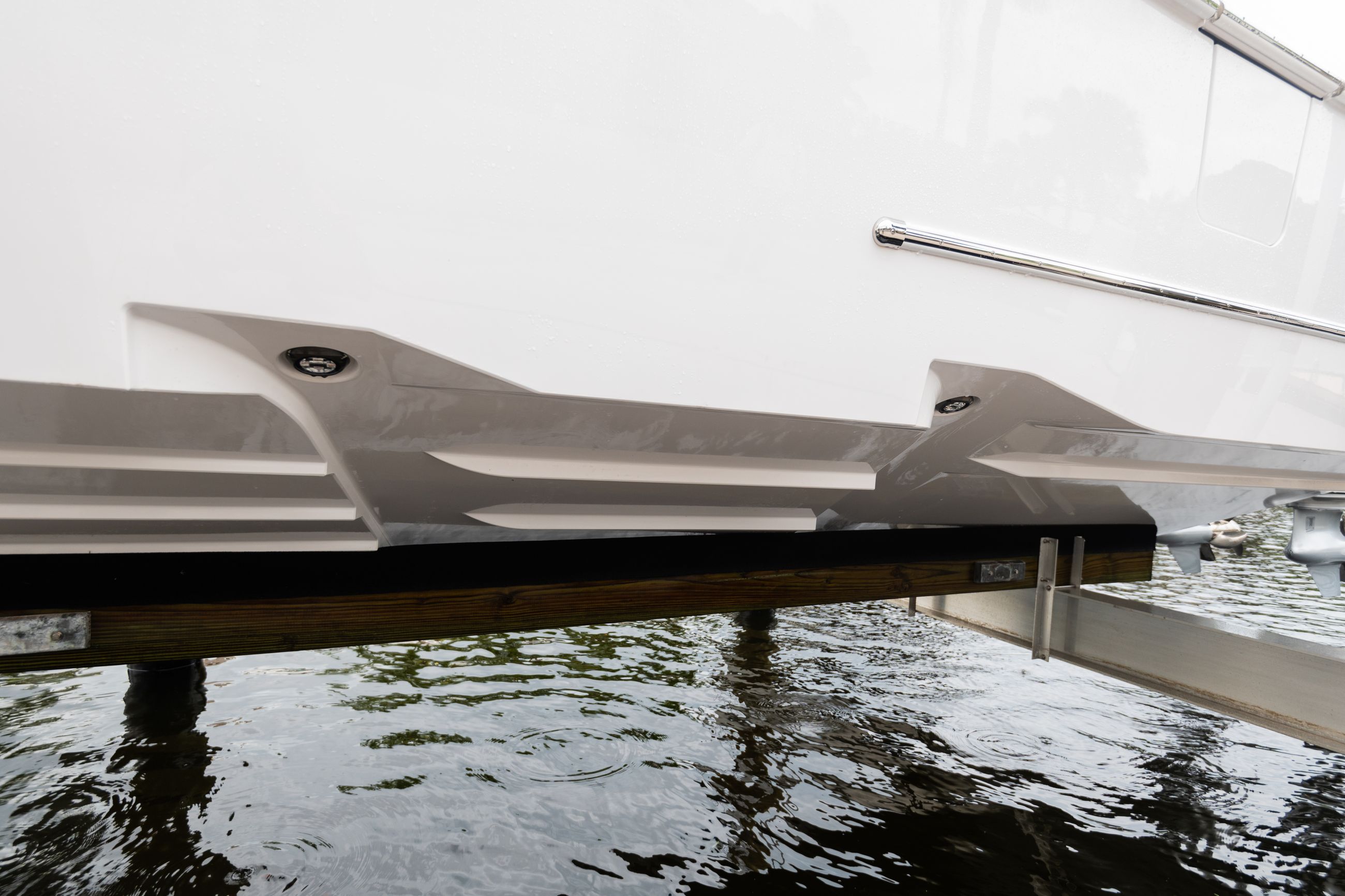

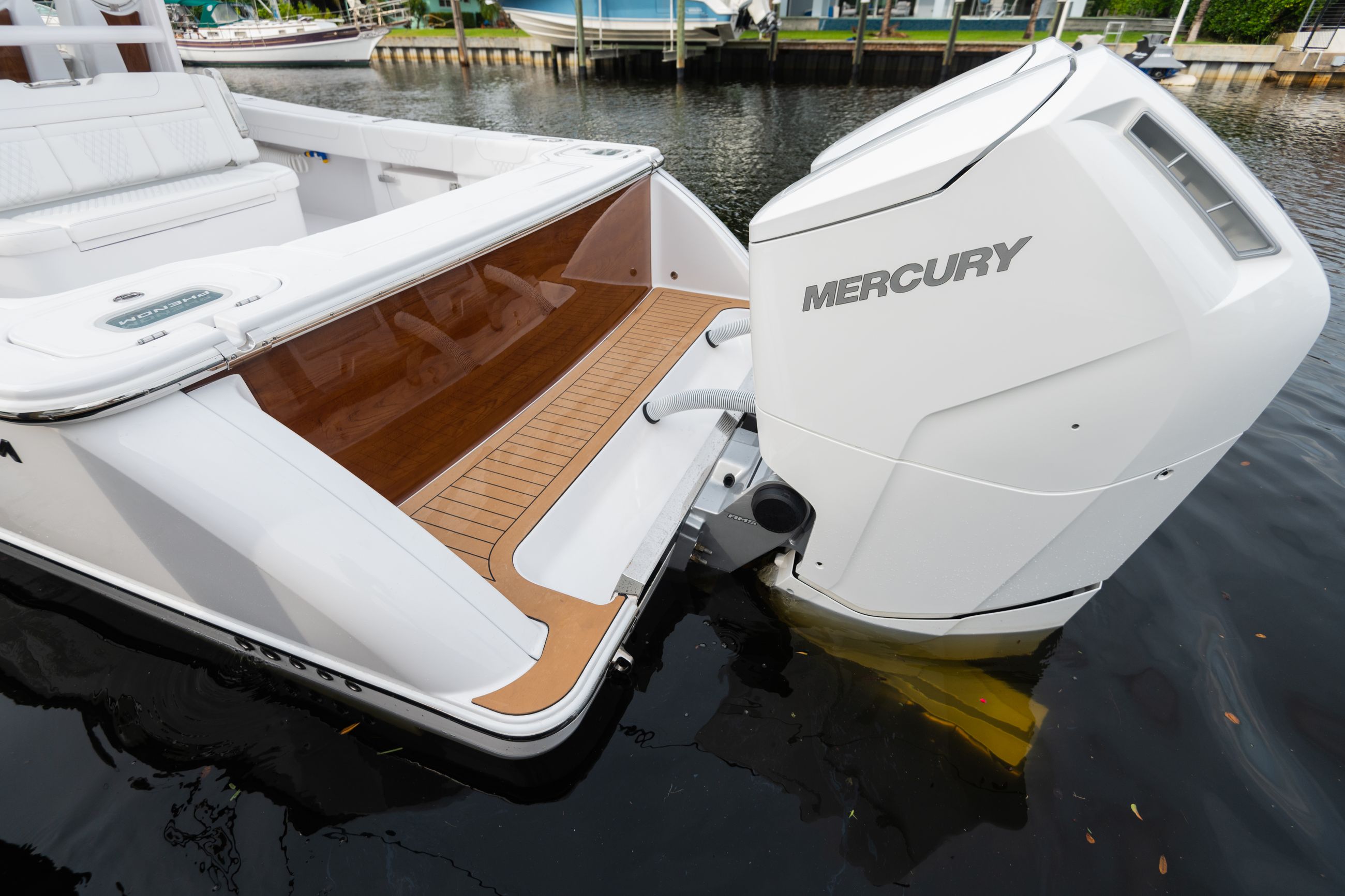

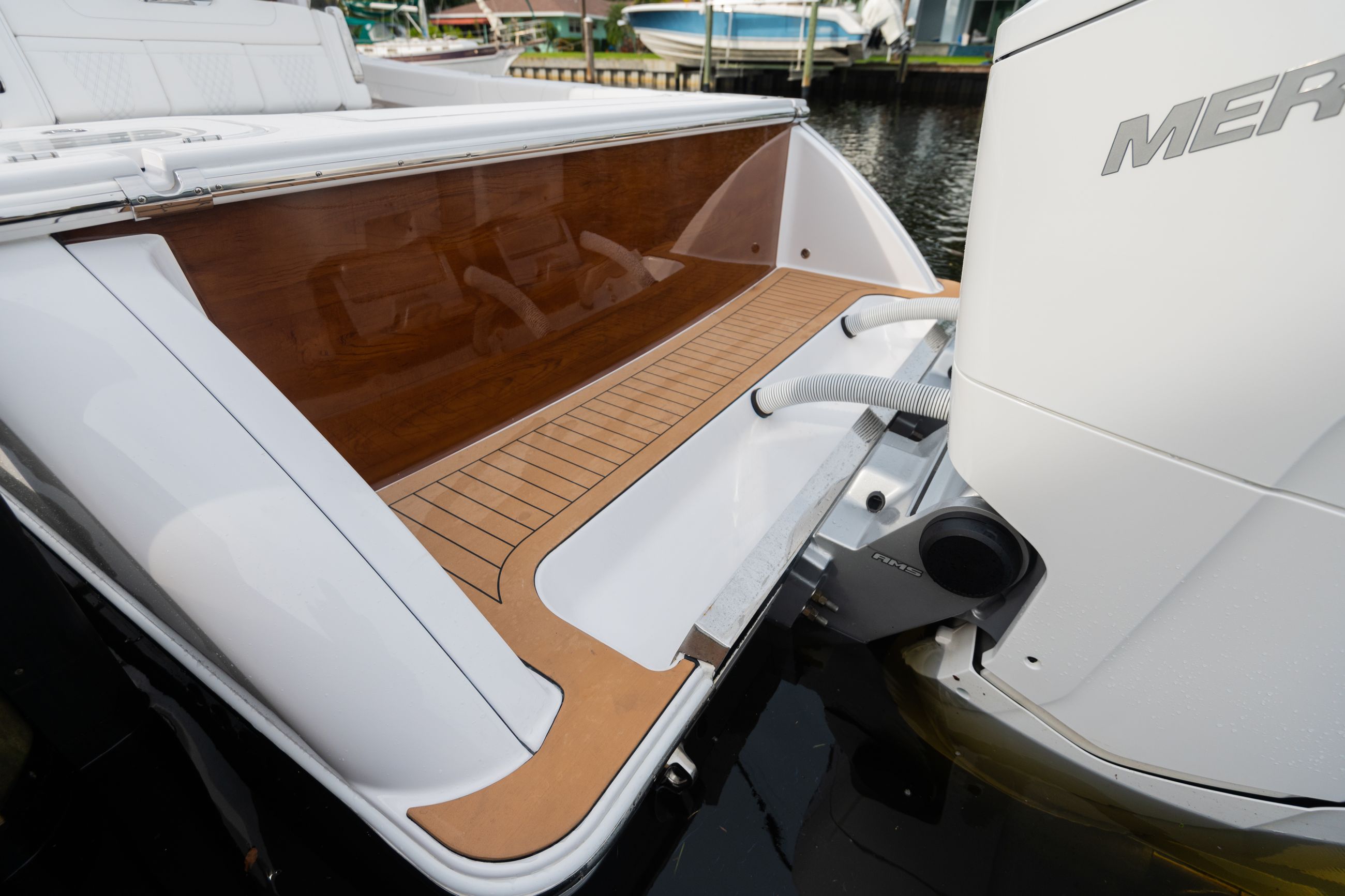

Tumblehome Design with Bustles

The aft area features a tumblehome design with bustles at the transom. Along the sides, a sleek stainless steel hull guard rub rail adds to the elegance.

Premium Gelcoat Hull Colors

Every Phenom 37 features a premium gelcoat hull side color in several standard colors with personalizations available upon request.

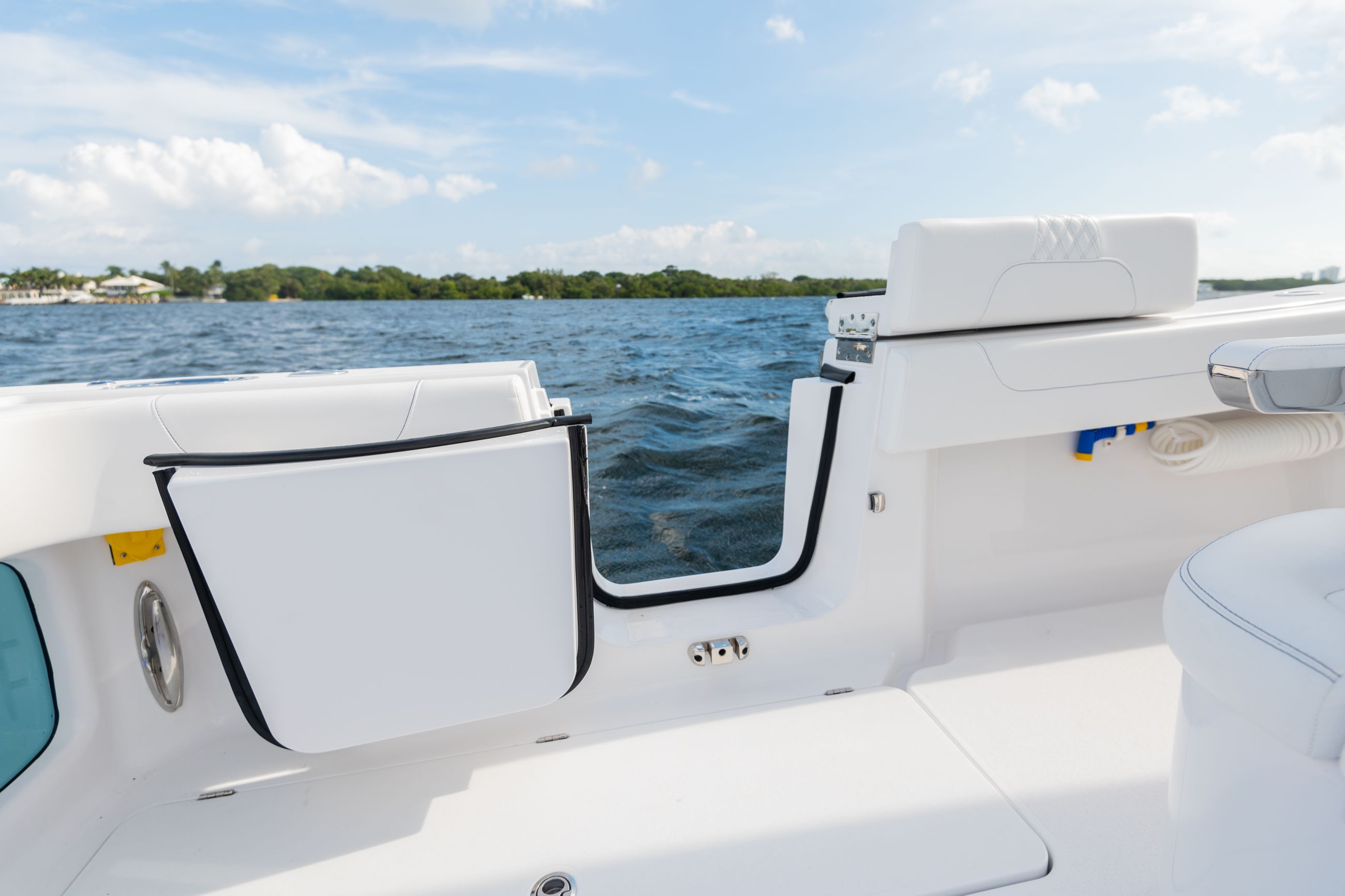

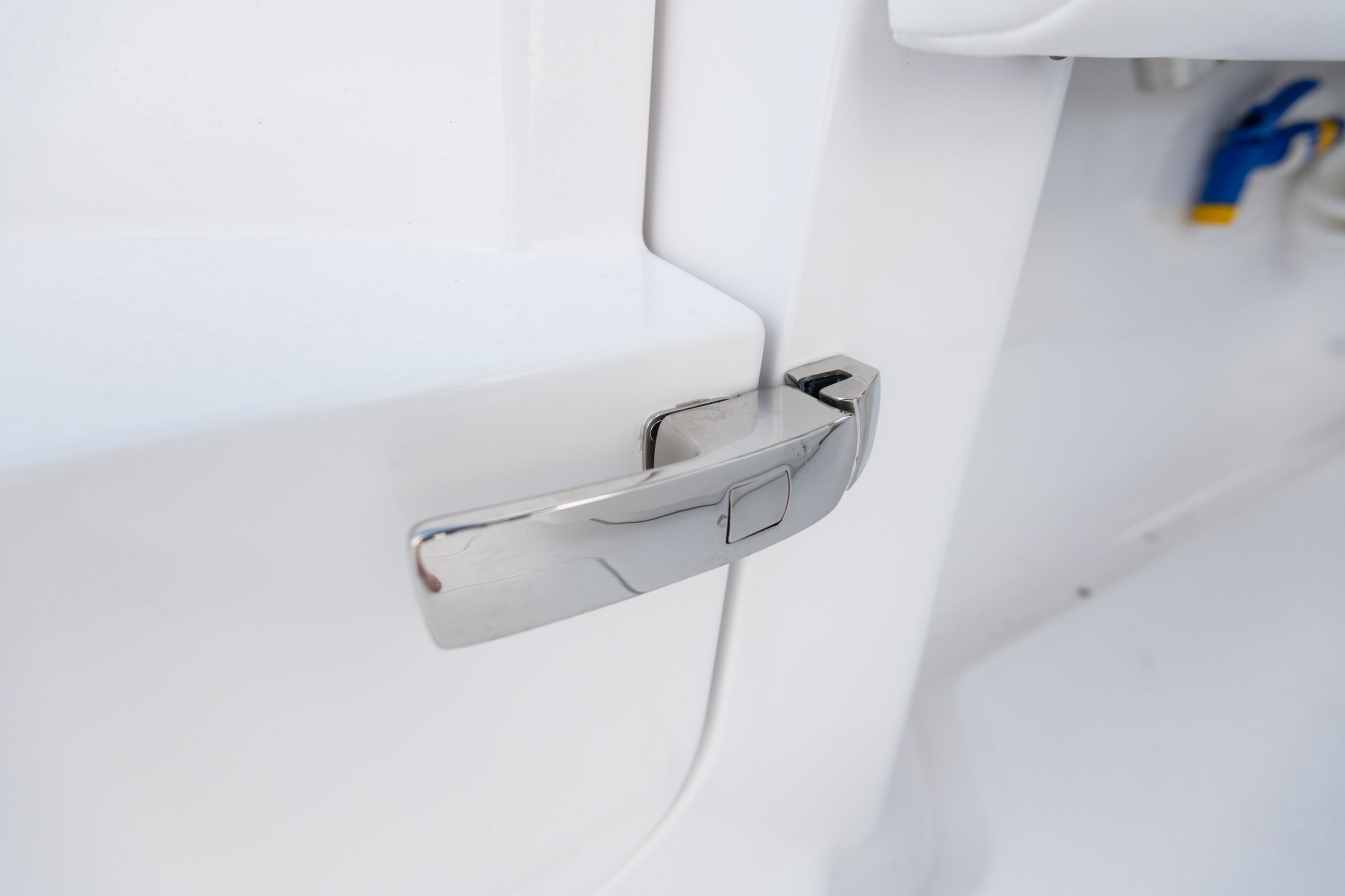

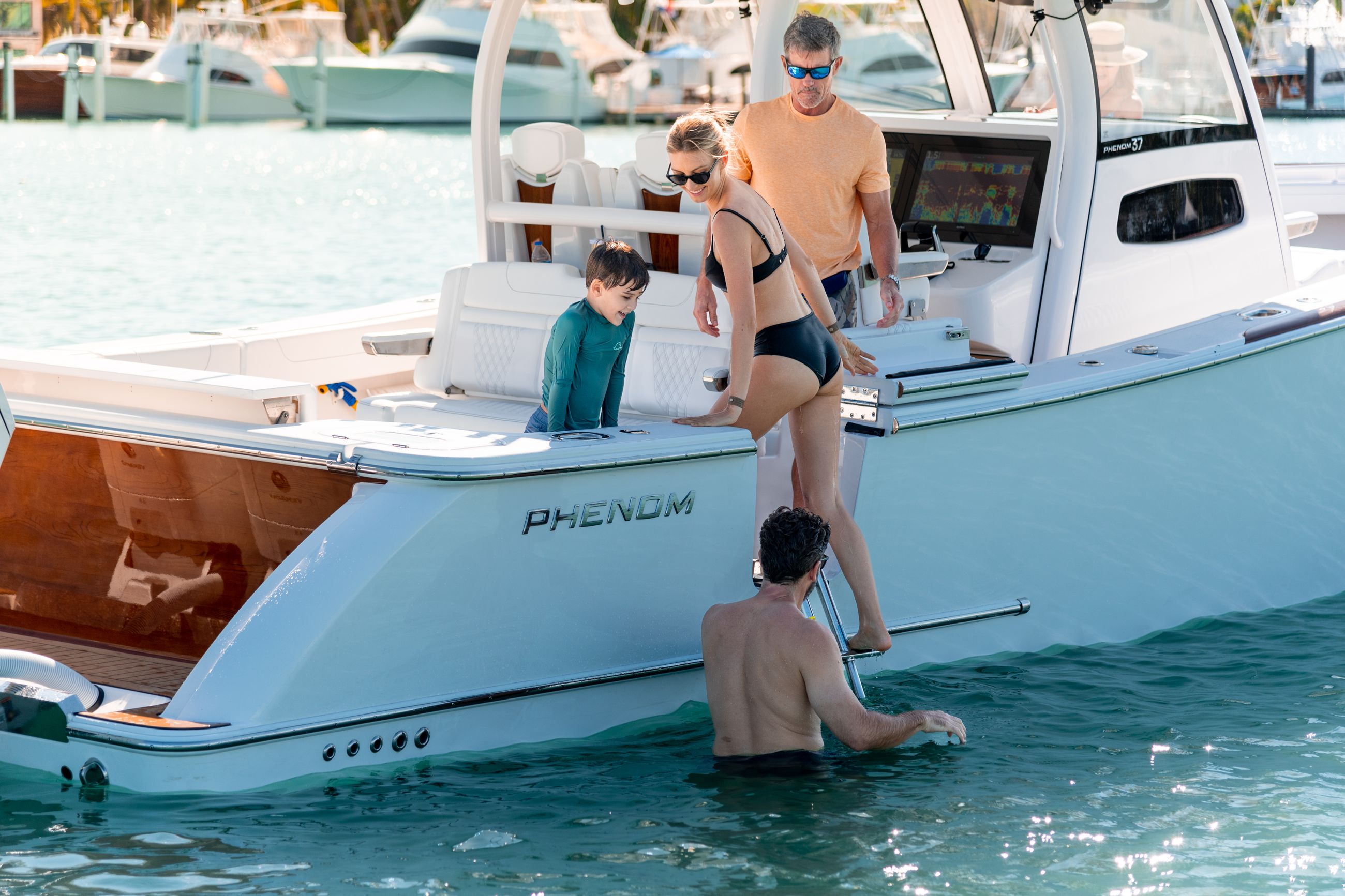

Twin 2-piece Side Entry Doors

The stylish hull sides reveal the 2-piece side entry doors on both port and starboard with removable ladder.

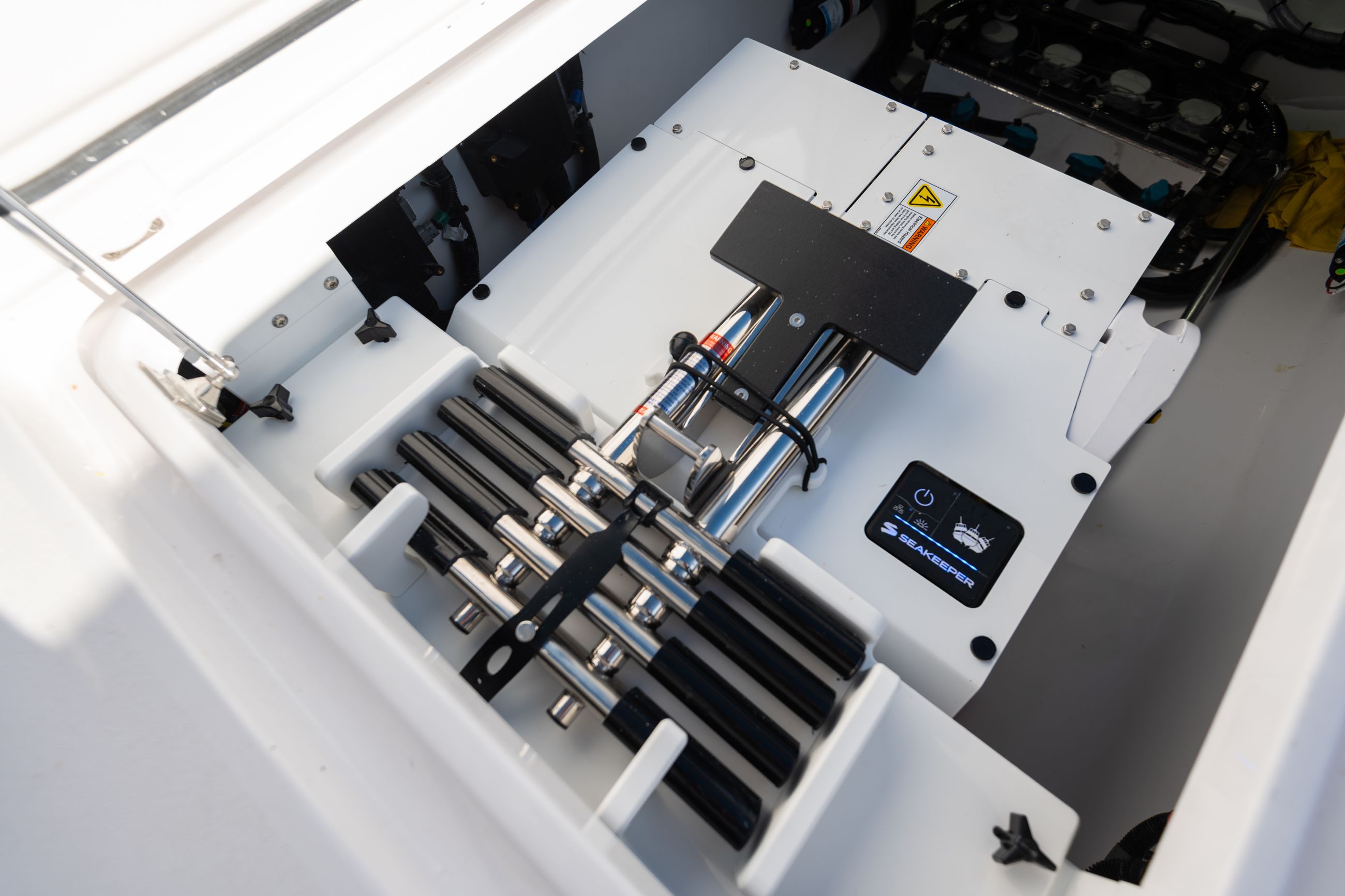

Side Entry Door Ladder Storage

Conveniently located above the Seakeeper, you will find the removable ladder that can be used for any of the side entry doors.

Side Entry Doors Open

Side Entry Doors Closed

Side Entry Doors Open Interior

Side Entry Doors Closed Interior

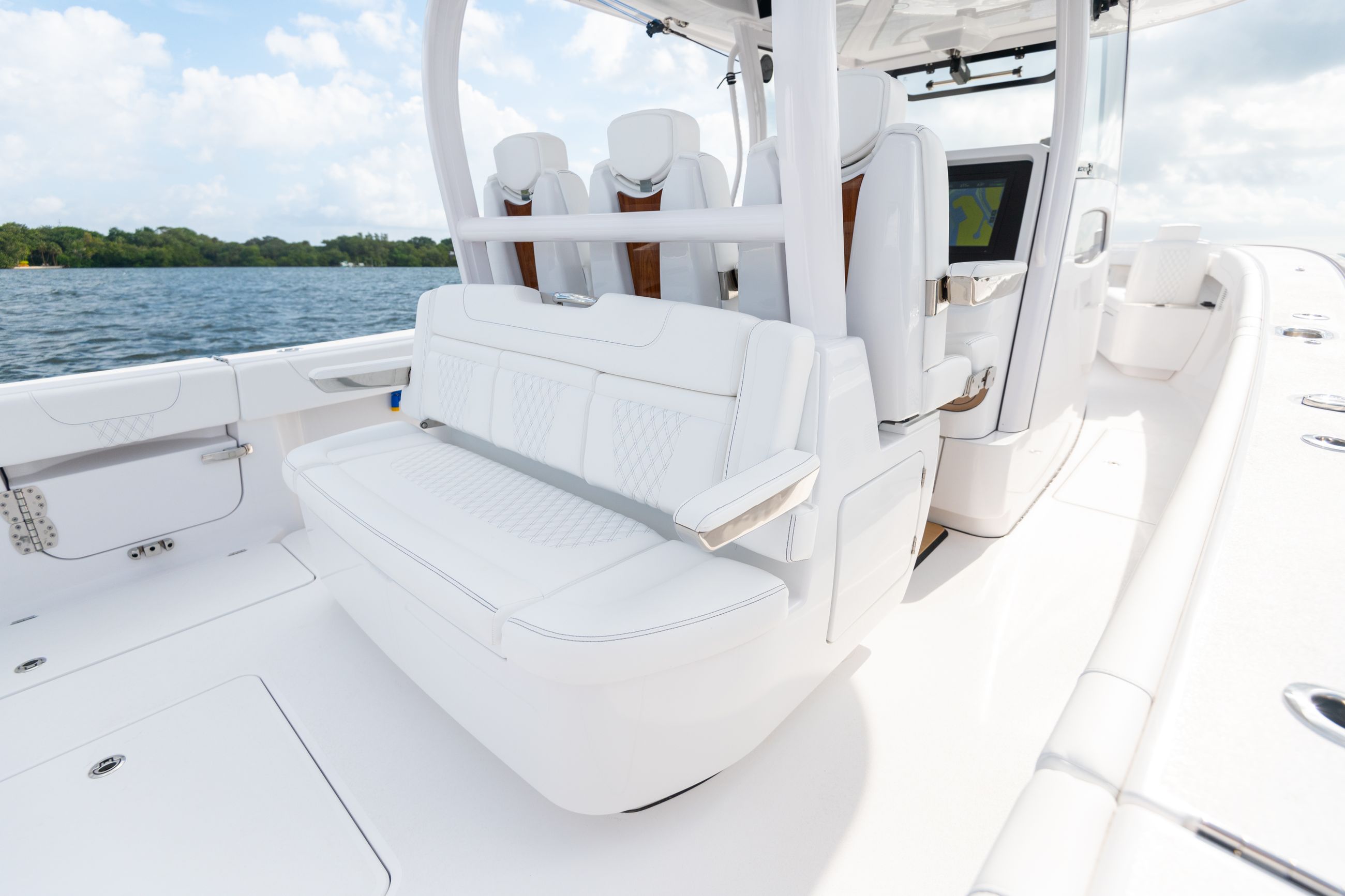

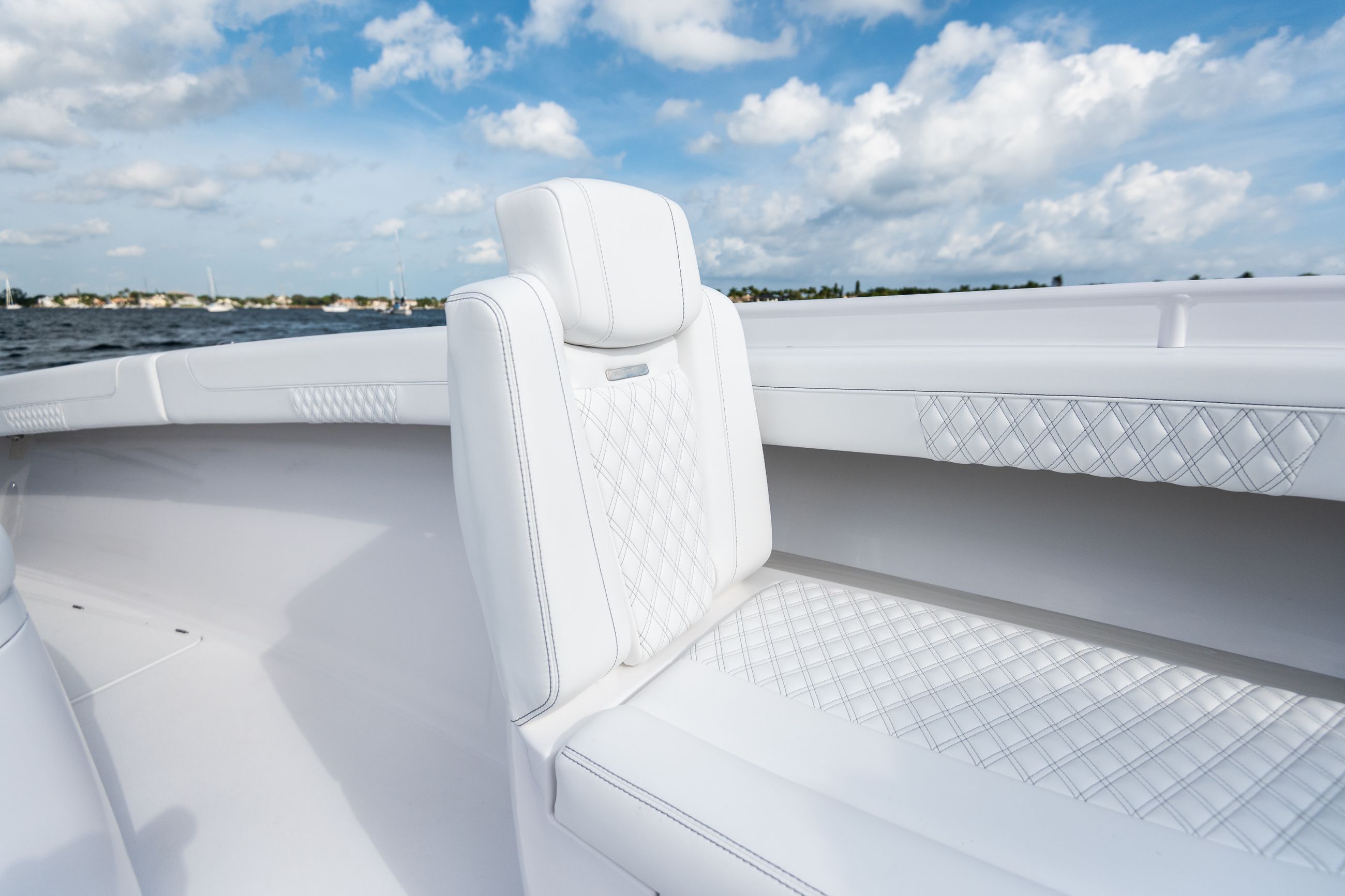

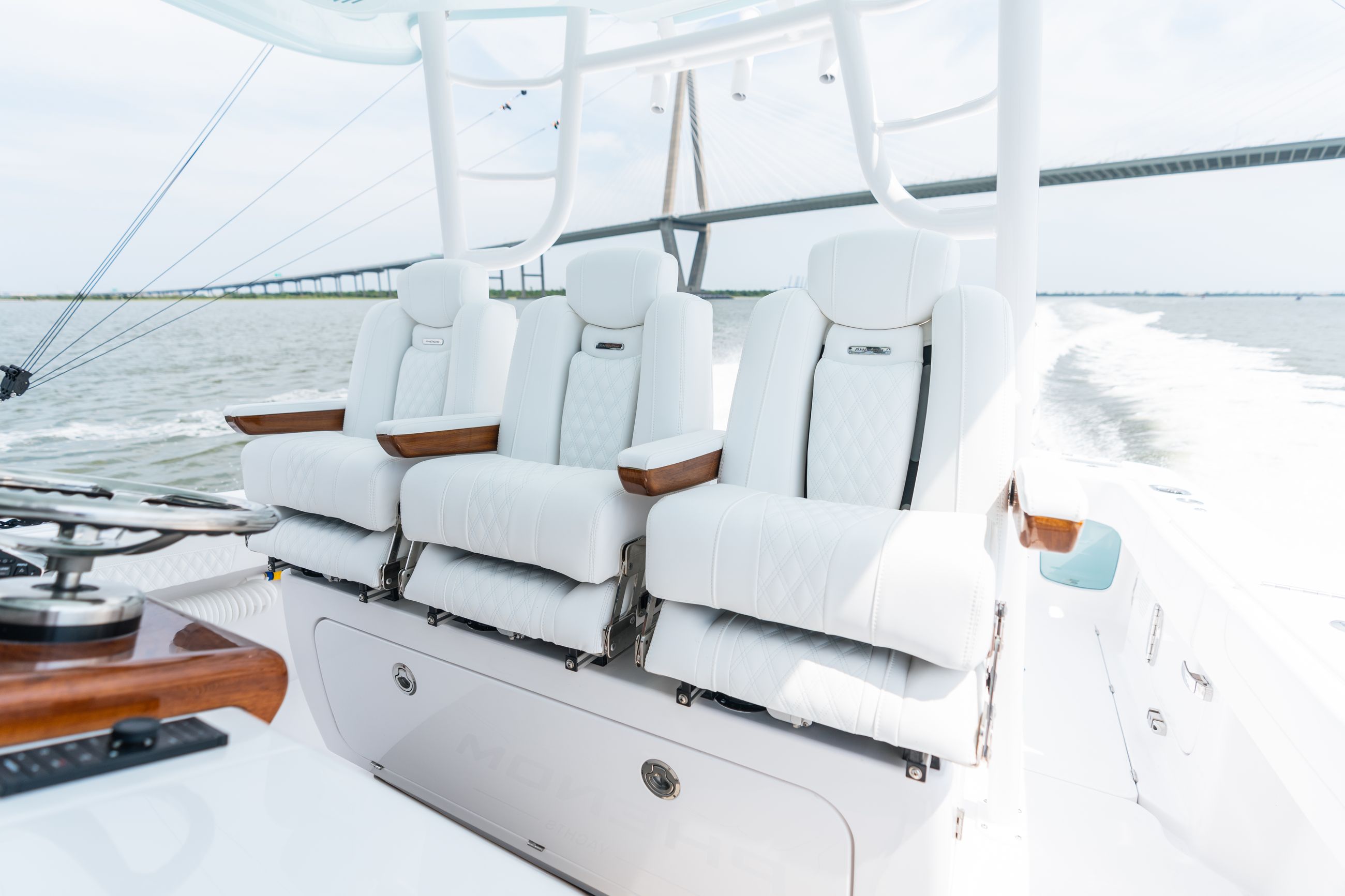

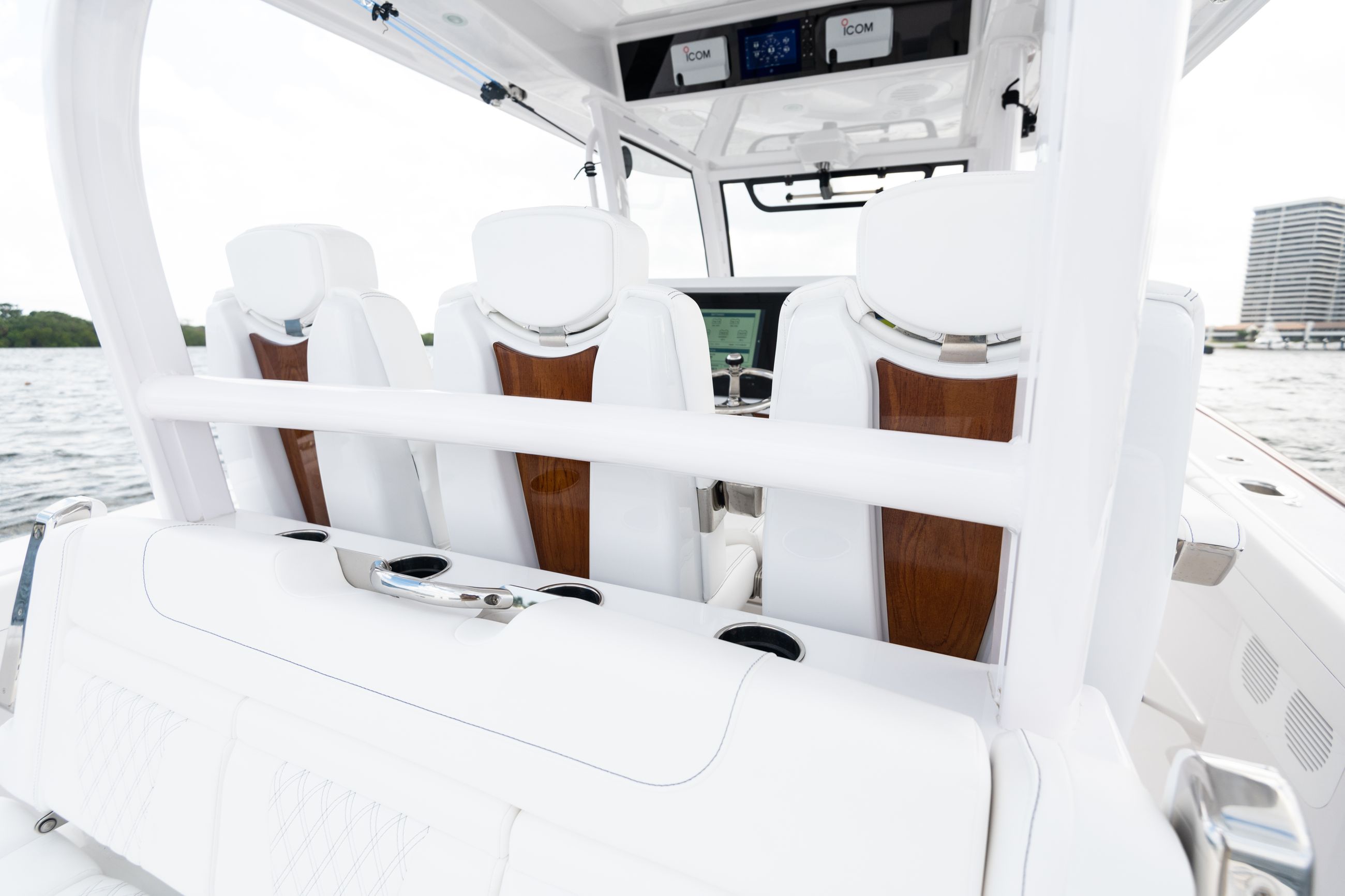

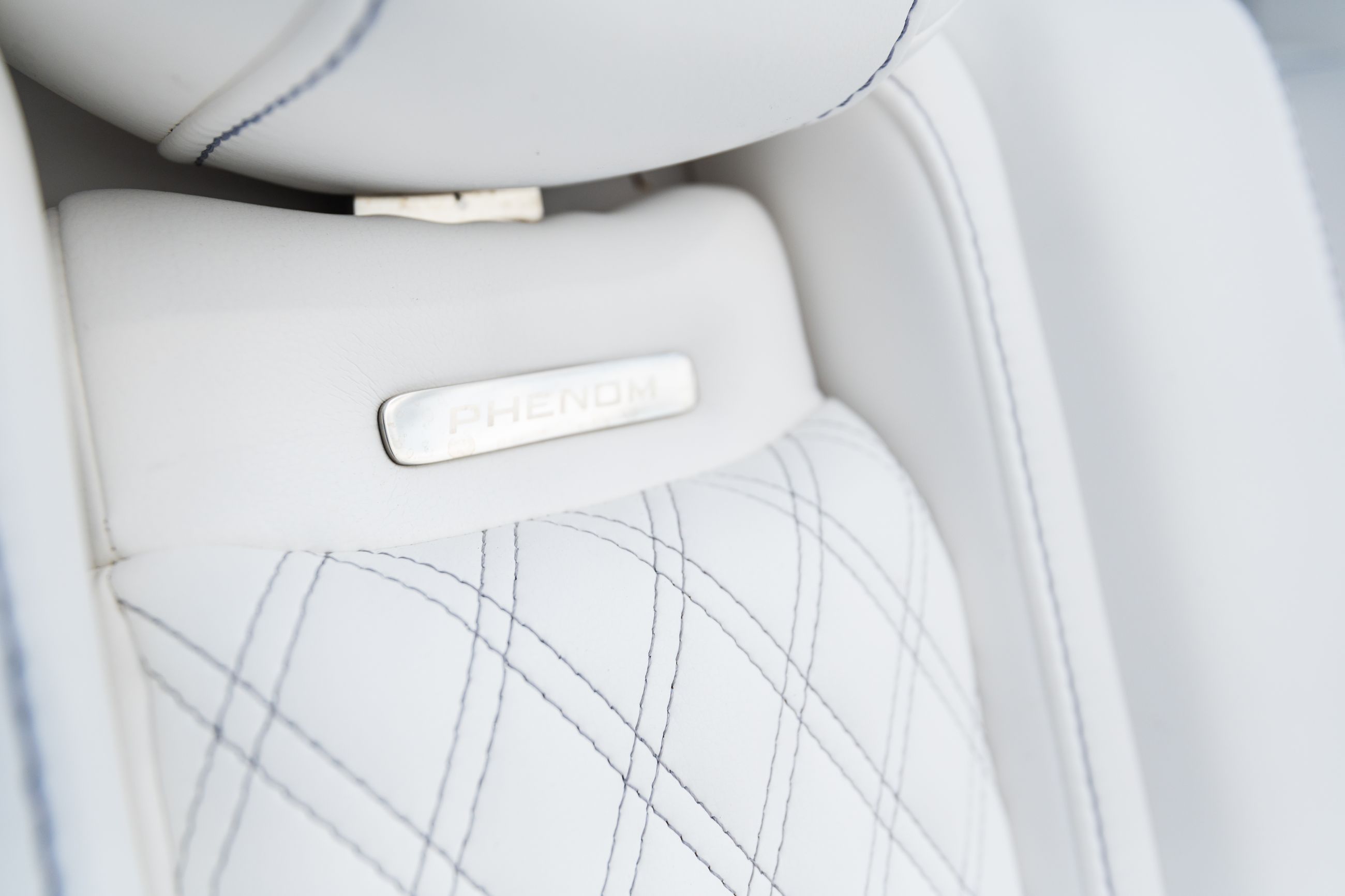

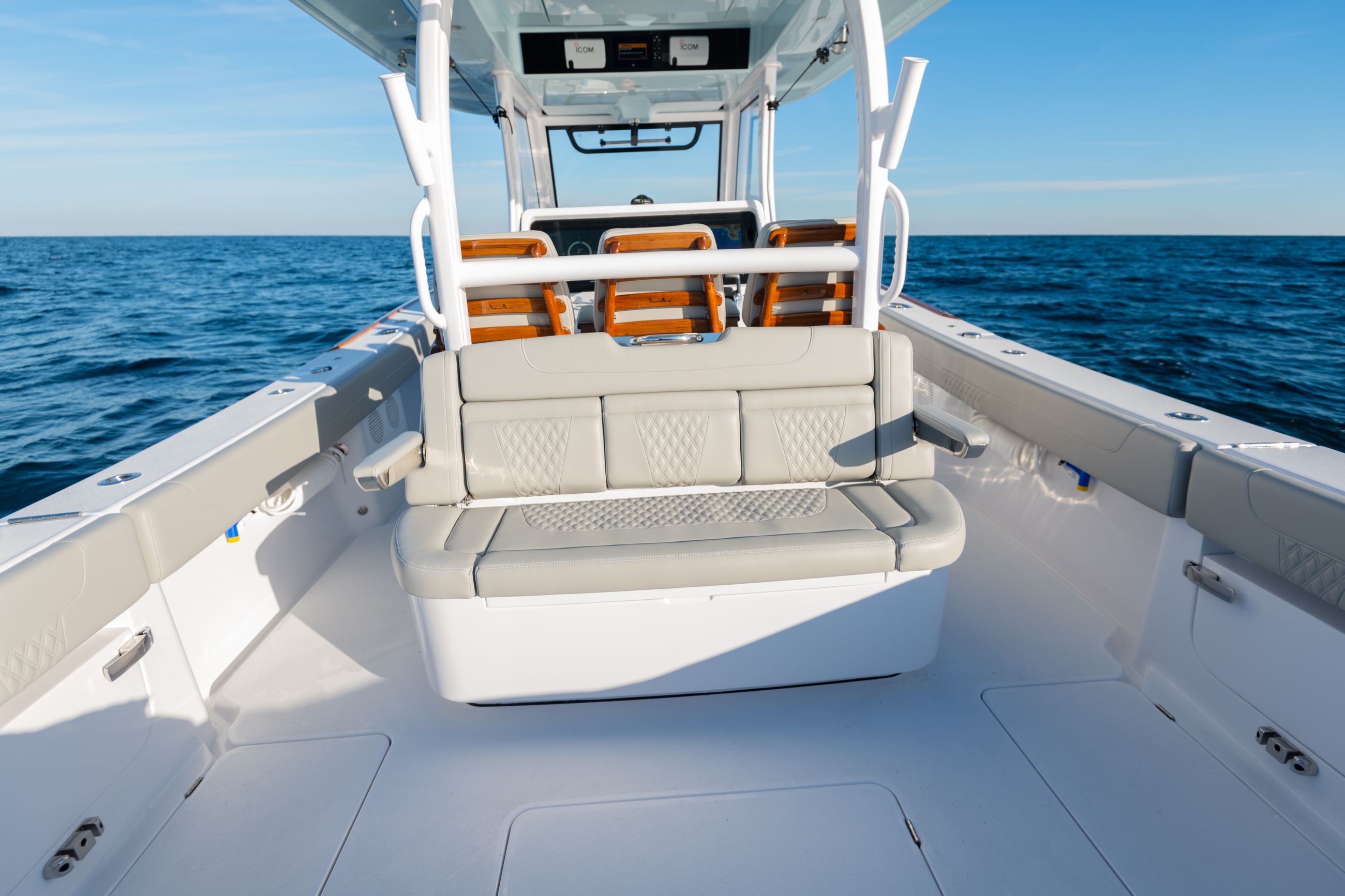

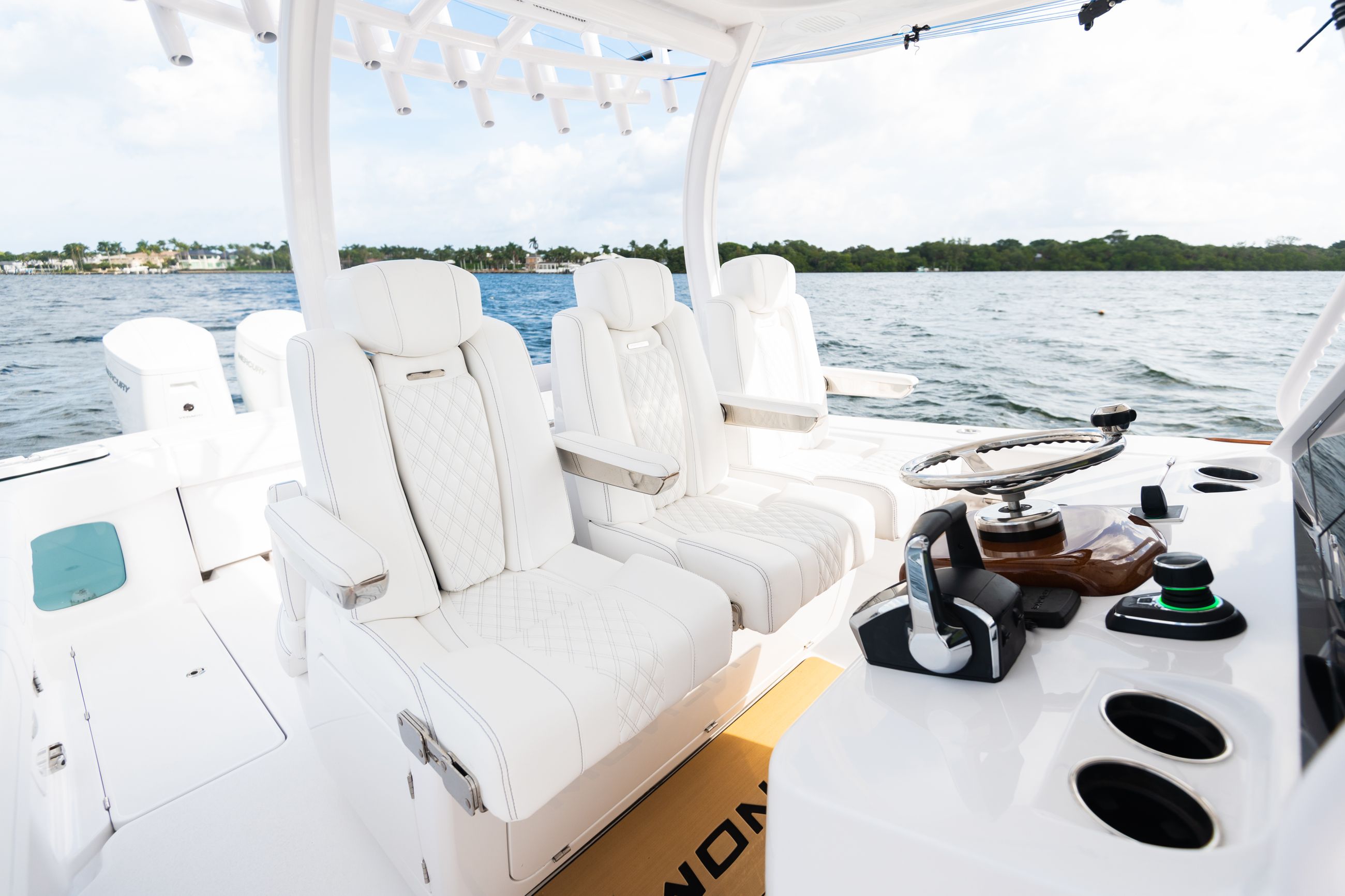

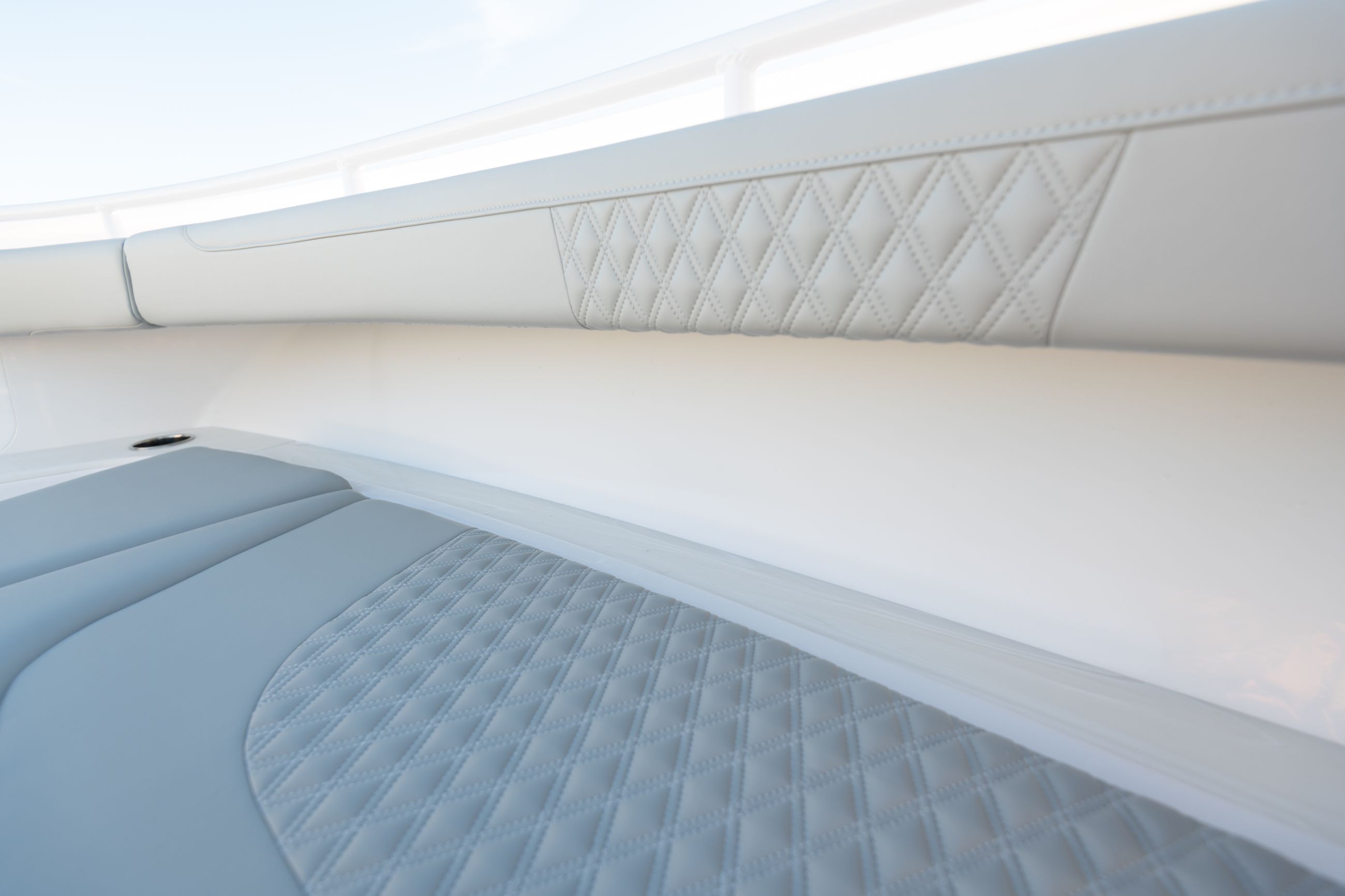

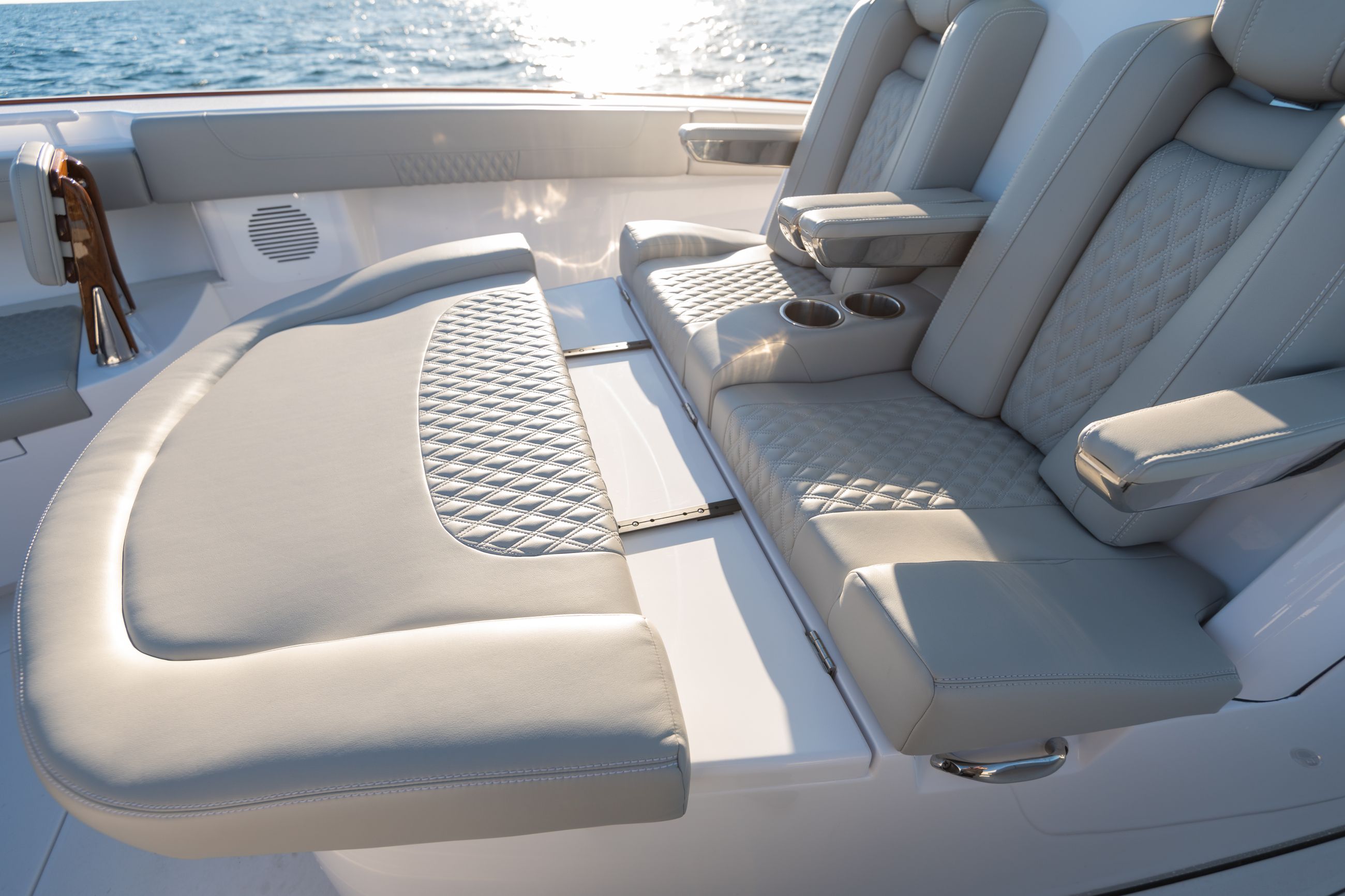

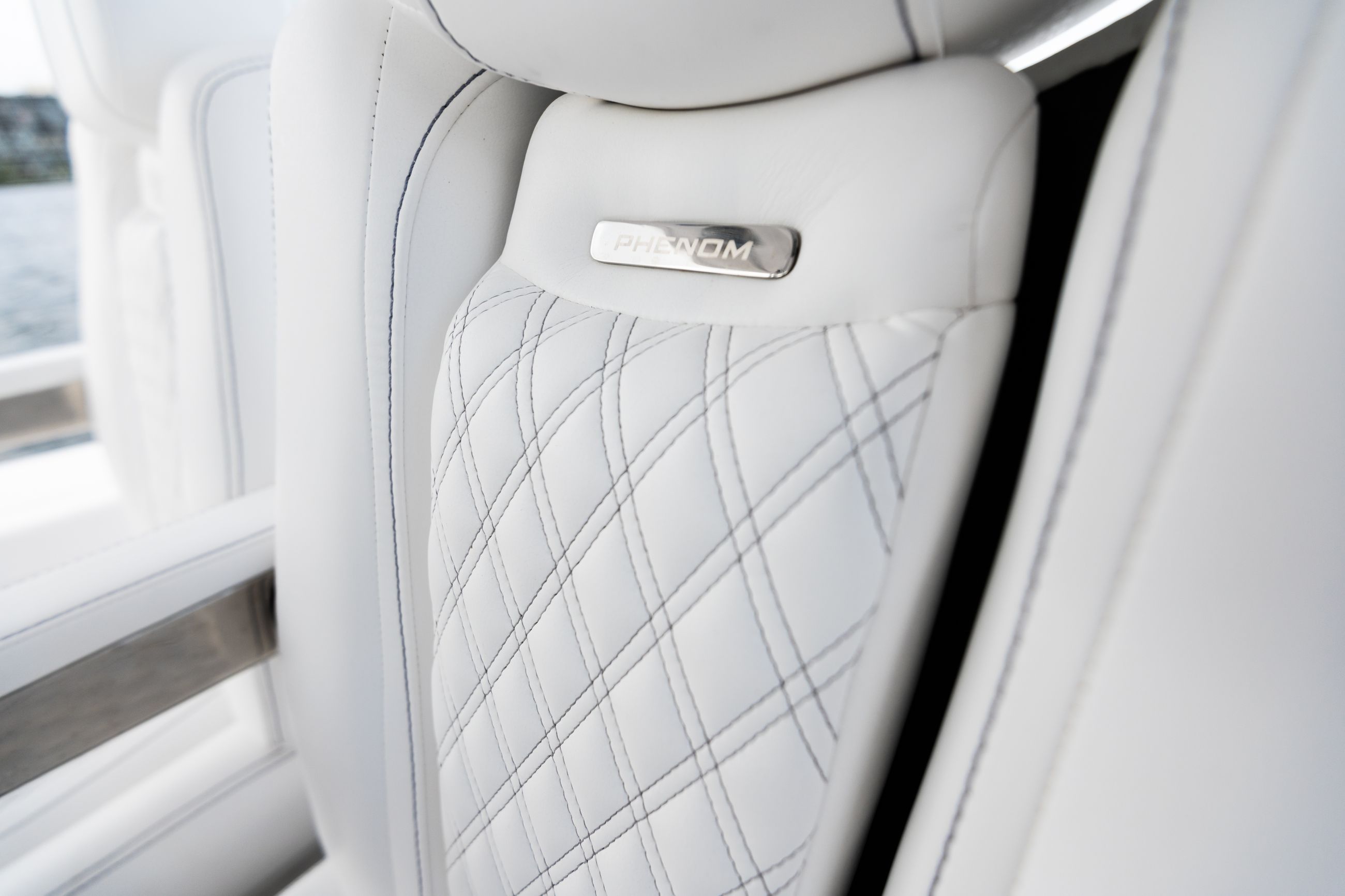

Curated Materials by Sileather®

Curated multi-texture materials by Sileather® can be found throughout the cockpit and down below deck with a plush and soft feel. Great care was taken to every single seat on the boat to ensure the most comfortable and ergonomically correct seating position.

When it comes to entertainment, the Phenom 37 comes to life. Let’s kick things off with a walkthrough of the sound system on this boat.

Garmin Fusion Apollo RA770

Driving the sound system is a Garmin Fusion Apollo RA770 head unit with a full-function remote at the bow. The head unit is concealed inside of the console glove box and has full integration into the Garmin displays.

JL Audio M6 Speakers

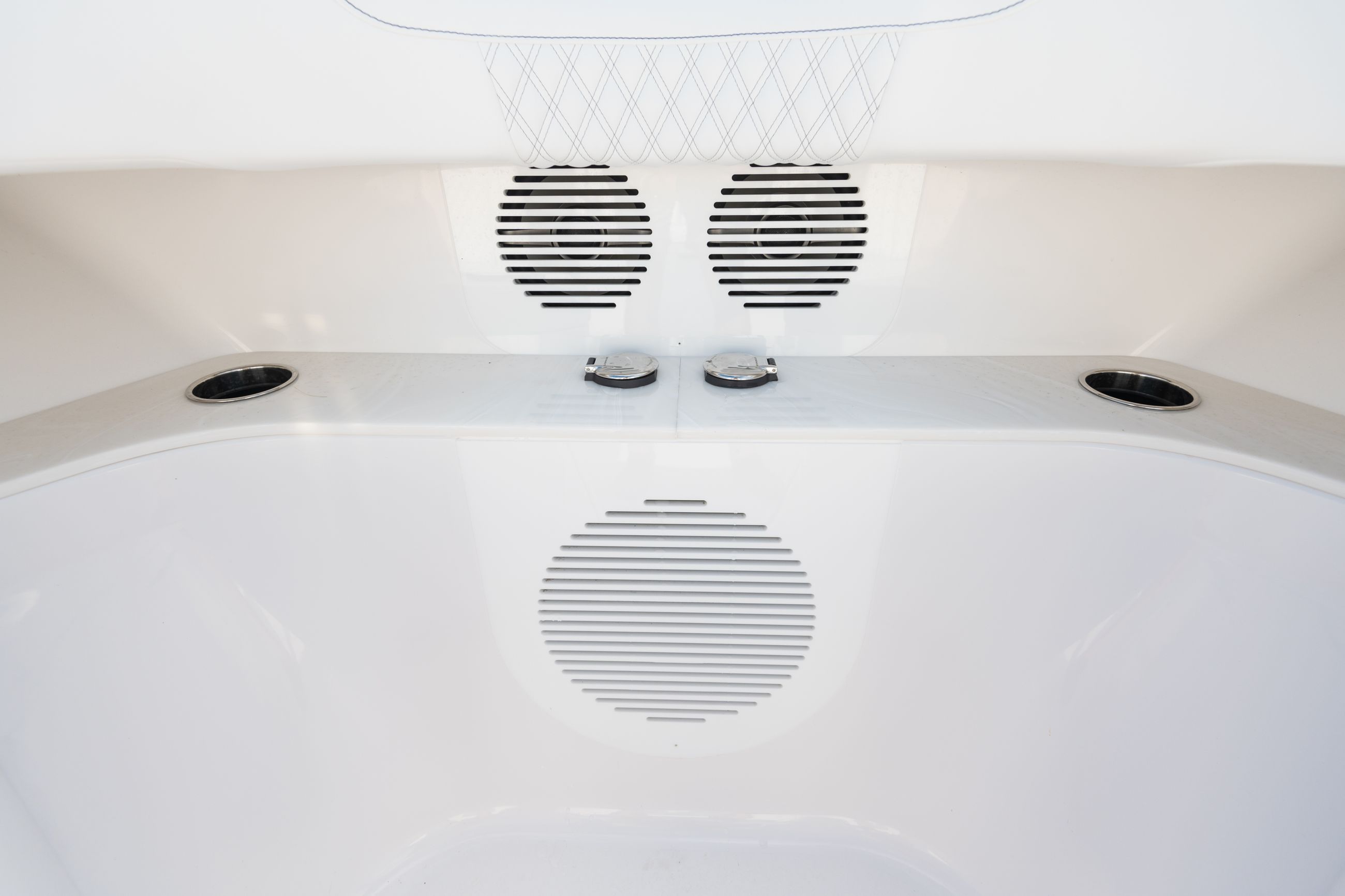

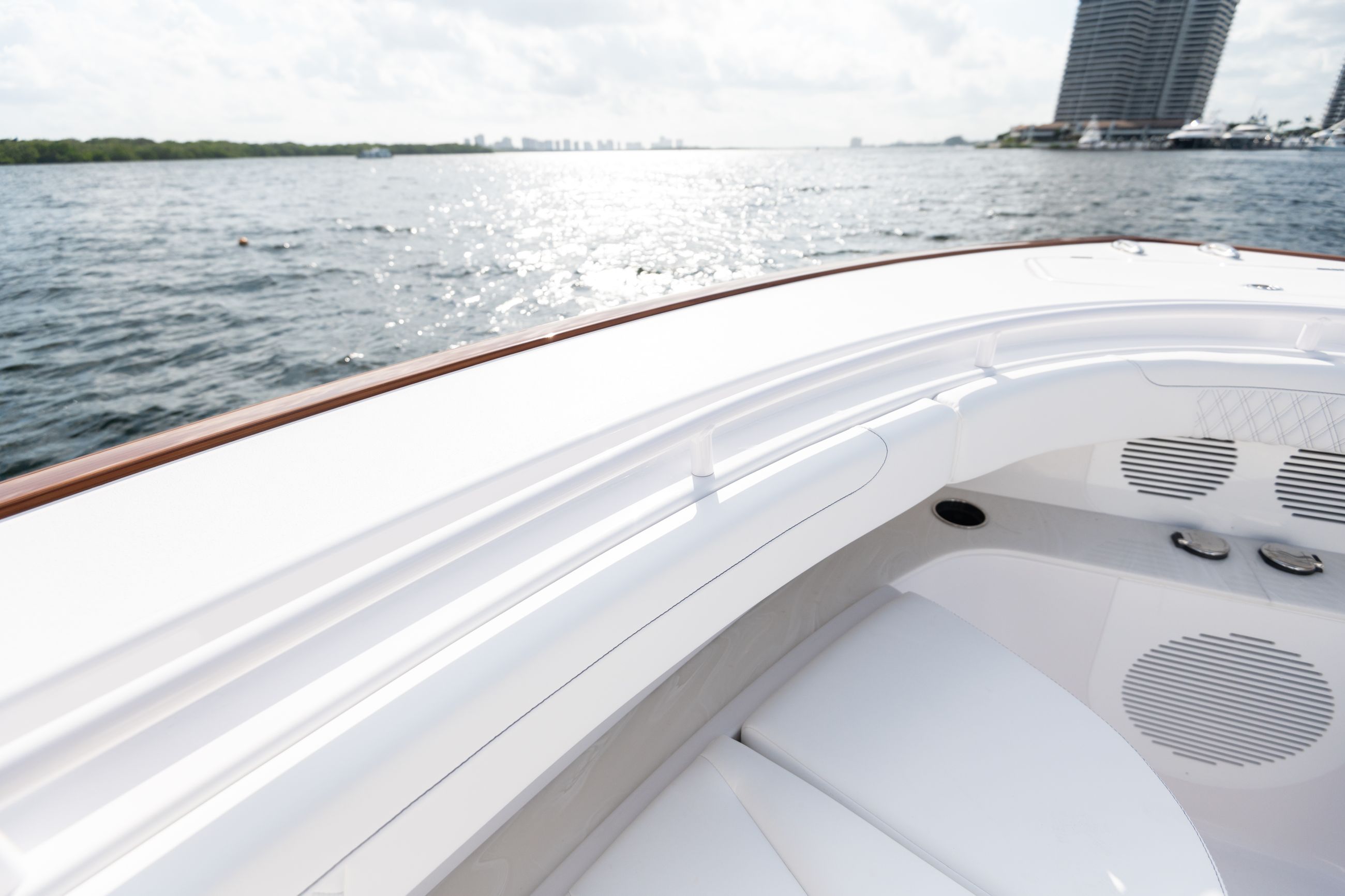

Throughout the cockpit, there are JL Audio M6 speakers but we’ve gone a step further in integrating them into the deck. The innovative integrated speaker grille covers looks amazing throughout the cockpit and keeps every surface clean, uniform and free of clutter.

Speaker Breakdown

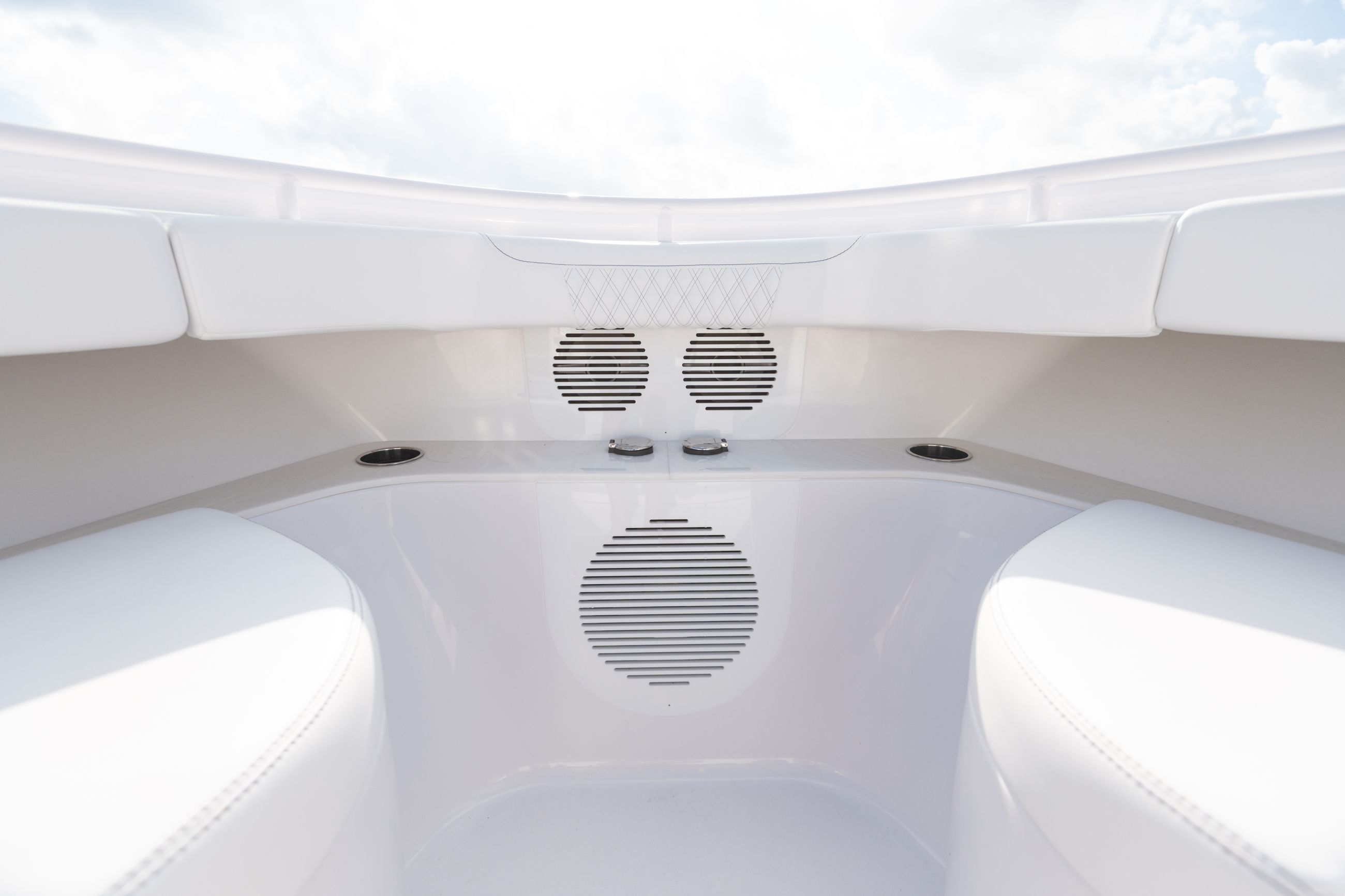

For speaker breakdown, at the bow we have 2 M6 880 speakers and a 12-inch sub. Moving aft, there’s another pair of 880s behind the bow backrests. At the mid-ship plenums, you will find a pair 8-inch subs and a pair of 880 speakers. We wrap up the cockpit with another pair of 880 aft of the dive doors. Up top, we have 6 M770 with color matched grille covers.

What's included

JL Audio M6 12” RGB Subwoofer

JL Audio M6 8” Sub RGB Speakers (2)

JL Audio M6-770 Coaxial RGB Speakers (6 – Hard-Top)

JL Audio M6-880 Coaxial RGB Speakers (8)

JL Audio MVi Amps w/ Built-in DSP

JL Audio MVi amplifiers with Built-in DSP

Powering these speakers is JL Audio’s state of the art MVi amplifiers with built-in DSP. This system has been hand-tuned by the team at JL to deliver the truest sounding system on the water. Every speaker is equalized to deliver the perfect sound in its environment and the result is impressive.

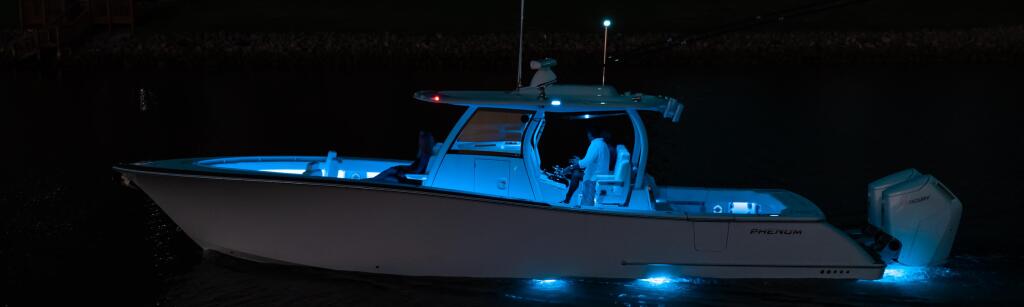

When it was time to light up the cockpit and underwater, we looked no further than Lumitec, the industry’s leading lighting experts.

Underwater Lights On The Steps

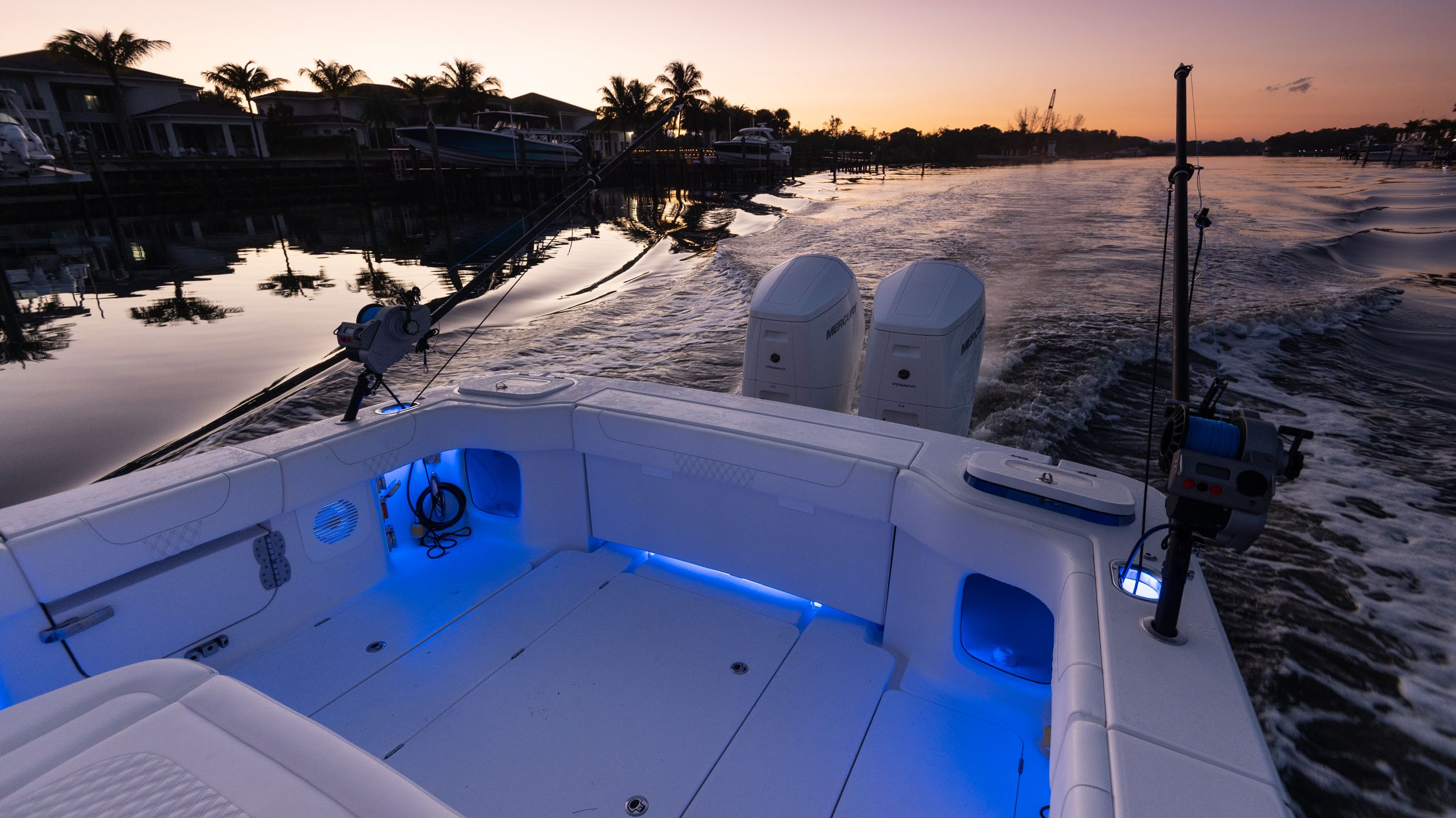

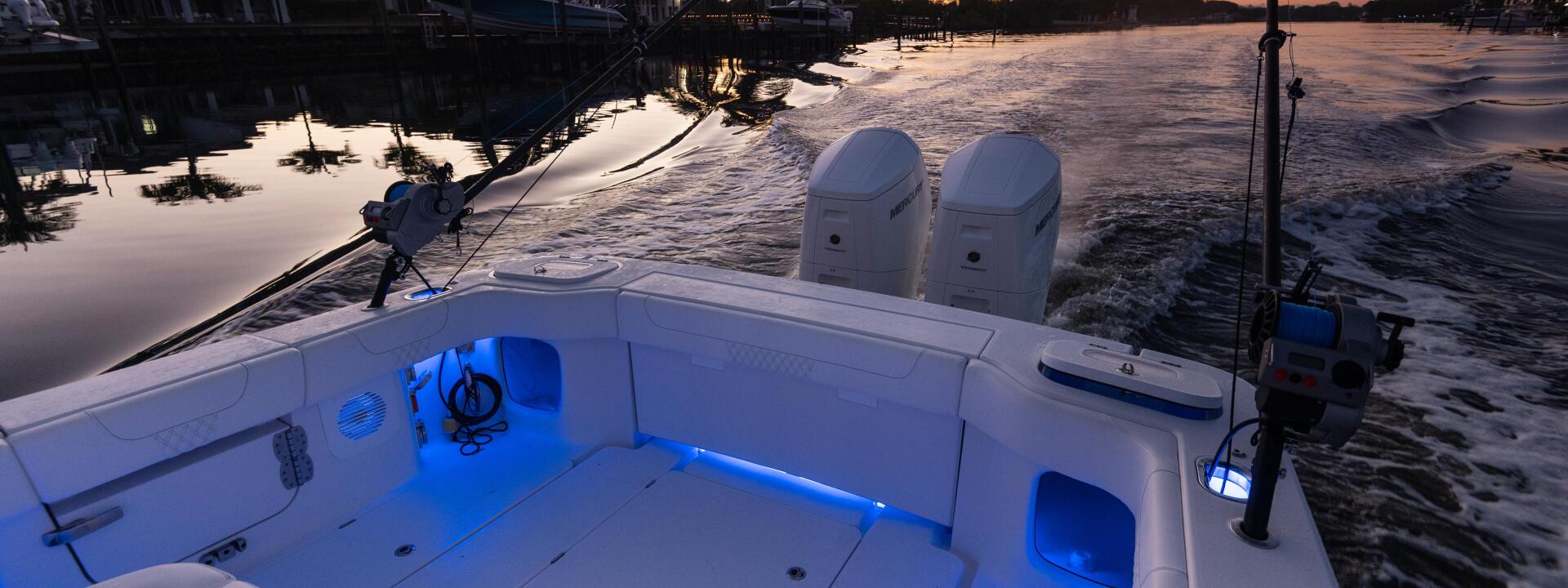

Cockpit RGB Mood Lighting

Lumitec Poco Digital RGB Lighting Controller

All of the RGB lights are controlled by the Lumitec Poco Digital RGB Lighting Controller that power a slew of mirage flush lights on the hard top, 6 RGBW SeaBlaze underwater lights which span from the transom to the steps, side spreader lights, livewells, sea chest pump box and every inch of the deck ring with moray flex lighting with zero hot spots. This interior LED Lighting package brings this cockpit to the next level in style and function.

Electric Anchor Light

Safety lights includes an electric anchor light by Taco marine and integrated Lumitec navigation lights that double up as docking lights.

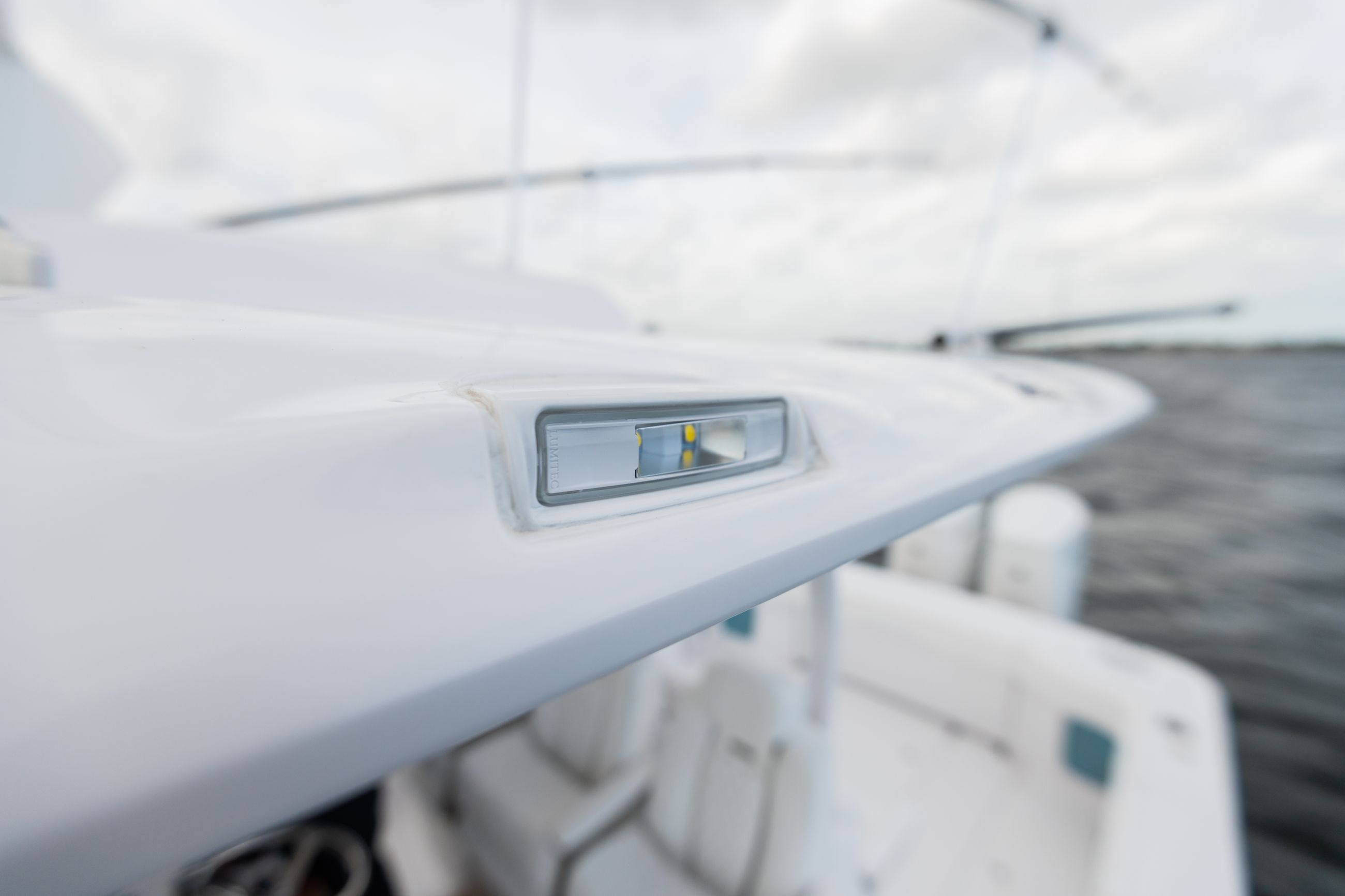

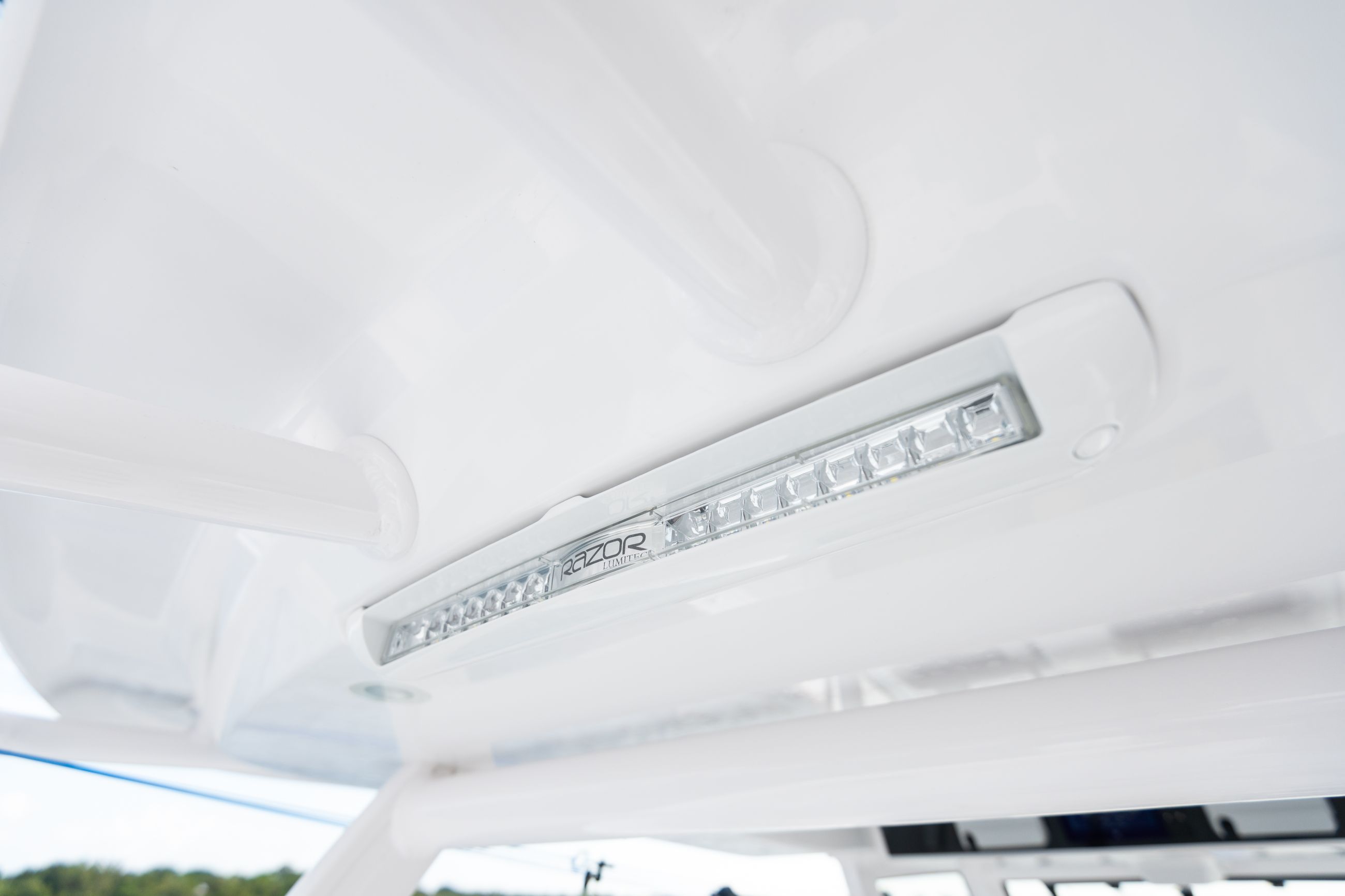

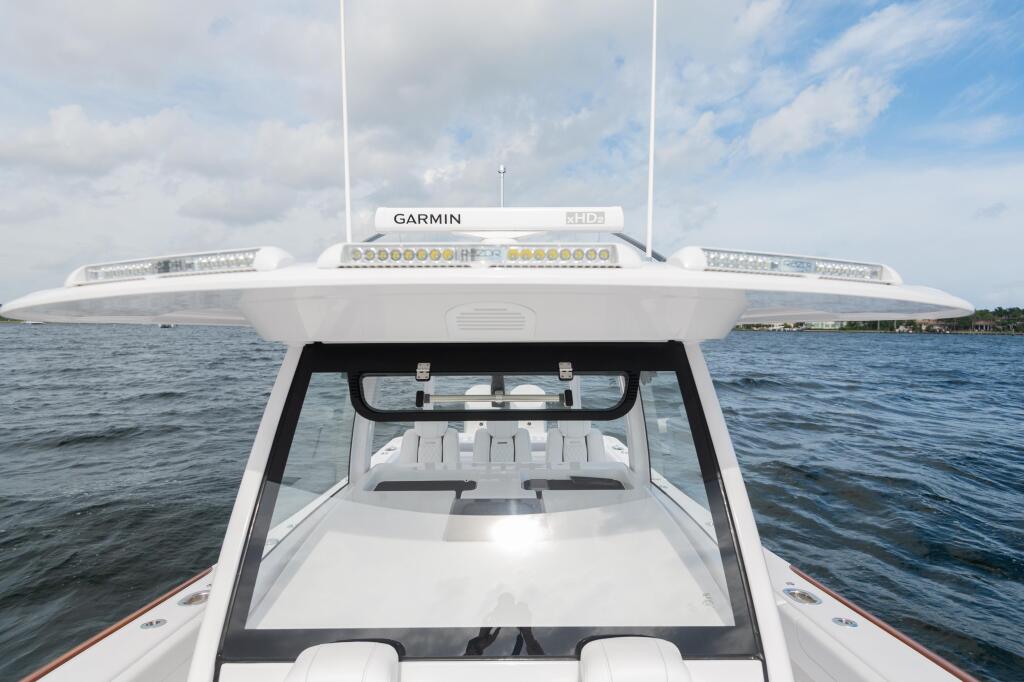

Razor Spreader and Spot Lights

The top is also equipped with an array of razor spreader lights at the front. The center light is a spotlight and the outer two are flood lights. At the back, an additional flood light for the rear cockpit.

Back Razor Spreader Lights

Side Spreader Lights

Throughout the cockpit of the Phenom 37 there are many convenience features and personalizations available to make your time on the water more enjoyable and add unique styling to your boat.
